Digi-Sense 4 Input Data Logging Thermocouple Thermometer, Type K/J with NIST Traceable Calibration - WD-20250-03
Item #:
DS-WD-20250-03
Brand:
Digi-Sense
Share this product:

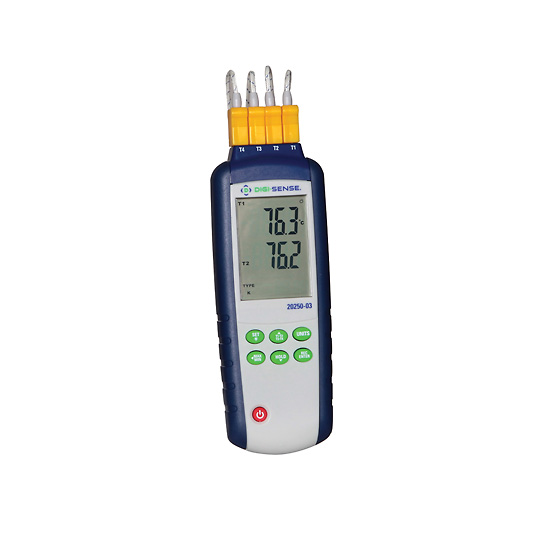

WD-20250-03 4 Input Data Logging Thermocouple Thermometer, Type K/J with NIST Traceable Calibration by Digi-Sense
Handheld thermocouple thermometers provide precise measurements when accuracy is a must, delivering dependable results every time! Each model is packed with distinctive features for use in a wide array of applications.
Features
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- Large backlight LCD for easy viewing in dimly lit conditions
- Minimum, maximum, and average readings, plus data Hold function
- Display of temp differential (except model 20250-01)
- Relative time clock on Min/Max/Avg provides a time reference for major events
- Electronic offset function allows compensation of probe errors to maximize overall accuracy
- User-selectable readout in °C, °F, or Kelvin (K) with 0.1 resolution
- Simple, intuitive setup and operation
- Auto power-off mode extends battery life
- Ergonomic design fits comfortably in your hand
- Data logging models available
- Accept a wide variety of thermocouple probes
Applications
- Agricultural
- Educational
- Food processing
- HVAC
- Industrial
- Laboratory
- R&D
- Preventive maintenance
Thermocouple (T/C) inputs | 4 (type K or J) |
Infrared (IR) input | No |
T/C range | K: –328 to 2501°F (–200 to 1372°C) J: –346 to 2012°F (–210 to 1100°C) |
Resolution | 0.1°F/C below 1000°, 1°F/C above 1000° |
T/C accuracy | Above –148°F (–100°C): ±[0.5% rdg + 1.8°F (1°C)] Below –148°F (–100°C): ±[0.5% rdg + 3.6°F (2°C)] Differentials: ±[0.5% rdg + 3.6°F (2°C)] |
Data logging | 18,000 points |
USB interface | Yes |
Relative time clock | Yes |
Offset compensation | Yes |
Temp differential | Yes |
Data Hold | Yes |
Max/Min/Avg | Yes |
°C, °F, or K units | Yes |
Scan function | No |
Auto power-off | Yes |
Dimensions | 6 1⁄2" x 2 1⁄2" x 1 1⁄8" (16.5 x 6.4 x 2.9 cm) |
Power | Three AAA batteries |
Accessories included | One flexible type K probe (per input), batteries, and NIST-traceable certificate with data and uncertainties |
