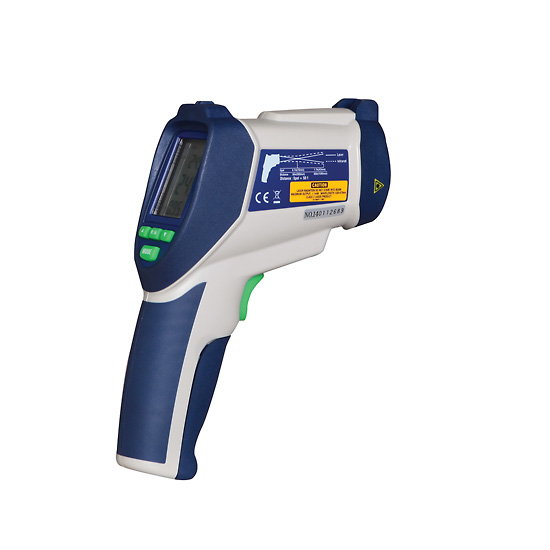

Digi-Sense 50:1 Data Logging IR Thermometer with T/C Input and NIST Traceable Calibration - WD-20250-08
Item #:
DS-WD-20250-08
Brand:
Digi-Sense
Share this product:
WD-20250-08 50:1 Data Logging IR Thermometer with T/C Input and NIST Traceable Calibration by Digi-Sense
Ergonomic pistol-grip infrared (IR) thermometers provide the precision you need for quick and easy temperature measurements. Noncontact meters safely measure the surface temperature of objects without physically touching the object. Simply aim, pull the trigger, and read the display—reliable measurements couldn't be easier!
Features
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- Laser sighting helps target the measuring area
- Large backlight LCD with backlight for easy viewing
- Adjustable emissivity (except model 20250-04)
- Min/Max readings and data Hold function
- User-selectable temperature readout in °C or °F
- Automatic selection range and display resolution
- Trigger lock for continuous scanning of temperatures
- Auto power-off mode extends battery life
- Dual-laser sighting to pinpoint target areas
- Higher distance-to-sight (D/S) ratios for long-distance measurements
- Extended temperature ranges
- Temperature differential and average readings
- USB interface for data transmission to PC
- Heavy-duty construction and protective lens cover
- External type K input for contact measurements
- Internal logging of 100 readings (model 20250-08 only)
Applications
- Agricultural
- Educational
- Food processing
- HVAC
- Industrial
- Laboratory
- R&D
- Preventive maintenance
Distance-to-sight (D/S) ratio | 50:1 |
Temperature range (IR) | –58 to 3362°F (–50 to 1850°C) |
Resolution | 0.1°F/C below 1000°, 1°F/C above 1000° |
Accuracy (IR) | ±5.4°F (3°C) from –58 to 68°F (–50 to 20°C); ±1.0% ± 1.8°F (1°C) from 68 to 932°F (20 to 500°C); ±1.5% ± 3.6°F (2.0°C) from 932 to 1832°F (500 to 1000°C); ±2.0% from 1832 to 3362°F (1000 to 1850°C) |
Response time | <150 ms |
Emissivity | 0.10 to 1.0 adjustable |
Laser (Class II) | Dual |
Min/Max reading | Yes |
Data Hold | Yes |
Avg reading | Yes |
Temp differential | Yes |
High/low alarms | Yes |
USB interface | Yes, unlimited data transmission |
Data logging | Yes, 100 internal readings |
Type K input | Yes, –58 to 2498°F (–50 to 1370°C) |
Dimensions | 7 1⁄2" x 6" x 2 1⁄4" (18.9 x 15.2 x 5.7 cm) |
Power | One 9 V battery |
Accessories included | One type K flexible probe, USB cable, software, tripod, carrying case, battery, and NIST-traceable certificate with data and uncertainties |
