Digi-Sense 30:1 IR Thermometer with T/C Input and NIST Traceable Calibration - WD-20250-07
Item #:
DS-WD-20250-07
Brand:
Digi-Sense
Share this product:

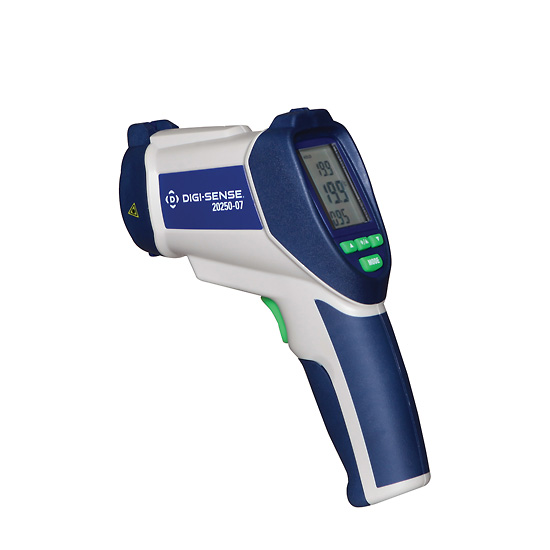

WD-20250-07 30:1 IR Thermometer with T/C Input and NIST Traceable Calibration by Digi-Sense
Ergonomic pistol-grip infrared (IR) thermometers provide the precision you need for quick and easy temperature measurements. Noncontact meters safely measure the surface temperature of objects without physically touching the object. Simply aim, pull the trigger, and read the display—reliable measurements couldn't be easier!
Features
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- Laser sighting helps target the measuring area
- Large backlight LCD with backlight for easy viewing
- Adjustable emissivity (except model 20250-04)
- Min/Max readings and data Hold function
- User-selectable temperature readout in °C or °F
- Automatic selection range and display resolution
- Trigger lock for continuous scanning of temperatures
- Auto power-off mode extends battery life
- Dual-laser sighting to pinpoint target areas
- Higher distance-to-sight (D/S) ratios for long-distance measurements
- Extended temperature ranges
- Temperature differential and average readings
- USB interface for data transmission to PC
- Heavy-duty construction and protective lens cover
- External type K input for contact measurements
- Internal logging of 100 readings (model 20250-08 only)
Applications
- Agricultural
- Educational
- Food processing
- HVAC
- Industrial
- Laboratory
- R&D
- Preventive maintenance
Distance-to-sight (D/S) ratio | 30:1 |
Temperature range (IR) | –58 to 3002°F (–50 to 1650°C) |
Resolution | 0.1°F/C below 1000°, 1°F/C above 1000° |
Accuracy (IR) | ±5.4°F (3°C) from –58 to 68°F (–50 to 20°C); ±1.0% ± 1.8°F (1°C) from 68 to 752°F (20 to 400°C); ±1.5% ± 3.6°F (2.0°C) from 752 to 1472°F (400 to 800°C); ±2.5% from 1472 to 3002°F (800 to 1650°C) |
Response time | <150 ms |
Emissivity | 0.10 to 1.0 adjustable |
Laser (Class II) | Dual |
Min/Max reading | Yes |
Data Hold | Yes |
Avg reading | Yes |
Temp differential | Yes |
High/low alarms | Yes |
USB interface | Yes, unlimited data transmission |
Data logging | No |
Type K input | Yes, –58 to 2498°F (–50 to 1370°C) |
Dimensions | 7 1⁄2" x 6" x 2 1⁄4" (18.9 x 15.2 x 5.7 cm) |
Power | One 9 V battery |
Accessories included | One type K flexible probe, USB cable, software, tripod, carrying case, battery, and NIST-traceable certificate with data and uncertainties |
