Digi-Sense 25 Ohm, Metal SPRT, 6.35 x 500 mm, -200~670C, Spade - 90452-67
Item #:
DS-90452-67
Brand:
Digi-Sense
Share this product:
90452-67 25 Ohm, Metal SPRT, 6.35 x 500 mm, -200~670C, Spade by Digi-Sense
AM1850 and AM1860 Series - Standard platinum resistance thermometer SPRT probes: SPRT's are used to interpolate temperature in the range from -189.3442°C to 660.323°C on the International Temperature Scale of 1990 (ITS-90). They are widely used as standard or reference thermometers to calibrate other thermometers and to measure temperature precisely in primary and secondary laboratories. Digi-Sense SPRTs feature a extremely low drift rate, outstanding stability and repeatability. The AM1850 and AM1860 come with a metal sheath.
Accuracy is dependent on the estimated measurement uncertainty of the calibration service providing the calibration.
Probe is 25 ohms
- Comparable to Fluke Calibration / Hart Scientific Model 5699
Includes

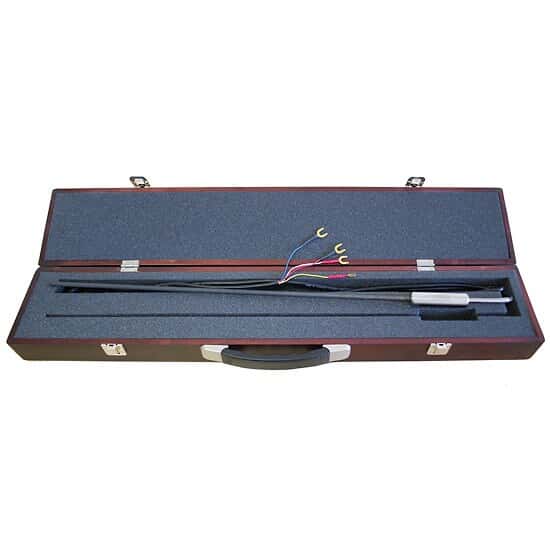

Each SPRT comes with a wood carrying case.
Probe Type | Secondary Reference PRT/RTD |
Min Temperature (° F) | -328 |
Max Temperature (° F) | 1238 |
Min Temperature (° C) | -200 |
Max Temperature (° C) | 670 |
Temperature Accuracy | ±0.003°C/100 hr at 0°C |
Response Time (Sec) | 9 |
Connector Type | Spade Lugs |
Sheath Length (in) | 20 |
Sheath Diameter (in) | 0.25 |
Description | 25 Ohm, Metal SPRT, 6.35 x 500 mm, -200~670C, Spade |
