Digi-Sense 25 Ohm, Metal SPRT, 6.35x480 mm, -200~500C, Spade - 90452-65

Item #:
DS-90452-65
Brand:
Digi-Sense
Digi-Sense 25 Ohm, Metal SPRT, 6.35x480 mm, -200~500C, Spade - 90452-65
$3,341.10
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense 25 Ohm, Metal SPRT, 6.35x480 mm, -200~500C, Spade - 90452-65

Digi-Sense 25 Ohm, Metal SPRT, 6.35x480 mm, -200~500C, Spade - 90452-65

$3,341.10

90452-65 25 Ohm, Metal SPRT, 6.35x480 mm, -200~500C, Spade by Digi-Sense

AM1850 and AM1860 Series - Standard platinum resistance thermometer SPRT probes: SPRT's are used to interpolate temperature in the range from -189.3442°C to 660.323°C on the International Temperature Scale of 1990 (ITS-90). They are widely used as standard or reference thermometers to calibrate other thermometers and to measure temperature precisely in primary and secondary laboratories. Digi-Sense SPRTs feature a extremely low drift rate, outstanding stability and repeatability. The AM1850 and AM1860 come with a metal sheath.

Accuracy is dependent on the estimated measurement uncertainty of the calibration service providing the calibration.

Probe is 25 ohms

  • Comparable to Fluke Calibration / Hart Scientific Model 5699

Includes

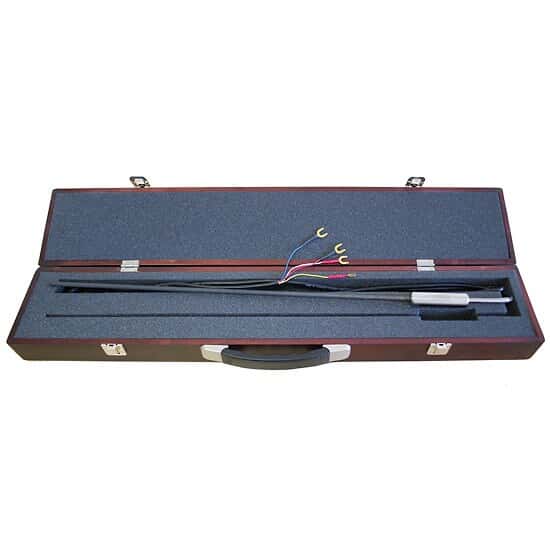

Each SPRT comes with a wood carrying case.

Probe Type Secondary Reference PRT/RTD
Min Temperature (° F) -328
Max Temperature (° F) 932
Min Temperature (° C) -200
Max Temperature (° C) 500
Temperature Accuracy ±0.002°C/100 hr at 0°C
Response Time (Sec) 9
Connector Type Spade Lugs
Sheath Length (in) 19
Sheath Diameter (in) 0.25
Description 25 Ohm, Metal SPRT, 6.35x480 mm, -200~500C, Spade
