Pt100 Sensor Portable Thermometers

HD2307.0 Pt100 Sensor Portable Thermometer with Large LCD Display by Delta OHM

HD2307.0 is a portable instrument equipped with large LCD display. It measures temperature by means of immersion, penetration, contact or air probes. Its sensor can be 3 or 4 wires Pt100, Pt1000. Probes are equipped with an automatic recognition module: factory calibration data are stored inside. The Max, Min and Avg function calculate the maximum, minimum or average values. Other functions include: the relative measurement REL, the HOLD function, and the automatic switching-off system, excludable. The instrument has IP67 protection degree.

HD2107.1 Pt100 Sensor Portable Thermometer with Large LCD Display by Delta OHM

HD2107.1 and l’HD2107.2 are portable instruments equipped with large LCD display fitted with one input. HD2127.1 and HD2127.2 are instruments fitted with two inputs. They measure temperature by means of immersion, penetration, contact or air probes. Their sensor can be Pt100 with 3 or 4 wires, Pt1000 with 2 wires. They have centesimal resolution in the range ± 199.99°C, decimal in the rest of the range.

Probes are equipped with an automatic recognition module: factory calibration data are stored inside.

The instruments HD2107.2 and HD2127.2 are data loggers; they store up to 80.000 samples which can be transferred into a PC connected to the instrument through the serial ports RS232C and USB 2.0. It is possible to configure the storage interval, the printing and the baud rate by the menu.

All models are equipped with RS232C serial port and are able to transfer the acquired measures, in real time, to a PC or a portable printer.

Functions Max, Min and Avg calculate maximum, minimum and average values.

Further functions are: REL relative measure, HOLD and automatic switching-off system, excludable.

Instruments have IP66 protection degree.

HD2107.2 Pt100 Sensor Portable Thermometer with Large LCD Display by Delta OHM

HD2107.1 and l’HD2107.2 are portable instruments equipped with large LCD display fitted with one input. HD2127.1 and HD2127.2 are instruments fitted with two inputs. They measure temperature by means of immersion, penetration, contact or air probes. Their sensor can be Pt100 with 3 or 4 wires, Pt1000 with 2 wires. They have centesimal resolution in the range ± 199.99°C, decimal in the rest of the range.

Probes are equipped with an automatic recognition module: factory calibration data are stored inside.

The instruments HD2107.2 and HD2127.2 are data loggers; they store up to 80.000 samples which can be transferred into a PC connected to the instrument through the serial ports RS232C and USB 2.0. It is possible to configure the storage interval, the printing and the baud rate by the menu.

All models are equipped with RS232C serial port and are able to transfer the acquired measures, in real time, to a PC or a portable printer.

Functions Max, Min and Avg calculate maximum, minimum and average values.

Further functions are: REL relative measure, HOLD and automatic switching-off system, excludable.

Instruments have IP66 protection degree.

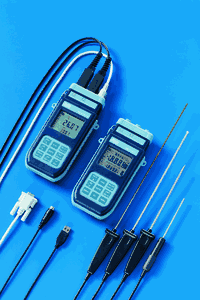

HD2127.1 Pt100 Sensor Portable Thermometer with Large LCD Display by Delta OHM

HD2107.1 and l’HD2107.2 are portable instruments equipped with large LCD display fitted with one input. HD2127.1 and HD2127.2 are instruments fitted with two inputs. They measure temperature by means of immersion, penetration, contact or air probes. Their sensor can be Pt100 with 3 or 4 wires, Pt1000 with 2 wires. They have centesimal resolution in the range ± 199.99°C, decimal in the rest of the range.

Probes are equipped with an automatic recognition module: factory calibration data are stored inside.

The instruments HD2107.2 and HD2127.2 are data loggers; they store up to 80.000 samples which can be transferred into a PC connected to the instrument through the serial ports RS232C and USB 2.0. It is possible to configure the storage interval, the printing and the baud rate by the menu.

All models are equipped with RS232C serial port and are able to transfer the acquired measures, in real time, to a PC or a portable printer.

Functions Max, Min and Avg calculate maximum, minimum and average values.

Further functions are: REL relative measure, HOLD and automatic switching-off system, excludable.

Instruments have IP66 protection degree.

HD2127.2 Pt100 Sensor Portable Thermometer with Large LCD Display by Delta OHM

HD2107.1 and l’HD2107.2 are portable instruments equipped with large LCD display fitted with one input. HD2127.1 and HD2127.2 are instruments fitted with two inputs. They measure temperature by means of immersion, penetration, contact or air probes. Their sensor can be Pt100 with 3 or 4 wires, Pt1000 with 2 wires. They have centesimal resolution in the range ± 199.99°C, decimal in the rest of the range.

Probes are equipped with an automatic recognition module: factory calibration data are stored inside.

The instruments HD2107.2 and HD2127.2 are data loggers; they store up to 80.000 samples which can be transferred into a PC connected to the instrument through the serial ports RS232C and USB 2.0. It is possible to configure the storage interval, the printing and the baud rate by the menu.

All models are equipped with RS232C serial port and are able to transfer the acquired measures, in real time, to a PC or a portable printer.

Functions Max, Min and Avg calculate maximum, minimum and average values.

Further functions are: REL relative measure, HOLD and automatic switching-off system, excludable.

Instruments have IP66 protection degree.

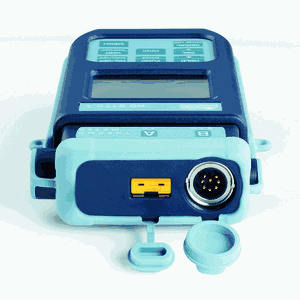

HD2178.1 Pt100 Sensor and TC Input Portable Thermometer with Large LCD Display by Delta OHM

HD2178.1 and HD2178.2 are portable instruments with a large LCD display. These instruments measure temperature by means of immersion, penetration, contact or air probes with Pt100 or thermocouple probes. You can connect a 3 or 4 wires Pt100 sensor or a 2 wires Pt1000 sensor to B input, a K, J, T, N, E type thermocouple to input A. Probes to B input, a 8-poles DIN45326 connector, are equipped with an automatic detection module, with the factory calibration settings already being memorized inside. A input is equipped with a miniature female polarized connector for thermocouple probes. The instrument HD2178.2 is a data logger; it stores up to 80.000 samples that can be transferred to a PC when connected to the instrument through a RS232C serial port or a USB 2.0 port. It is possible to configure the storage interval, the printing and the baud rate by the menu. All models are equipped with RS232C serial port and are able to transfer the acquired measures, in real time, to a PC or a portable printer. Functions Max, Min and Avg calculate maximum, minimum and average values. Further functions are: REL relative measure, HOLD and automatic switching-off system, excludable.

HD2178.2 Pt100 Sensor and TC Input Portable Thermometer with Large LCD Display by Delta OHM

HD2178.1 and HD2178.2 are portable instruments with a large LCD display. These instruments measure temperature by means of immersion, penetration, contact or air probes with Pt100 or thermocouple probes. You can connect a 3 or 4 wires Pt100 sensor or a 2 wires Pt1000 sensor to B input, a K, J, T, N, E type thermocouple to input A. Probes to B input, a 8-poles DIN45326 connector, are equipped with an automatic detection module, with the factory calibration settings already being memorized inside. A input is equipped with a miniature female polarized connector for thermocouple probes. The instrument HD2178.2 is a data logger; it stores up to 80.000 samples that can be transferred to a PC when connected to the instrument through a RS232C serial port or a USB 2.0 port. It is possible to configure the storage interval, the printing and the baud rate by the menu. All models are equipped with RS232C serial port and are able to transfer the acquired measures, in real time, to a PC or a portable printer. Functions Max, Min and Avg calculate maximum, minimum and average values. Further functions are: REL relative measure, HOLD and automatic switching-off system, excludable.

DeltaLog 9 Software by Delta OHM

This software is only for the following instrument:

• Portable instrument HD 2101.1 - 2101.2
• Portable instrument HD 2102.1 - 2102.2
• Portable instrument HD 2103.1 - 2103.2
• Portable instrument HD 2105.1 - 2105.2
• Portable instrument HD 2106.1 - 2106.2
• Portable instrument HD 2107.1 - 2107.2
• Portable instrument HD 2108.1 - 2108.2 - HD 2128.0 - 2128.2
• Portable instrument HD 2109.1 - 2109.2
• Portable instrument HD 2114.0 - 2114.2 - HD 2134.0 - 2134.2 HD 2164.0 - 2164.2 - HD 2114.0 - 2114.2 - HD 2114B.0 - 2114B.2
• Portable instrument HD 2127.1 - 2127.2
• Portable instrument HD 2114P.0 - 2114P.2 - HD 2134P.0 - 2134P.2
• Portable instrument HD 2156.1 - 2156.2
• Portable instrument HD 2178.1 - 2178.2
• Portable instrument HD 32.7
• Portable instrument HD 32.8 - HD32.16
• Bench Top instrument HD34xx.2 Series

The cable has a built-in USB/RS232 converter and connects the instruments HD2107.1, HD2127.1 e HD2178.1 directly to the PC USB port.

MiniDin 8 poles - 9 poles sub D female connecting cable per RS232C for instruments HD2108.1, HD2108.2, HD2128.1, HD2128.2, HD2178.1, HD2178.2

PC connecting cable with male mini-USB connector on instrument side and male A type USB connector on PC side. For instruments HD2107.2, HD2127.2, HD2178.2

HD 40.1 24-Column Portable Thermal Printer by Delta OHM

The HD40.1 and HD40.2 are lightweight, compact, portable thermal printers.
The HD40.1 is connected to instruments or PC through the RS232 serial input.
The HD40.2 features a dual mode data reception system - RS232 serial and Bluetooth.

The Bluetooth wireless connection makes the HD40.2 printer very useful "in the field", since it does not require any connection to the instrument. A careful design allows you to replace the thermal paper roll in a few seconds. A four NiMH rechargeable battery pack provides power supply and ensures long autonomy: you can print up to 3000 lines at full charge.

• Standard thermal paper roll width: 57mm.
• Print resolution: 203 dpi
• Print characters (each line): 24
• Protection degree: IP40.

Spare Battery Pack for HD40.1 Printer with Built-in Temperature Sensor

RCT Themal Paper Roll Kit by Delta OHM

The kit includes 4 thermal paper rolls 57mm wide and 32mm in diameter.

Stabilized Power Supply 100-240 VAC/12VDC-1A Mains Voltage

HD2047 Pt100 Testing Module by Delta OHM

Simulates 24 fixed values of a Pt100 sensor in the range –100°C .. +500 °C. Displays ohm, mA or mV. Reading and measuring range: mV is ±20Vdc, mA is 0...22 mA.

Designed to test the transmitters for use on the field and to calibrate the configurable temperature transmitters.
