Delta OHM 24-Column Portable Thermal Printer - HD 40.1
Item #:
DLTOHM-HD40-1
Brand:
Delta OHM
Share this product:

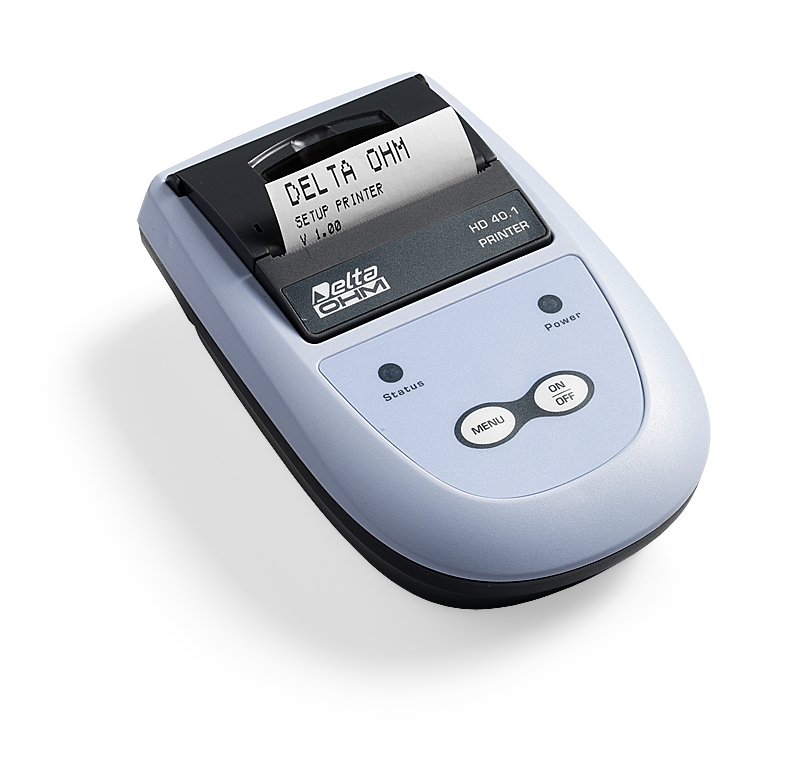

HD 40.1 24-Column Portable Thermal Printer by Delta OHM
The HD40.1 and HD40.2 are lightweight, compact, portable thermal printers.
The HD40.1 is connected to instruments or PC through the RS232 serial input.
The HD40.2 features a dual mode data reception system - RS232 serial and Bluetooth.
The Bluetooth wireless connection makes the HD40.2 printer very useful "in the field", since it does not require any connection to the instrument. A careful design allows you to replace the thermal paper roll in a few seconds. A four NiMH rechargeable battery pack provides power supply and ensures long autonomy: you can print up to 3000 lines at full charge.
- Standard thermal paper roll width: 57mm.
- Print resolution: 203 dpi
- Print characters (each line): 24
- Protection degree: IP40.
| Printing method | Thermal |
| Resolution | 203 DPI (8 dot/mm) |
| Printing width | 48mm centered in the paper roll |
| Paper roll width | 57mm ... 58mm |
| Max. paper roll diameter | 32mm |
| Number of columns | 24 |
| Printing speed | Up to 90 mm/sec (depending on battery charge and ambient conditions) |
| Sensors | Paper detection |
| Character set | IBM II 858 table |
| Printing formats | Normal or extended |
| Character font | 1 (16 x 24 dot – 2mm x 3mm) |
| Thermal head durability | Mechanism life: 100 million pulses (temperature: 20...25°C) Abrasion resistance: 50km of paper (temperature: 20...25°C) Cover group durability: 2000 opening/closing cycles or more |
| Communication interfaces | RS232 |
| Bluetooth (for HD40.2) | RS232 Baud rate: 9600, 19200 and 38400 baud (the factory parameter is 38400 baud) Bluetooth Baud rate: 38400 baud (for HD40.2) Bluetooth operating distance: Up to 10m without hindrance (for HD40.2) |
| Mains power supply | (cod. SWD10): 100-240Vac/12Vdc-1A mains battery charger Batteries: Four 1.2V AA rechargeable batteries (NiMH) Printing autonomy: 3000 lines 24 characters each. It prints one line every 10 seconds Switch-off function: 0, 5, 10 or 15 minutes Dimensions: 105mm x 165mm x 53mm Weight: 380g (with batteries and paper roll) Material: ABS |
| Operating conditions | Operating temperature: 0°C ... 50°C Operating relative humidity: 20%RH ... 85%RH not condensing Storage Temperature / Relative humidity: -25°C ... +70°C / 10%RH ... 90%RH not condensing Protection degree: IP40 |
| Connections | Serial interface: 9-pole D sub male connector Battery charger power supply (cod. SWD10): 2-pole connector (positive in the middle) |
