Agrowtek DXO8 DC 8-Output Module

DXO8 DC 8-Output Module by Agrowtek

DXO8 digital control interface features eight (8) 1-Amp transistor (FET) outputs. Ideal for operating relays & contactors in panels, DC powered solenoid and irrigation valves, etc. Six (6) of the outputs are capable of 1kHz PWM functions for integration with dimmable lighting and variable speed motor controllers.

Connects instantly to Agrowtek's master control systems or intelligent sensors via a GrowNET port for advanced automated control functions. GrowNET port accepts MODBUS RTU communication for PLC control.

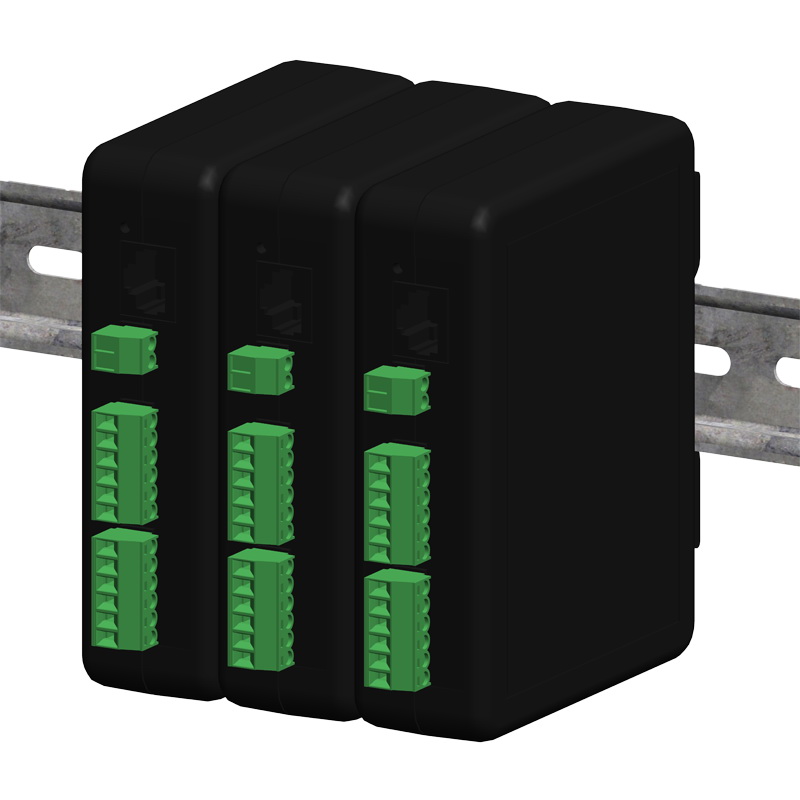

LED indicators on the front panel provide status of power supply and data communications. Designed for DIN rail mounting in control cabinets.

UL Listing pending.

Features

• Eight (8) 1-Amp Transistor Outputs
• Six (6) PWM Channels 10-90% @1kHz
• Built-In Flyback & Transient Suppression on FET outputs
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC applications 9-24Vdc, DIN rail mount
• Made in USA
• 1-Year Warranty

Applications

• Irrigation Solenoid Valves
• Relay Control Load control in buildings & greenhouses
• Custom Equipment & Sensors
• Variable Speed Fans & Motors
