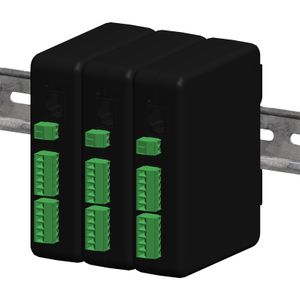

DX Intelligent DIN-Rail I/O Modules

DXO8 DC 8-Output Module by Agrowtek

DXO8 digital control interface features eight (8) 1-Amp transistor (FET) outputs. Ideal for operating relays & contactors in panels, DC powered solenoid and irrigation valves, etc. Six (6) of the outputs are capable of 1kHz PWM functions for integration with dimmable lighting and variable speed motor controllers.

Connects instantly to Agrowtek's master control systems or intelligent sensors via a GrowNET port for advanced automated control functions. GrowNET port accepts MODBUS RTU communication for PLC control.

LED indicators on the front panel provide status of power supply and data communications. Designed for DIN rail mounting in control cabinets.

UL Listing pending.

Features

• Eight (8) 1-Amp Transistor Outputs
• Six (6) PWM Channels 10-90% @1kHz
• Built-In Flyback & Transient Suppression on FET outputs
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC applications 9-24Vdc, DIN rail mount
• Made in USA
• 1-Year Warranty

Applications

• Irrigation Solenoid Valves
• Relay Control Load control in buildings & greenhouses
• Custom Equipment & Sensors
• Variable Speed Fans & Motors

DXR6 Dry-Contact 6-Output Relay Module by Agrowtek

DXR6 digital control interface features six (6) 1-Amp dry-contact relay outputs rated 30Vac/Vdc. Ideal for interfacing with 24Vac control signals for HVAC, dehumidifiers, and other mixed voltage control signals.

Connects instantly to Agrowtek's master control systems or intelligent sensors via a GrowNET port for advanced automated control functions. GrowNET port accepts MODBUS RTU communication for PLC control.

LED indicators on the front panel provide status of power supply and data communications. Designed for DIN rail mounting in control cabinets.

Features

• Six (6) 1-Amp Dry Contact Relay Outputs
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC applications 9-24Vdc, DIN rail mount
• Made in USA
• 1-Year Warranty

Applications

• HVAC Systems 24Vac heat, cool, fan, valve & other signals
• Dehumidifiers
• Custom Equipment
• Irrigation Solenoid Valves

DXIO Mixed I/O Module by Agrowtek

DXIO digital control interface features up to two (2) 10A NO/NC relay contacts, two (2) 1-Amp transistor (FET) outputs capable of 1kHz PWM, and two (2) analog inputs selectable for 0-5V or 0/4-20mA. Ideal for operating DC powered solenoid and irrigation valves, relays & contactors, etc. PWM functions for integration with dimmable lighting or variable speed motor controllers. Analog inputs allow SXL liquid sensor connectivity and other third-party 0-5V or 0/4-20mA sensors.

Connects instantly to Agrowtek's master control systems or intelligent sensors via a GrowNET port for advanced automated control functions. GrowNET port accepts MODBUS RTU communication for PLC control.

LED indicators on the front panel provide status of power supply and data communications. Designed for DIN rail mounting in control cabinets. UL Listing pending

Features

• Two (2) 1-Amp Transistor Outputs with 10-90% 1kHz PWM
• Two (2) 10-Amp NO/NC Form C Relays
• Two (2) 0-5V or 0/4-20mA Analog Inputs
• PWM Capable Transistor Outputs
• Built-In Flyback & Transient Suppression on FET outputs
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC applications 9-24Vdc, DIN rail mount
• Made in USA
• 1-Year Warranty

Applications

• Irrigation Solenoid Valves
• Relay Control Load control in buildings & greenhouses
• Custom Equipment & Sensors
• Variable Speed Fans & Motors

DXV4 Dimming Controller, 0-10V Output Module by Agrowtek

GrowControl™ DXV4 modules for DIN rail feature four (4) 0-10V analog outputs for dimming lighting zones and other analog control. Dim up to 50 light fixtures per output channel.

DX series modules can be operated on 12-24Vdc. DXV4 modules perform with the highest accuracy on 24Vdc.

GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.

Features

• 0-10V (11V max) DC Outputs
• Drive up to 50 Fixtures per Channel
• Digital Control, MODBUS Addressable
• Made in USA

Applications

• Greenhouses & Growing Facilities
• Building Automation
• Industrial Automation
• OEM & Custom Applications

DXI8 DC 8-Input Module by Agrowtek

DXI8 digital control interface features eight (8) analog inputs selectable for 0-5V or 0/4-20mA. Analog inputs third-party analog 5V or current-loop sensor integration, as well as discrete sensor detection for SXL liquid sensors, float switches, and other dry-contact type sensors. On-board 500mA 5Vdc power supply provides stable power for analog or discrete sensing applications.

Connects instantly to Agrowtek's master control systems or intelligent sensors via a GrowNET port for advanced automated control functions. GrowNET port accepts MODBUS RTU communication for PLC control.

LED indicators on the front panel provide status of power supply and data communications. Designed for DIN rail mounting in control cabinets.

UL Listing pending.

Features

• Eight (8) 0-5Vdc Analog Inputs
• All Channels 0/4-20mA Selectable
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC applications 9-24Vdc, DIN rail mount
• Made in USA
• 1-Year Warranty

Applications

• Soil Moisture Sensors
• Industrial Sensors 0-5V or 4-20mA
• Discrete Sensor Inputs Float Switches, Door Sensors, etc.
• SXL Optical Liquid Sensors Automate Drain/Fill with GCX System
