Testo 6381 Differential Pressure Transmitter with optional T/RH- standard housing metal
Item #:
XXYY-0555-6381
Brand:
Testo
Share this product:

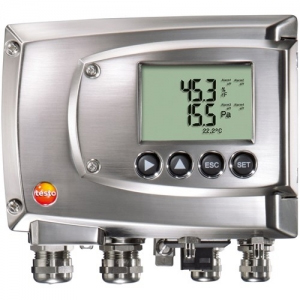

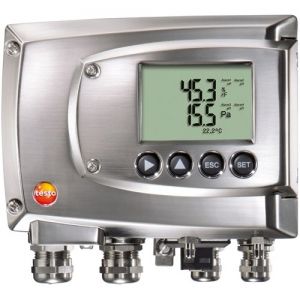

6381 Differential Pressure Transmitter with optional T/RH- standard housing metal by Testo
The differential pressure transmitter testo 6381 was developed specially for monitoring differential pressure in the measuring range from 10 Pa to 1000 hPa. In cleanroom technology, the maintenance of positive pressure prevents the entry of contaminated air. In addition to this, the flow velocity or the volume flow can be calculated from the measurement of the differential pressure in a Pitot tube. Thanks to an optional probe from the probe series 6610, the additional recording of humidity and temperature with one instrument is also possible.
The testo 6381 is particularly outstanding thanks to the automatioc zero-point adjustment which ensures high accuracy and long-term stability.
The integrated self-monitoring and early warning function also guarantees the operator high system availability.
- Measurement of differential pressure, flow velocity, volume flow; optional: humidity and temperature
- Automatic zero-point adjustment guarantees high, temperature-independent accuracy and long-term stability
- Low measurement range up to 10 Pa ensures very high precision at lowest pressures
- Ethernet, relay and analog outputs allow optimum integration into individual automation systems
- The P2A software for parameterization, adjustment and analysis saves time and costs in commissioning and maintenance
- Configurable alarm management with adjustable response delay and alarm acknowledgement
Parameters |
|||
| Differential pressure | |||
| Measuring range | 0 to 10 Pa | -10 to 10 Pa | |
| 0 to 50 Pa | -50 to 50 Pa | ||
| 0 to 100 Pa | -100 to 100 Pa | ||
| 0 to 500 Pa | -500 to 500 Pa | ||
| 0 to 10 hPa | -10 to 10 hPa | ||
| 0 to 50 hPa | -50 to 50 hPa | ||
| 0 to 100 hPa | -100 to 100 hPa | ||
| 0 to 500 hPa | -500 to 500 hPa | ||
| 0 to 1000 hPa | -1000 to 1000 hPa | ||
| Measurement uncertainty | ±0.5% of measurement range final
value
±0.3 Pa Temperature gain drift: 0.02% of measuring range per Kelvin deviaton from nominal temperature 22 °C Zero point drift: 0% (thanks to cyclic zero-point adjustment) |
||
| Selectable units | Differential pressure in Pa, hPa, kPa,
mbar, bar, mmH2O, kg/cm2, PSI, inch
HG, inch H2O Calculated variables: volume flow in m3/h, l/min, Nm3/h, Nl/min Flow velocity in m/s, ft/min |
||
| Sensor | Piezoresistive sensor | ||
| Autom. Zero-point adjustment | via magnetic valve Frequency adjustable: 15 sec, 30 sec, 1 min, 5 min, 10 min |
||
| Overload capacity | Measuring range | Overload | |
| 0 to 10 Pa | 20000 Pa | ||
| 0 to 50 Pa | 20000 Pa | ||
| 0 to 100 Pa | 20000 Pa | ||
| 0 to 500 Pa | 20000 Pa | ||
| 0 to 10 hPa | 200 hPa | ||
| 0 to 50 hPa | 750 hPa | ||
| 0 to 100 hPa | 750 hPa | ||
| 0 to 500 hPa | 2500 hPa | ||
| 0 to 1000 hPa | 2500 hPa | ||
| -10 to 10 Pa | 20000 Pa | ||
| -50 to 50 Pa | 20000 Pa | ||
| -100 to 100 Pa | 20000 Pa | ||
| -500 to 500 Pa | 20000 Pa | ||
| -10 to 10 hPa | 200 hPa | ||
| -50 to 50 hPa | 750 hPa | ||
| -100 to 100 hPa | 750 hPa | ||
| -500 to 500 hPa | 2500 hPa | ||
| -1000 to 1000 hPa | 2500 hPa | ||
Inputs/outputs |
|||
| Analog outputs | |||
| Quantity | 1 | ||
| Output type | 0/4 to 20 mA (4-wire) (24 VAC/DC) 0 to 1/5 to 10 V (4-wire) (24 VAC/DC) |
||
| Scaling | Differential pressure: scalable ±50% of measuring range final value; freely scalable within measuring range | ||
| Meas. cycle | 1/sec | ||
| Resolution | 12 bit | ||
| Max. load | max. 500 Ω | ||
| Other outputs | |||
| Ethernet | Optional | ||
| Relay | Optional: 4 relays (free allocation to measurement channel or as collective alarm in operating menu/P2A), up to 250 VAC/3A (NO or NC) | ||
| Digital | Mini-DIN for P2A software | ||
| Supply | |||
| Voltage supply | 20 to 30 VAC/DC, 300 mA current consumption, galvanically separate signal and supply line | ||
General technical data |
|||
| Model | |||
| Material | Plastic housing | ||
| Dimensions | 162 x 122 x 77 mm | ||
| Weight | 1.96 kg; optional: Ethernet intermediary layer 0.61 kg | ||
| Display | |||
| Display |
Optional: 3-line LCD with multi-language operating menu | ||
| Resolution |
Measuring range | Resolution | |
| 0 to 10 Pa | 20000 Pa | ||
| 0 to 50 Pa | 20000 Pa | ||
| 0 to 100 Pa | 20000 Pa | ||
| 0 to 500 Pa | 20000 Pa | ||
| 0 to 10 hPa | 200 hPa | ||
| 0 to 50 hPa | 750 hPa | ||
| 0 to 100 hPa | 750 hPa | ||
| 0 to 500 hPa | 2500 hPa | ||
| 0 to 1000 hPa | 2500 hPa | ||
| -10 to 10 Pa | 20000 Pa | ||
| -50 to 50 Pa | 20000 Pa | ||
| -100 to 100 Pa | 20000 Pa | ||
| -500 to 500 Pa | 20000 Pa | ||
| -10 to 10 hPa | 200 hPa | ||
| -50 to 50 hPa | 750 hPa | ||
| -100 to 100 hPa | 750 hPa | ||
| -500 to 500 hPa | 2500 hPa | ||
| -1000 to 1000 hPa | 2500 hPa | ||
| Humidity | 0.1 %RH | ||
| Temperature | 0.01 °C / 0.01 °F | ||
| Miscellaneous | |||
| Protection class | IP 65 | ||
| EMC | EU guideline 2004/108/EC | ||
| Connection nipple | Ø 6 mm --> suitable hoses 4 mm + 4.8 mm | ||
| Operating conditions | |||
| Operating temperature | -5 to +50 °C / +23 to +122 °F | ||
| Storage temperature | -20 to +60 °C / -4 to +140 °F | ||
| Process temperature | -20 to +65 °C / -4 to +149 °F | ||
