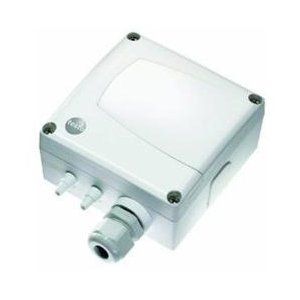

Testo 6321 Differential Pressure Transmitter - base unit, standard housing plastic
Item #:
XXYY-0555-6321
Brand:
Testo
Share this product:
6321 Differential Pressure Transmitter - base unit, standard housing plastic by Testo
A differential pressure transmitter with a good price/performance ratio for applications in air conditioning and ventilation technology. The automated building services must always be monitored precisely, whereby the requirements placed on the measuring technology are increased. testo 6321 fulfills these requirements by ensuring the best possible system function, optimization of the climatic conditions and energy savings by means of highly accurate measurement, stable over the long-term, of the differential pressure.
Areas of application:
- Industrial and commercial buildings, e.g. in production and storage
- Offices and administrational buildings
- Sales areas and exhibition halls
- Museums and libraries
- School buildings, hotels, clinics etc.
- Measurement of differential pressure in the measuring range of 100 Pa to 2 bar
- Magnetic valve for automatic zero-point adjustment guarantees high temperature-independent accuracy and long-term stability
- Accuracy ±1.2 % of measuring range + intrinsic error of 0.3 Pa – valid for zeroing cycle of 60 sec/nominal temperature +22 °C
- P2A software for parameterization, adjustment and analysis, saves time and costs in commissioning and maintenance
- Freely scalable: ±50% of measuring range final value and free scalability within the measuring range
- Diverse analog outputs and measuring ranges
- Display optional
Parameters |
|||
| Differential pressure | |||
| Measuring range | 0 to 100 Pa | -100 to 100 Pa | |
| 0 to 10 hPa | -10 to 10 hPa | ||
| 0 to 20 hPa | -20 to 20 hPa | ||
| 0 to 50 hPa | -50 to 50 hPa | ||
| 0 to 100 hPa | -100 to 100 hPa | ||
| 0 to 500 hPa | -500 to 500 hPa | ||
| 0 to 1000 hPa | -1000 to 1000 hPa | ||
| 0 to 2000 hPa | -2000 to 2000 hPa | ||
| Measurement uncertainty | ±1.2% of measuring range final value ±0.3
Pa Temperature gain drift: 0.05% of measuring range per Kelvin deviation from nominal temperature 22 °C Zero-point drift: 0% (due to cyclic zeropoint adjustment) |
||
| Sensor | Piezoresistive sensor | ||
| Autom. Zero-point adjustment | a magnetic valve | ||
| Overload capacity | Measuring range | Overload | |
| 0 to 100 Pa | 20000 Pa | ||
| 0 to 10 hPa | 200 hPa | ||
| 0 to 20 hPa | 200 hPa | ||
| 0 to 50 hPa | 750 hPa | ||
| 0 to 100 hPa | 750 hPa | ||
| 0 to 500 hPa | 2500 hPa | ||
| 0 to 1000 hPa | 2500 hPa | ||
| 0 to 2000 hPa | 2500 hPa | ||
| -100 to 100 Pa | 20000 Pa | ||
| -10 to 10 hPa | 200 hPa | ||
| -20 to 20 hPa | 200 hPa | ||
| -50 to 50 hPa | 750 hPa | ||
| -100 to 100 hPa | 750 hPa | ||
| -500 to 500 hPa | 2500 hPa | ||
| -1000 to 1000 hPa | 2500 hPa | ||
| -2000 to 2000 hPa | 2500 hPa | ||
Inputs/outputs |
|||
| Analog outputs | |||
| Output type | 0 to 1/5/10 V (4-wire) 4 to 20 mA (4-wire) |
||
| Meas. cycle | 1/sec | ||
| Resolution | 12 bit | ||
| Accuracy of analog outputs | 0 to 1 V ±2,5 mV 0 to 5 V ±12.5 mV 0 to 10 V ±25 mV 4 to 20 mA ±0.05 mA |
||
| Max. load | max. 500 Ω | ||
| Additional outputs | |||
| Other analog outputs | Mini-DIN for P2A software (adjustment and parameterization software) | ||
| Supply | |||
| Voltage supply | 20 to 30 V AC/DC | ||
| Current consumption | 300 mA | ||
| Operating conditions | |||
| Humidity (sensors) | 0 to 90% RH | ||
| Temperature (sensors) | -5 to +50 °C | ||
| Storage temperature | -40 to +80 °C | ||
General technical data |
|||
| Housing | |||
| Material/colour | ABS/pure white (RAL 9010) or light grey | ||
| Weight | approx. 160 g | ||
| Display | |||
| Display |
1-line LCD (optional) | ||
| Resolution |
Measuring range | Resolution | |
| 0 to 100 Pa | 0.1 Pa | ||
| 0 to 10 hPa | 0.01 hPa | ||
| 0 to 20 hPa | 0.01 hPa | ||
| 0 to 50 hPa | 0.01 hPa | ||
| 0 to 100 hPa | 0.1 hPa | ||
| 0 to 500 hPa | 0.1 hPa | ||
| 0 to 1000 hPa | 1 hPa | ||
| 0 to 2000 hPa | 1 hPa | ||
| -100 to 100 Pa | 0.1 Pa | ||
| -10 to 10 hPa | 0.01 hPa | ||
| -20 to 20 hPa | 0.01 hPa | ||
| -50 to 50 hPa | 0.01 hPa | ||
| -100 to 100 hPa | 0.1 hPa | ||
| -500 to 500 hPa | 0.1 hPa | ||
| -1000 to 1000 hPa | 1 hPa | ||
| -2000 to 2000 hPa | 1 hPa | ||
| Miscellaneous | |||
| Protection class | IP 65 only if the transmitter is wired and/or sealing plugs are inserted |
||
| EMC | EC Directive: 2004/108/EC | ||
| Automatic zero-point adjustment | Every 60 seconds in the factory setting | ||
