Testo 6383 Differential Pressure Panel Transmitter with optional T/RH - standard panel housing metal
Item #:
XXYY-0555-6383
Brand:
Testo
Share this product:

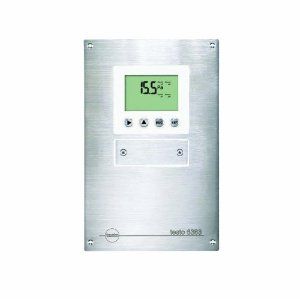

6383 Differential Pressure Panel Transmitter with optional T/RH - standard panel housing metal by Testo
The differential pressure transmitter testo 6383 was developed specially for monitoring low differential pressures in the measuring range from 10 Pa to 10 hPa. In cleanroom technology, the maintenance of positive pressure prevents the entry of contaminated air in critical zones. Thanks to an optional internal or external probe from the probe series 6610, the additional recording of humidity and temperature with one instrument is also possible.
The testo 6383 is particularly outstanding thanks to the automatic zero-point adjustment which ensures high accuracy and long-term stability.
The integrated self-monitoring and early warning function also guarantees the operator high system availability.
- Measurement of differential pressure; optional: humidity and temperature
- Flat housing allows flush surface integration in the cleanroom wall
- Ethernet, relay and analog outputs allow optimum integration into individual automation systems
- Self-monitoring of the transmitter and early warning function guarantee high system availability
- The P2A software for parameterization, adjustment and analysis saves time and costs in commissioning and maintenance
- Configurable alarm management with adjustable response delay and alarm acknowledgement
Parameters |
|||
| Differential pressure | |||
| Measuring range | 0 to 10 Pa | -10 to 10 Pa | |
| 0 to 50 Pa | -50 to 50 Pa | ||
| 0 to 100 Pa | -100 to 100 Pa | ||
| 0 to 500 Pa | -500 to 500 Pa | ||
| 0 to 10 hPa | -10 to 10 hPa | ||
| Measurement uncertainty | ±0.3% of measurement range final value
±0.3 Pa Temperature gain drift: 0.02% of measuring range per Kelvin deviaton from nominal temperature 22 °C Zero point drift: 0% (thanks to cyclic zero-point adjustment) |
||
| Selectable units | Differential pressure in Pa, hPa, kPa, mbar, bar, mmH2O, kg/cm2, PSI, inch HG, inch H2O | ||
| Sensor | Piezoresistive sensor | ||
| Autom. Zero-point adjustment | via magnetic valve Frequency adjustable: 15 sec, 30 sec, 1 min, 5 min, 10 min |
||
| Overload capacity | Measuring range | Overload | |
| 0 to 10 Pa | 20000 Pa | ||
| 0 to 50 Pa | 20000 Pa | ||
| 0 to 100 Pa | 20000 Pa | ||
| 0 to 500 Pa | 20000 Pa | ||
| 0 to 10 hPa | 200 hPa | ||
| -10 to 10 Pa | 20000 Pa | ||
| -50 to 50 Pa | 20000 Pa | ||
| -100 to 100 Pa | 20000 Pa | ||
| -500 to 500 Pa | 20000 Pa | ||
| -10 to 10 hPa | 200 hPa | ||
Inputs/outputs |
|||
| Analog outputs | |||
| Quantity | Standard: 1; with optional humidity probe: 3 | ||
| Output type | 0/4 to 20 mA (4-wire) (24 VAC/DC) 0 to 1/5 to 10 V (4-wire) (24 VAC/DC) |
||
| Scaling | Differential pressure: scalable ±50% of measuring range final value; freely scalable within measuring range | ||
| Meas. cycle | 1/sec | ||
| Resolution | 12 bit | ||
| Max. load | max. 500 Ω | ||
| Other outputs | |||
| Ethernet | Optional | ||
| Relay | Optional: 4 relays (free allocation to measurement channel or as collective alarm in operating menu/P2A), up to 250 VAC/3A (NO or NC) | ||
| Digital | Mini-DIN for P2A software | ||
| Supply | |||
| Voltage supply | 20 to 30 VAC/DC, 300 mA current consumption, galvanically separate signal and supply line | ||
General technical data |
|||
| Model | |||
| Material | Front plate stainless steel, housing plastic | ||
| Dimensions | without humidity/temperature:
246 x 161 x 47 mm with humidity/temperature: 396 x 161 x 78 mm |
||
| Weight | Version without humidity: 0.9 kg; Version with integrated humidity probe:1.35 kg; version with preparation for external humidity probe: 1.26 kg |
||
| Display | |||
| Display |
Optional: 3-line LCD with multi-language operating menu | ||
| Resolution |
Measuring range | Resolution | |
| 0 to 10 Pa | 0.1 Pa | ||
| 0 to 50 Pa | 0.1 Pa | ||
| 0 to 100 Pa | 0.1 Pa | ||
| 0 to 500 Pa | 0.1 Pa | ||
| 0 to 10 hPa | 0.01 hPa | ||
| -10 to 10 Pa | 0.1 Pa | ||
| -50 to 50 Pa | 0.1 Pa | ||
| -100 to 100 Pa | 0.1 Pa | ||
| -500 to 500 Pa | 0.1 Pa | ||
| -10 to 10 hPa | 0.01 hPa | ||
| Humidity | 0.1 %RH | ||
| Temperature | 0.01 °C / 0.01 °F | ||
| Miscellaneous | |||
| Protection class | IP 65 | ||
| Connection nipple | Ø 6 mm --> suitable hoses 4 mm + 4.8 mm | ||
| Operating conditions | |||
| Operating temperature | -5 to +50 °C / +23 to +122 °F | ||
| Storage temperature | -20 to +60 °C / -4 to +140 °F | ||
| Process temperature | -20 to +65 °C / -4 to +149 °F | ||
