RAE Systems MultiRAE IR One-to-Five Sensor NDIR CO2 and PID Personal Protection Gas Monitor
Item #:
XXYY-MultiRAE-IR
Brand:
RAE Systems
Share this product:

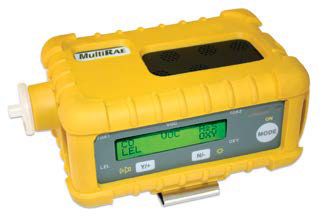

MultiRAE IR One-to-Five Sensor NDIR CO2 and PID Personal Protection Gas Monitor by RAE Systems
The MultiRAE IR combines a PID (Photoionization Detector) and Carbon Dioxide (CO2) sensor with O2, LEL, and one specific toxic gas sensor in one compact monitor with sampling pump. The MultiRAE IRs versatility allows it to replace a wide range of monitors, saving training and maintenance costs. The MultiRAE IR is quickly and easily changed from a sophisticated technician instrument to a simple text or display only monitor. The same monitor can be used as a personal monitor, a hand-held sniffer or as a continuous, operational area monitor for use in applications such as indoor air quality and industrial hygiene.
Monitor only includes
- Shipping case
- Monitor
- Datalogging: Software, ProRAE Suite Package for Windows™ 95, 98, 2000, NT, ME & XP and Computer Interface cable
- Sensors (as specified)
- Calibration adapter
- Operation and maintenance manual
- Rubber boot with belt clip
- Rechargeable Lithium-ion battery pack
- Universal AC/DC Wall Adapter with international plug kit
- Alkaline battery adapter
- external filters
- 3" inlet probe
- External filter adapter
Monitor with accessories kit also includes
- Hard transport case with pre-cut foam
- 15' (5 m) Teflon® tubing
- Tool kit
Optional calibration kit also includes
- Four-gas mix in a 34L cylinder: CH4 50% LEL, 20.9% O2, 50 ppm CO, 5,000 ppm CO2, balance N2
- N2 zero gas for non-PID equipped kits
- Isobutylene gas in a 34L cylinder (for units with PID) (doubles as CO2 zero gas)
- Calibration Regulator (male) and tubing
Key Features
- O2, LEL, PID, CO2, and any plug-in smart toxic sensors: CO, H2S, SO2, NO, NO2, Cl2, HCN, NH3, PH3
- 0-20,000 ppm measurement of CO2 using our patented non-dispersive infrared (NDIR) sensor
- 0-2,000 ppm measurement of VOCs (volatile organic compounds) with 0.1 ppm resolution
- Measure more chemicals than with any other PID: With over 60 Correction Factors built into the MultiRAE IR memory and the largest printed list of Correction Factors in the world (300+), RAE Systems offers the ability to accurately measure more ionizable chemicals than any other PID!
- Drop-in Battery: When work schedules require putting in more than the 12 hours supplied by the advanced Lithium-ion (Li-ion) battery, the drop in alkaline pack supplied with every MultiRAE IR allows you to finish the job.
- User friendly screens make it easy to use for simple applications and flexible enough for sophisticated options.
- Rugged Rubber Boot: The standard rubber boot helps assure that the MultiRAE IR survives the bumps and knocks of tough field use.
- Strong, built-in sample pump draws up to 100 (30m) horizontally or vertically. Liquid trap and automatic low flow alarm protect the MultiRAE IR from damage.
- Large keys are operable even with 3 layers of gloves
- Easy-to-read display with backlight
- Store up to 80 hours of data at one minute interval for all 5 sensors for download to PC (with the optional datalogging).
- Loud audible alarm that varies for different alarm conditions and an optional external vibration alarm for noisy areas
Applications
- Indoor Air Quality
- Beverage and Brewery
- Food Industry
- Hospitals
- Respirable Breathing Air Testing
Size | 4.6"L x 3.0"W x 1.9"H (12 x 7 x 4.8 cm) |
Weight | 16 oz with battery (454g) |
Sensors | - Up to 5 sensors including non-dispersive infrared sensor for CO2 - Protected catalytic bead for combustible gas - Interchangeable electrochemical sensors for oxygen and toxic gases - Photoionization detector for VOCs (10.6 eV, 9.8 eV and 11.7 eV lamps) |
Battery | Interchangeable Li-ion and alkaline battery packs; Rechargeable units include Lithium-ion battery pack with internal smart charging, 120V AC/DC wall adapter, and spare alkaline battery pack |
Operating Hours | - 12 hours continuous operation - Unit will run and charge simultaneously |
Display | 2 line, 16 digit LCD with LED back light automatically in dim light or alarm condition |
Keypads | 1 operation and 2 programming keys |
Direct Readout | Instantaneous (up to 5) values: - Oxygen as percentage by volume - Combustible gas as percentage of lower explosive limit (LEL) - Toxic gas, VOC and CO2 as parts per million by volume - High and low values for all gases - STEL and TWA values of toxic gas, VOC and CO2 - Battery and shut-down voltage - Date, time, elapsed time, temperature - LEL/VOC scale (using Correction Factors) |
Alarm | 90 dB buzzer and flashing red LED to indicate exceeded preset limits - High: 3 beeps and flashes per second - Low: 2 beeps and flashes per second - STEL and TWA: 1 beep and flash per second - Alarms automatically reset or latching with manual override - Additional diagnostic alarm and display message for low battery and pump stall |
Datalogging | 20,000 points (80 hours, 5 channels at one minute intervals) download to PC with serial number of unit, user ID, site number, calibration date |
Calibration | Two-point field calibration for zero and span gas |
Sampling Pump | Internal pump with user selectable flow rate: High: ~250 cc/min, Low: ~150 cc/min |
Temperature | -4° to 113°F (-20° to 45°C) |
Humidity | 0% to 95% relative humidity (non-condensing) |
Attachments | Wrist strap and high visibility rubber boot |
Warranty | Lifetime on non-consuming components (per RAE Systems Standard Warranty) 2 years for CO2, O2, LEL, CO and H2S sensors 1 year all other sensors, 1 year pump 1 year battery 1 year for 10.6 eV PID lamp |
Gas Monitor | Range | Resolution |
Carbon Dioxide | 0 - 20,000 ppm | 10 ppm |
Oxygen | 0 - 30% | 0.1% |
Combustible gas | 0 - 100% LEL | 1% |
VOCs | 0 - 200.0 ppm 200 - 2,000 ppm |
0.1 ppm 1 ppm |
Carbon Monoxide | 0 - 500 ppm | 1 ppm |
Hydrogen Sulfide | 0 - 100 ppm | 1 ppm |
Sulfur Dioxide | 0 - 20.0 ppm | 0.1 ppm |
Nitric Oxide | 0 - 250 ppm | 1 ppm |
Nitrogen Dioxide | 0 - 20.0 ppm | 0.1 ppm |
Chlorine | 0 - 10.0 ppm | 0.1 ppm |
Hydrogen Cyanide | 0 - 100 ppm | 1 ppm |
Ammonia | 0 - 50 ppm | 1 ppm |
Phosphine | 0 - 5.0 ppm | 0.1 ppm |
