Western Technology LED Lighthead, 100ft 14/3 SOOW cable, Diffuser, NON-EXP Proof Power Box, and Plug, Includes Hook and Dome Diffuser - 8100-4ASH
Item #:
WT-8100-4ASH
Brand:
Western Technology
Share this product:

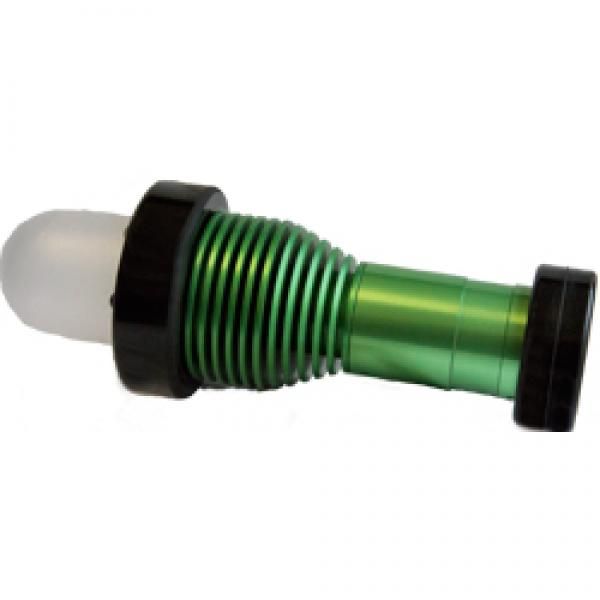

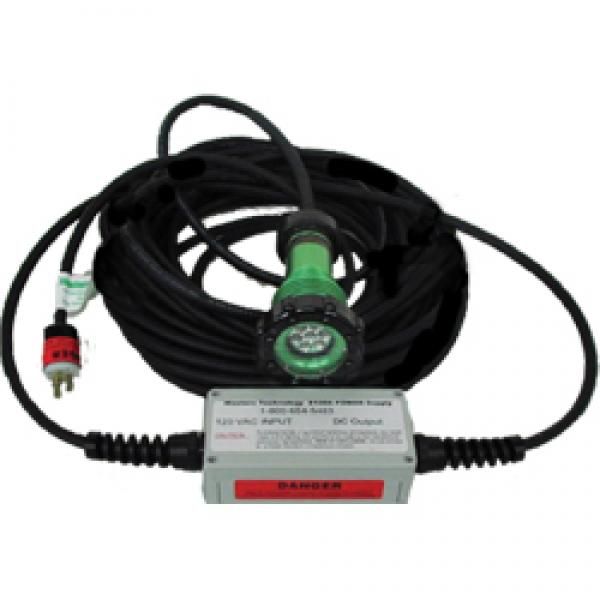

8100-4ASH LED Lighthead, 100ft 14/3 SOOW cable, Diffuser, NON-EXP Proof Power Box, and Plug, Includes Hook and Dome Diffuser by Western Technology
A short handled version of The STRIKER™: 8100 LED explosion proof flashlight this unit shares the incredible versatility of the long handled version in a smaller package. Designed to meet an incredible variety of applications this flashlight is quickly becoming the go to tool for industrial jobs worldwide. Part of our Kick-It Tough™ Explosion Proof Lighting, approved for hazardous locations.
Features
- Blasting, Drop Light, Inspection, Painting ... One Work Light, Many Applications!
- Approved for: Class I, Div 1 & 2; Groups C & D
- Approved for: Class II, Div 1 & 2; Groups E, F, & G
- Approved for: CSA Zones 1 & 2; Zones 20, 21, & 22
- Certified portable luminary
- Rated for use in Canada
- Complies with explosion proof/hazardous location requirements
- XP-G Cree LED
- 7 Cool White LEDs emitting color at ~6000K with CRI of 70
- >1,750 lumens
- Standard Optic 50 degree refractive
- Optional Optics: 30, 45, or 60 reflective
- Temperature Rating: T5 (-40C to +40C) / T4 (-40C to + 100C)
- Options: Mounting Hook, Diffuser
| Approved for | Class I, Div 1 & 2; Groups C & D Class II, Div 1 & 2; Groups E, F, & G CSA Zones 1 & 2; Zones 20, 21, & 22 (rated for use in Canada) |
| Conforms to | UL Stds 153, 8750, 781, 844 |
| Certified to | CSA Stds C22.2#s, 12, 25, 137 |
| Suitable for | Wet Location Use |
| Certified | Portable Luminary (Portable Luminaire) |
| Temperature Rating | T5 (-40°C to +40°C) / T4 (-40°C to + 100°C) |
| LED | XP-G Cree |
| LED Color | ~6000K, CRI >70 |
| Light Output | – 45,000 lux at 1ft. – >2,100 lumens |
| Standard Optic | 25° refractive, collimated beam |
| Light Head Power | – 21 VDC, 800mA, LVLE (A & C Models) – 120 VAC, 3A (B Model) |
| Weight | – 3 lbs (light head only) – 20 lbs (light head and 100' cable) |
| Dimensions | – Short Handle (8.2"L x 3"D) – Long handle (13.5"L x 3"D) |
| Body Material | – Machined solid blocks of 6061-T6 Aluminum – Polyurethane Bumpers |
| Accessories | Blast Lens, Filters & Diffusers, Hanging Hook, Overspray Protection Bags |
| Optional Configurations | STRIKER 8100 LH (Long Handle Version) STRIKER 8100 SH (Short Handle Version) |
| Gen 2 Electronics | Higher Efficiency LED electronics from Western Technology |
| Country of Origin | Designed & Manufactured in the USA |
