Western Technology Intrinsically Safe Multi-function Headlamp - 7704
Item #:
WT-7704
Brand:
Western Technology
Share this product:
7704 Intrinsically Safe Multi-function Headlamp by Western Technology

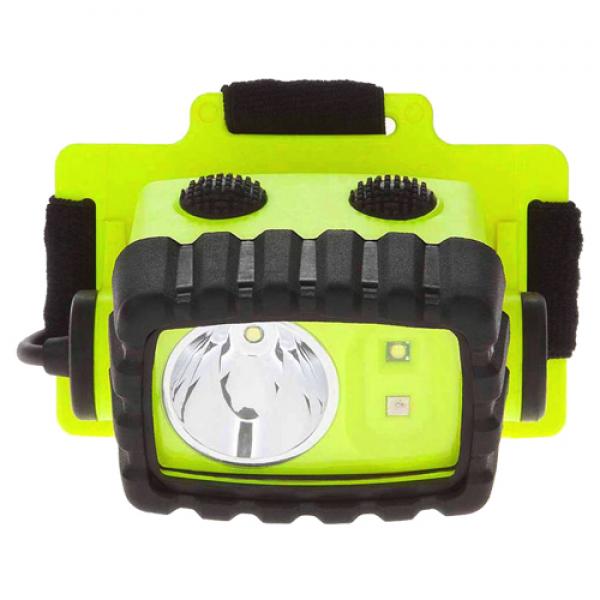

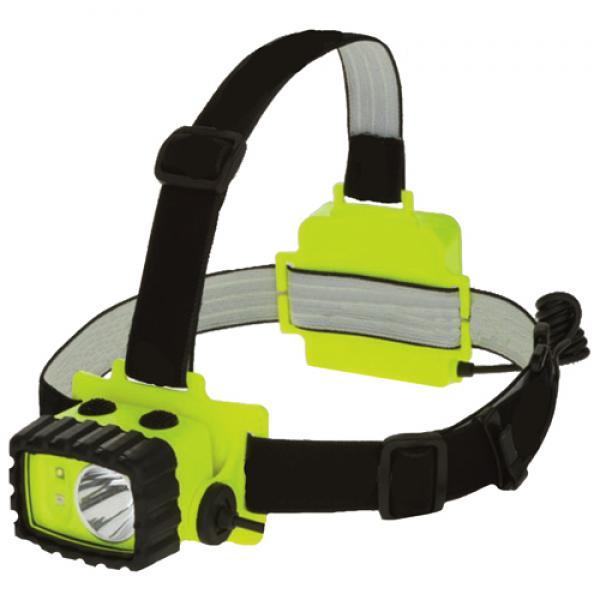

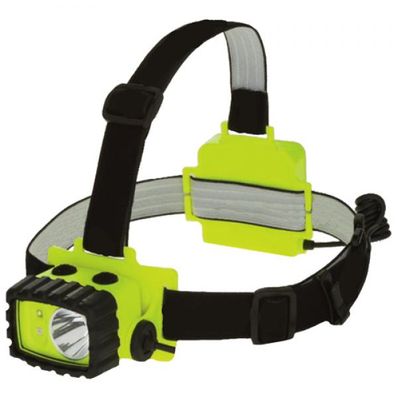

Model 7704 LED - Intrinsically Safe LED headlamp is specifically designed for use in hazardous environments. This lightweight headlamp includes both a cloth head strap and rubber hard hat strap. The white LED is good for general illumination with spot or flood lighting plus full power or half power settings. The colored LED (Green LED) gives high contrast lower light for night vision preservation. Dual-Light™ allows spotlight and flood light modes at the same time for maximum lighting.
Features
- Safety Rating: Class I, II, III Div 1, Groups A, B, C, D, E, F & G
- LED Emitter: Spotlight CREE® LED Technology (50K hour life)
- Light Output: White Spotlight- 130 Lumens, 14 hour runtime, 120m beam
- Light Output: White Floodlight- [HIGH] 100 Lumens, 12.5 hour runtime; [LOW] 25 Lumens, 70 hour runtime
- Light Output: Green Floodlight- 21 Lumens, 37 hour runtime
- Powered by: (3) AA alkaline batteries (included)
- Light Body: Engineered polymer housing
- Light Body Dimensions: 3.3" wide x 3.3" long x 3.5" deep
- Net Weight: 9.5 oz w/ batteries
- Night Vision: Green colored LED floodlight for night vision preservation

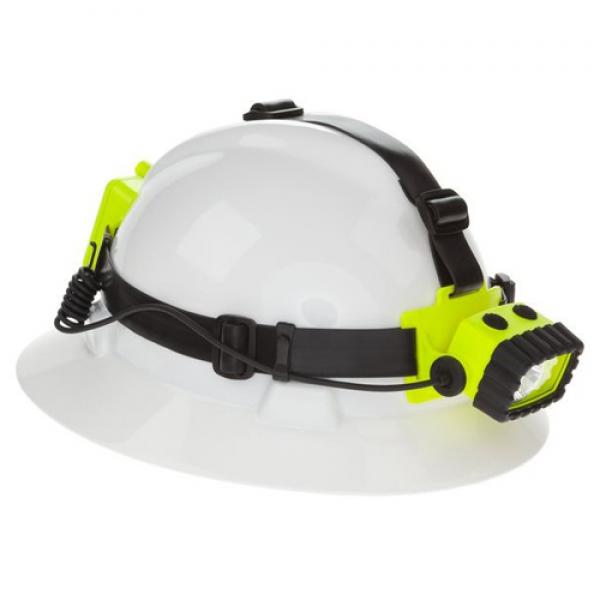

- Headband: Adjustable- (1) Elastic headstrap & (1) Rubber hard hat strap (included)
- Dual Switches: Located on top of light
- Waterproof: IP-X7 standard (1m for 30 min) not dive rated
- Dual Light™: White spotlight & white floodlight mode at the same time
- Impact & chemical resistant
- Adjustable ratchet tilt headlamp
Tested for Intrinsic Safety | IN METHANE-AIR MIXTURES ONLY |
Conforms to | ANSI/UL STD 913, ANSI/UL 60079-0, ANSI/UL 60079-11 ANSI/ISA 60079-26 |
Certified to | CAN/CSA STD C22.2 No 157 CAN/CSA STD C22.2 No 60079-0 CAN/CSA STD C22.2 No 60079-11 CSA STD C22.2 No 25 |
Safety Rating | CLASS I DIV 1 GRPS A-D T3 CLASS II & III DIV 1 GRPS E-G T135C CLASS I ZONE 0 AEx ia IIC T3 Ga CLASS I ZONE 0 Ex ia IIC T3 Ga I M1 Ex ia I Ma II 1 G Ex ia IIC T3 Ga |
LED Emitter | Spotlight CREE® LED Technology (50K hour life) |
Light Output | White Spotlight- 130 Lumens, 120m beam White Floodlight- HIGH: 100 Lumens, White Floodlight- LOW: 25 Lumens, Green Floodlight- 21 Lumens, Dual-Light™ – 190 Lumens, |
Runtime | White Spotlight- 14h runtime White Floodlight- HIGH: 12.5h runtime White Floodlight- LOW: 70h runtime Green Floodlight- 37h runtime Dual-Light™ – 6h runtime |
Powered by | (3) AA alkaline batteries (included) |
Light Body | Engineered polymer housing |
Light Body Dimensions | 3.3" wide x 3.3" long x 3.5" deep |
Net Weight | 9.5 oz w/ batteries |
Night Vision | Green colored LED floodlight for night vision preservation |
Headband | Adjustable- (1) Elastic headstrap & (1) Rubber hard hat strap (included) |
Dual Switches | Located on top of light |
Waterproof | IP-X7 standard (1m for 30 min) not dive rated |
Dual Light™ | White spotlight & white floodlight mode at the same time |
Feature | Impact & Chemical Resistant Adjustable ratchet tilt headlamp |
