Western Technology Explosion Proof Head Lamp Class 1 Div 1 - 7701HD
Item #:
WT-7701HD
Brand:
Western Technology
Share this product:

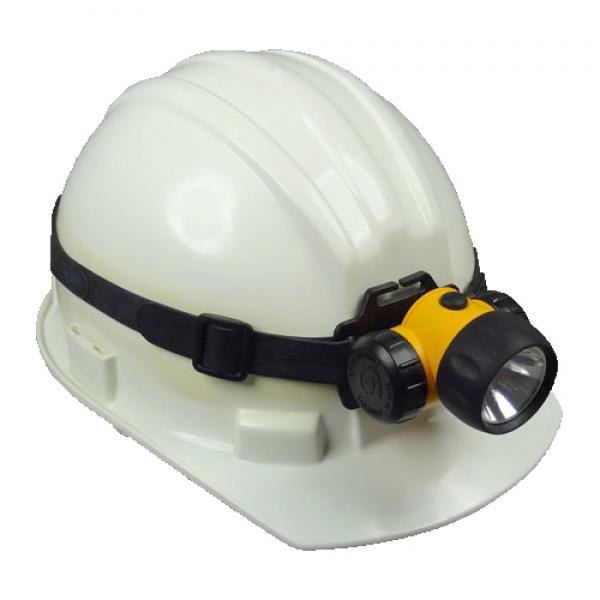

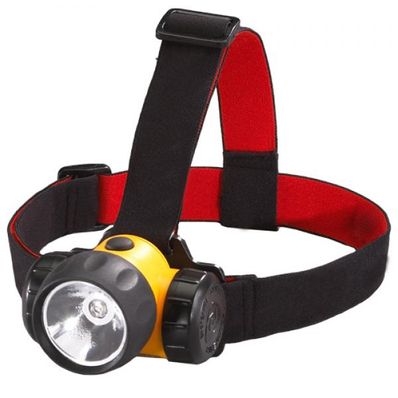

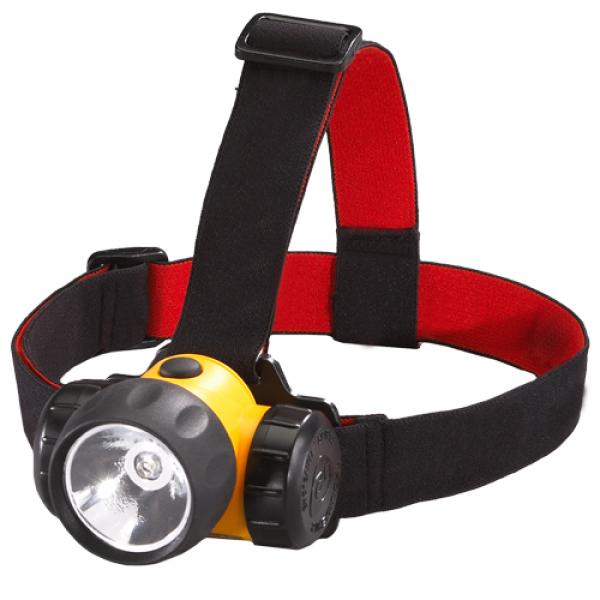

7701HD Explosion Proof Head Lamp Class 1 Div 1 by Western Technology
The 7701 HD Intrinsically Safe LED Headlamp is an intrinsically safe and safe for use in hazardous environments (industrial, utility, oil, gas, mining, etc). Now the 7701 HD Intrinsically Safe LED Headlamp is now brighter than ever with 120 lumens and a measured beam range of 541 feet. The 7701 HD LED headlamp is made of impact resistant resin offering exceptional durability and weather resistance. All openings are O-ring sealed. This headlamp runs for 11 hours on three (3) AA alkaline batteries. The 7701 HD Intrinsically Safe LED Headlamp includes both adjustable cloth headstrap and rubber hard hat strap.
Features
- Safety Rating: Class I, Div 1, Groups A, B, C, D;
- Safety Rating: Class II, Div 1, Groups E, F, G;
- Safety Rating: Class III, Temp Code: T4
- LED Emitter: C4® LED, impervious to shock (50K hour lifetime)
- Light Output: 120 Lumens, 11 hour runtime, 165m beam
- Powered by: (3) AA alkaline batteries (included)
- Light Body: Engineered resign case. All openings are O-ring sealed.
- Light Body Dimensions: 2.0" W x 3.08" L x 2.5" D
- Light Head Diameter: 1.88"
- Net Weight: 7.1oz w/ batteries & head strap
- Headband: (1) Elastic head strap & (1) Rubber hard hat strap [included]
- Lens: Unbreakable polycarbonate
- Parabolic reflector: Long range brilliance & smooth uniform beam pattern
- Switch: Push-button on/off - easy to use even when wearing heavy gloves
- Impact Resistant: One meter impact-resistance tested
- 90 degree tilting head
Safety Rating | Class I, Division 1, Groups A, B, C, D; Class II, Division 2, Groups E, F, G; Class III, Temp Code: T4 |
LED Emitter | C4® LED, impervious to shock (50K hour lifetime) |
Light Ouput | 120 Lumens, 11hr runtime, 165m beam |
Power by | (3) three AA alkaline batteries (included) |
Light Body | Engineered resin case. All openings are o-ringed sealed. |
Light Body Dimensions | 2.0" width x 3.08" length x 2.5" depth |
Light Head Diameter | 1.88" |
Net Weight | 7.1 oz w/ batteries & head strap |
Headband | (1) Elastic cloth head strap (1) Rubber hard hat strap |
Lens | Unbreakable polycarbonate |
Parabolic reflector | long range brilliance & smooth uniform beam pattern |
Switch | Push-button [On/Off]- easy use even when wearing heavy gloves |
Impact Resistant | One meter impact-resistance tested |
Special Feature | 90° tilting head |
