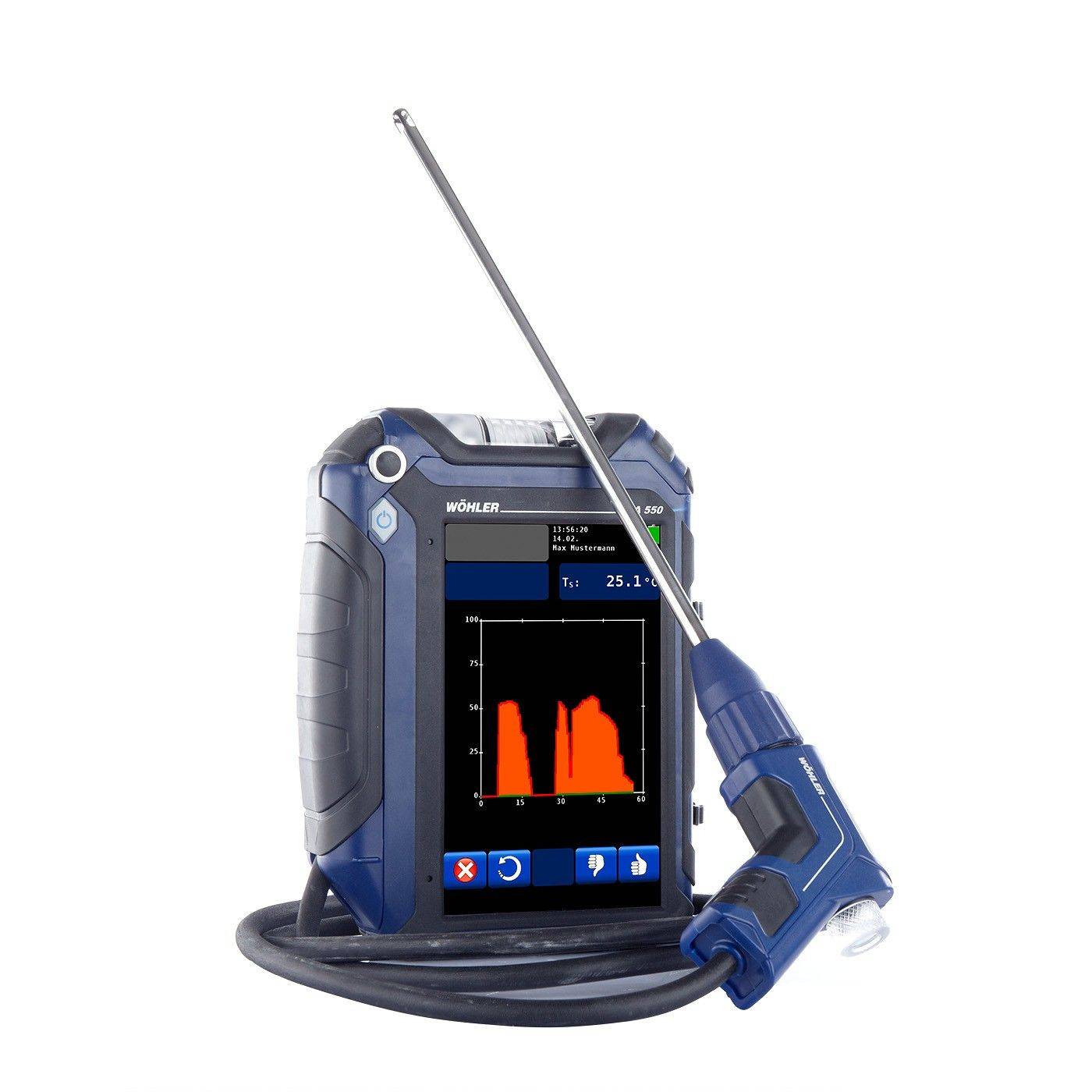

7757 A 550 Combustion Analyzer, Basic Set by Wohler

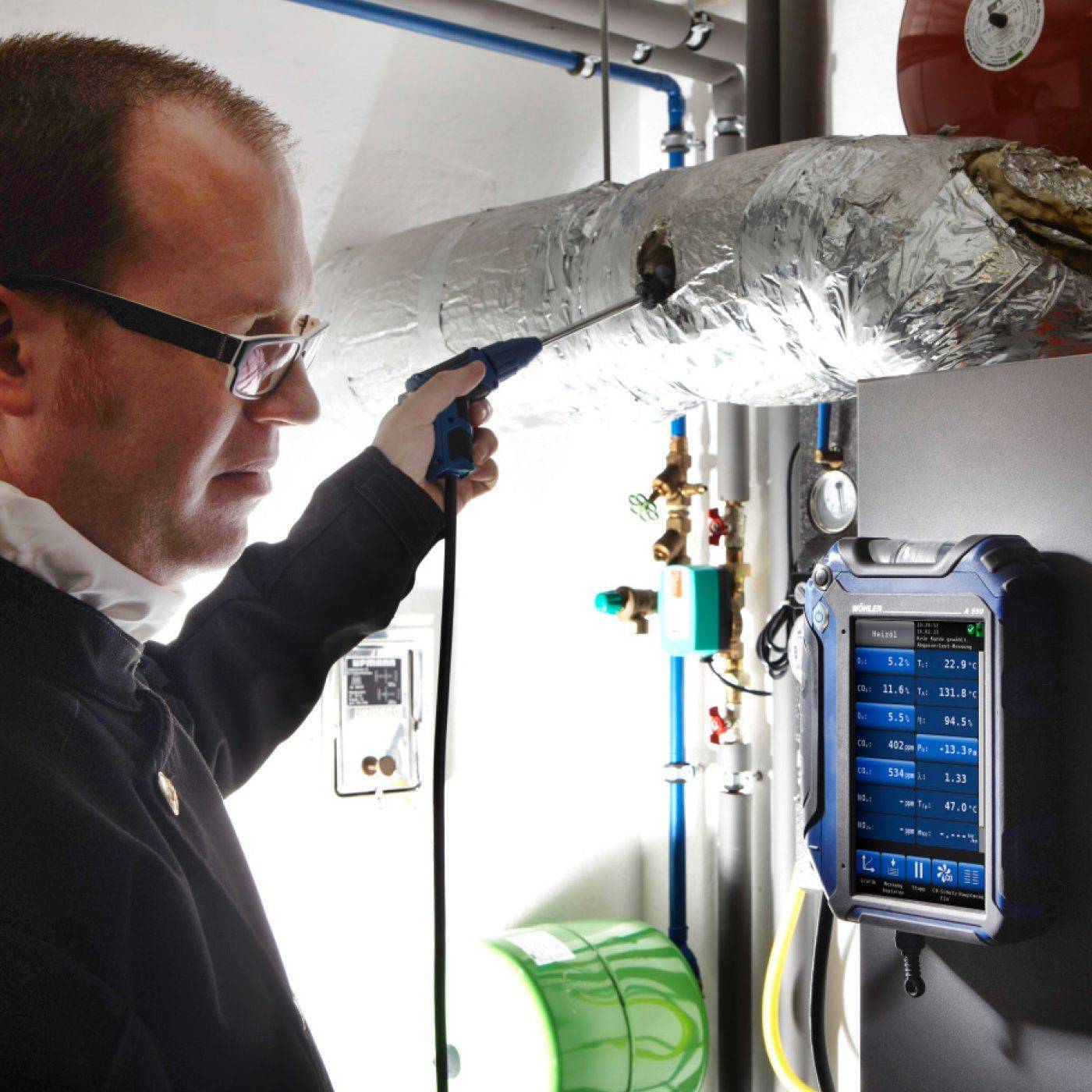

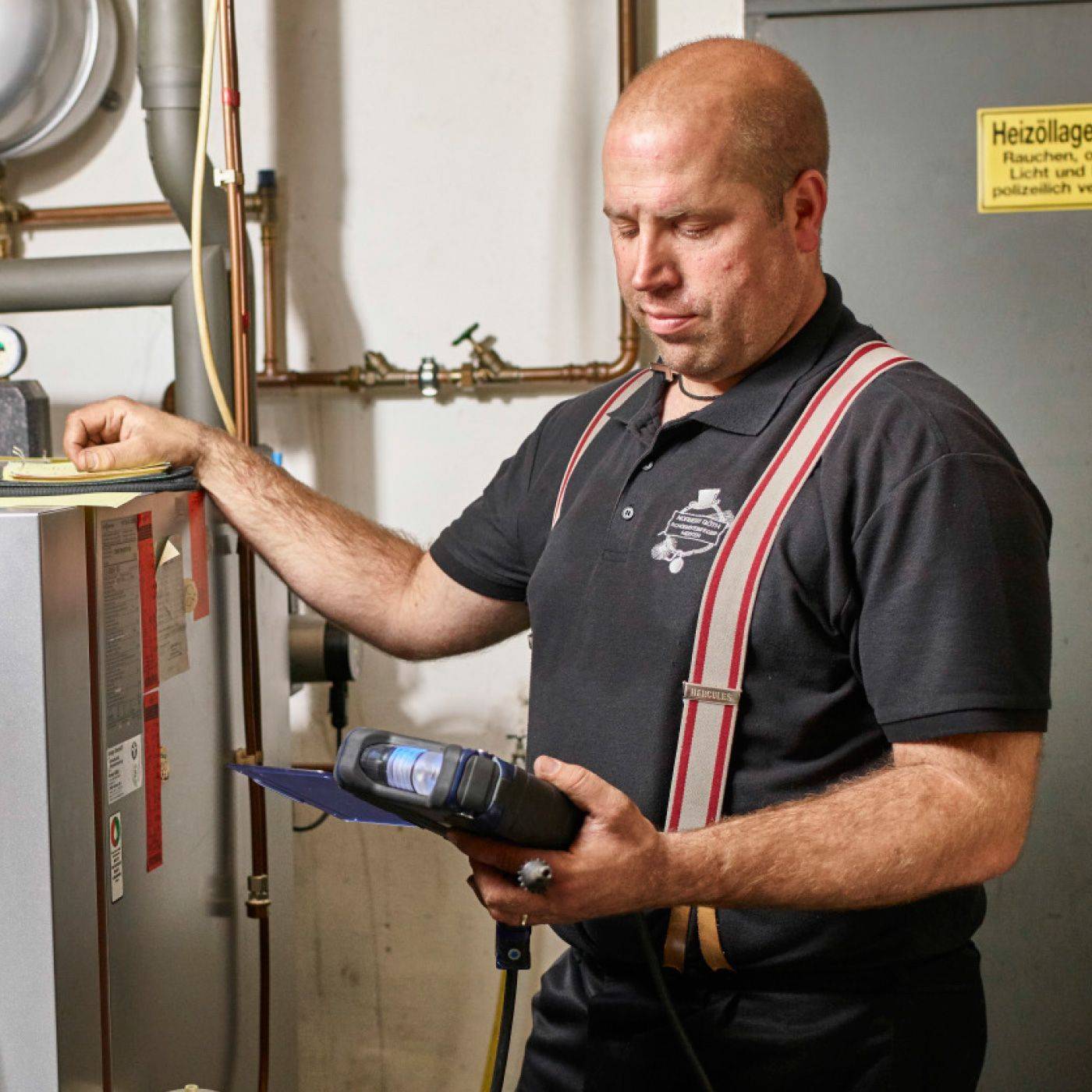

As robust as cast iron, but as easy to operate as a smartphone – that's what Wohler's new flue gas analyzer feels like in your hand. Appropriately, the advantages are equally substantial: A tip with your finger on the Wohler A 550 is all that is required to perform analyses, inspections and settings on residential and commercial appliances. The flue gas analyzer is equipped with coded connections for the 4 Pa test and even »NEW AND UNIQUE« a wood moisture content measurement function to VDI Guideline 4206 (VDI = Association of German Engineers).

Additonal Information

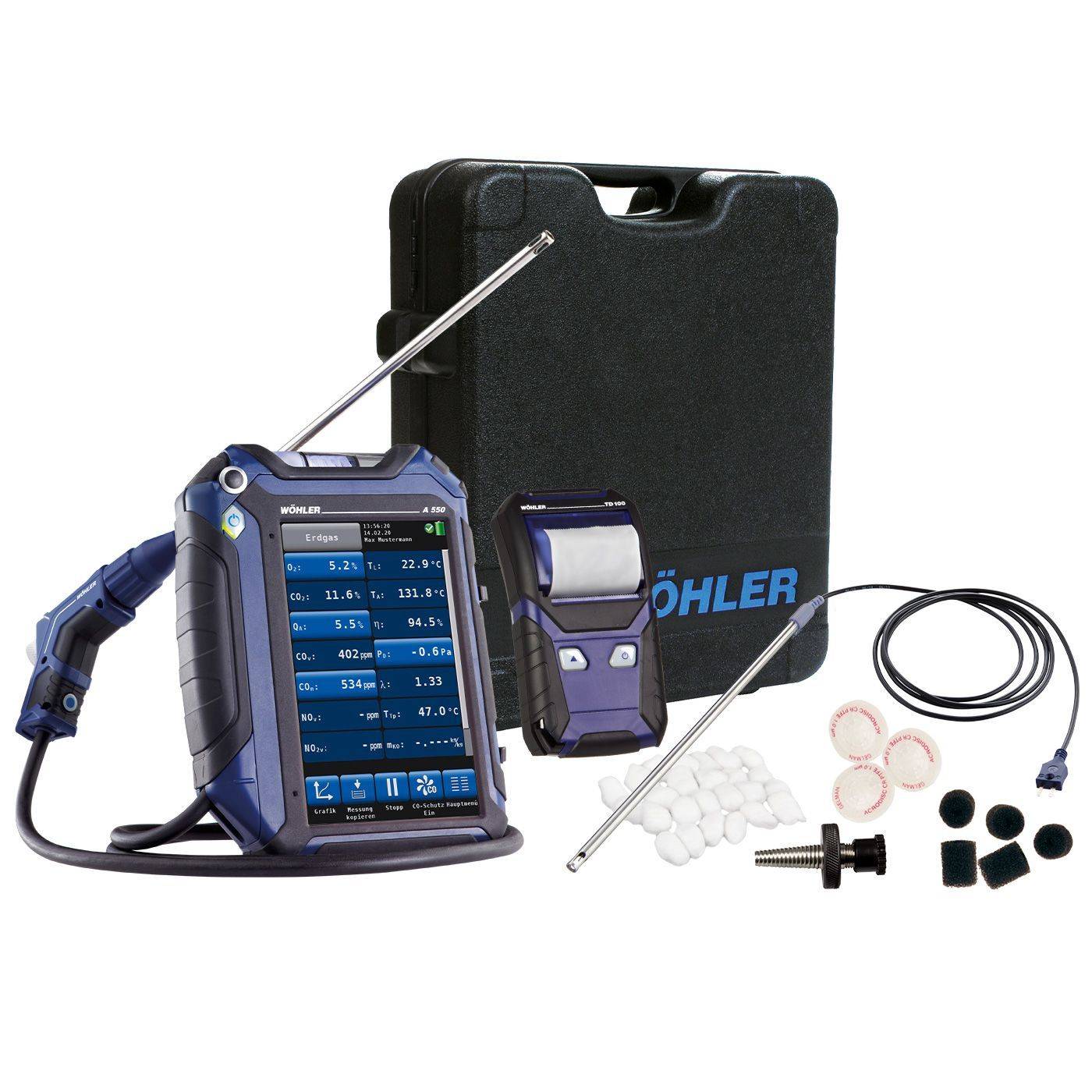

O2-Sensor
CO-Sensor 10,000 ppm
Magnetic mount
Combustion air temperature probe
Cable hose 10'
Gas probe 11.6"
Changeable gas probe
Clamping cone
USB charger with micro USB cable
Lithium-ion rechargeable battery
Waterstop filter
Coarse filter
Wadding filters (25 x)
Plastic case MAXI
Wohler TD 100 fast thermal printer

Specifications

Oxygen concentration (O₂) in flue gas	Display: Volume % referenced to dry flue gas Measurement principle: Electrochemical sensor Range: 0.0-21.0 vol. % Accuracy: ± 0.3 Vol.-%
Carbon monoxide (CO 4,000 ppm) in flue gas (Wohler A 550)	Display: Volume ppm referenced to dry flue gas Measurement principle: Electrochemical sensor Range: 0-4,000 vol. ppm; resolution 1 vol. ppm Accuracy: ±20 ppm (< 400 ppm), otherwise 5% of reading
Carbon monoxide (CO) in flue gas (Wohler A 550 L)	Display: Volume ppm referenced to dry flue gas Measurement principle: Electrochemical sensor Range: 0-35,000 vol. ppm; resolution 1 vol. ppm Accuracy: ± 100 ppm (< 1,000 ppm), otherwise 10% of reading (with H2 < 5% of reading)
Carbon monoxide (CO high) in flue gas (optional)	Display: Volume ppm referenced to dry flue gas Measurement principle: Electrochemical sensorr Range: 0-100,000 vol. ppm; resolution 1 vol. ppm Accuracy: ± 100 ppm (< 1,000 ppm), otherwise 10% of reading (with H2 < 5 % of reading)
Nitric oxide concentration (NO) in flue gas (optional)	Display: Volume ppm referenced to dry flue gas Measurement principle: Electrochemical Sensor Range: 0-3,000 vol. ppm (continuously up to 1,000) Resolution: 1 vol. ppm Accuracy: ±5 Vol.-ppm (<100 ppm), otherwise 5 % of reading
Nitrogen dioxide concentration (NO₂) in flue gas (optional)	Display: Volume ppm referenced to dry flue gas Measurement principle: Electrochemical sensor Range: 0-1000 vol. ppm (continuously up to 200); resolution 1 vol. ppm Accuracy: ±5 vol. ppm (< 100 ppm), otherwise 5 % of reading
Sulfur dioxide (SO₂) in flue gas (optional)	Display: Volume ppm referenced to dry flue gas Measurement principle: Electrochemical sensor Range: 0-5,000 vol. ppm; resolution 1 vol. ppm Accuracy: ± 10 vol. ppm (0...200 ppm), otherwise 5 % of reading
Chimney draft / differential pressure (PD) with 4 Pa test (Wohler A 550)	Display: inWC Measurement principle: Semi-conductor diaphragm Range: 0.00 to ± 44.16 inWC; resolution 0.004 inWC (< 4.01 inWC), otherwise 0.004 inWC, with ventilation loss measurement 0.004 in WC Accuracy: 0.0012 inWC (< 0.04 inWC), otherwise 3 % of reading Drift < 0.00081 inWC in 5 minutes
Chimney draft / differential pressure (PD) (Wohler A 550 L)	Display: in WC Measurement principle: Semi-conductor diaphragm Range: 0.00 to ± 44.16 inWC; resolution 0.004 in WC Accuracy: 0.008 inWC (< 0.16 inWC), otherwise 5 % of reading
Flue gas temperature (T_S)	Display: °F Measurement principle: Thermocouple (NiCr-Ni) (NiCr-Ni) Range: -4 °F to 1,472 °F; resolution 32.18 °F Accuracy: 32-271.4 °F: ± 35.6°F 271.4-1,472 °F: ± 1.5 % of reading
Combustion air temperature (T_A)	Display: °F Measurement principle: Thermocouple (NiCr-Ni) Range: -4 °F to 212 °F; resolution 32.2 °F Accuracy: ±33.8°F
Wood moisture	Display: Mass of water referenced to dry fuel mass Measurement principle: Electrical resistance measurement Range: 10.0-40.0%; resolution 0.1% Accuracy: ±40% of reading tested to VDI 4206 Part 4 Power supply: Lithium-Ion, rechargeable battery 3.7 V, 5800 mAh, charges via USB
Battery operating time	Approx. 12 h (depends on operating status and display illumination)
Storage temperature	-4 °F to +122 °F
Operating temperature	+41-104 °F to maintain stated accuracy
Weight	2.75 lbs
Dimensions	8.7" x 6.3" x 2.2" (without probe)
Length of cable-hose	67"
