Wohler VE 500 HD VID Endoscope - 11390
Item #:
WLR-11390
Brand:
Wohler
Share this product:
11390 VE 500 HD VID Endoscope by Wohler

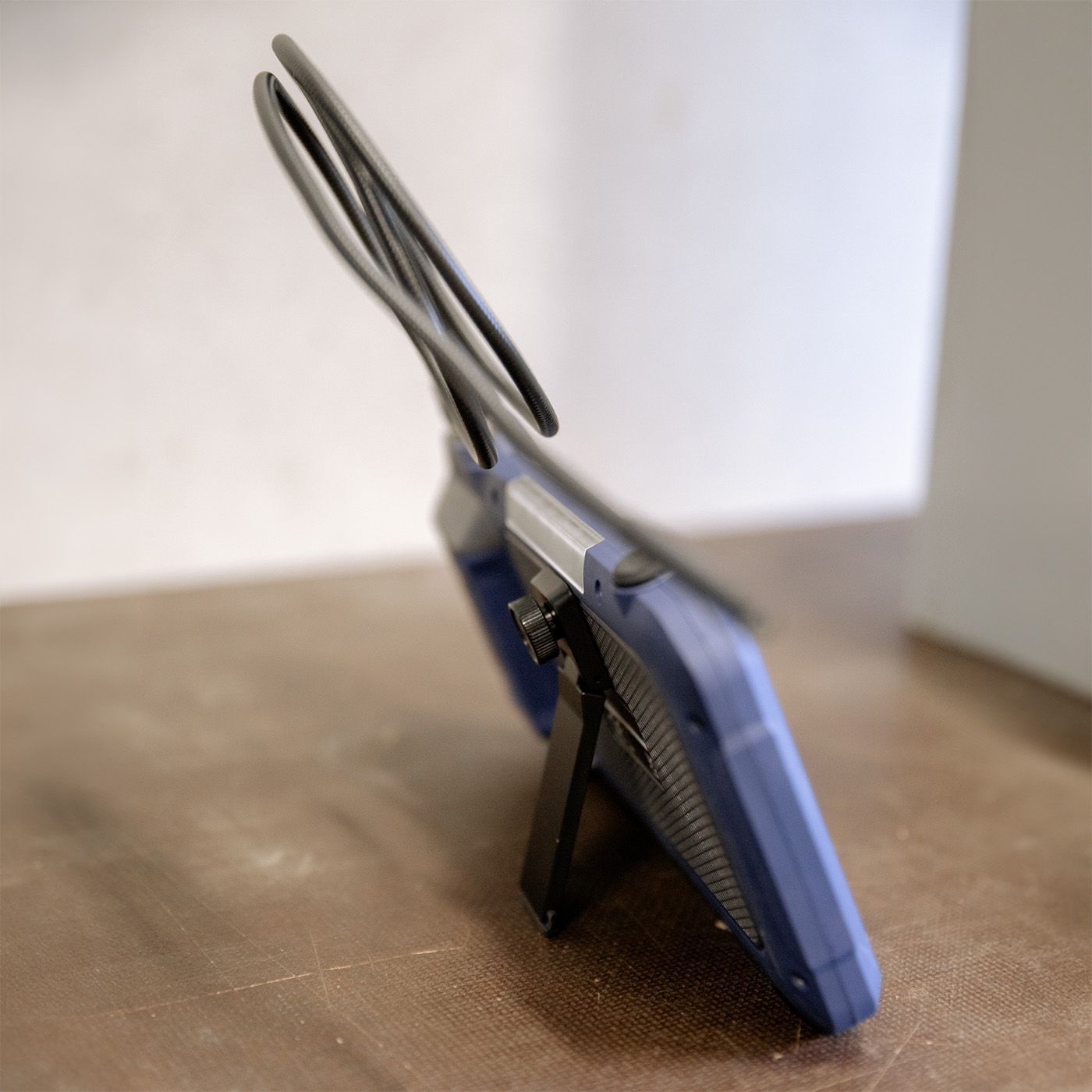

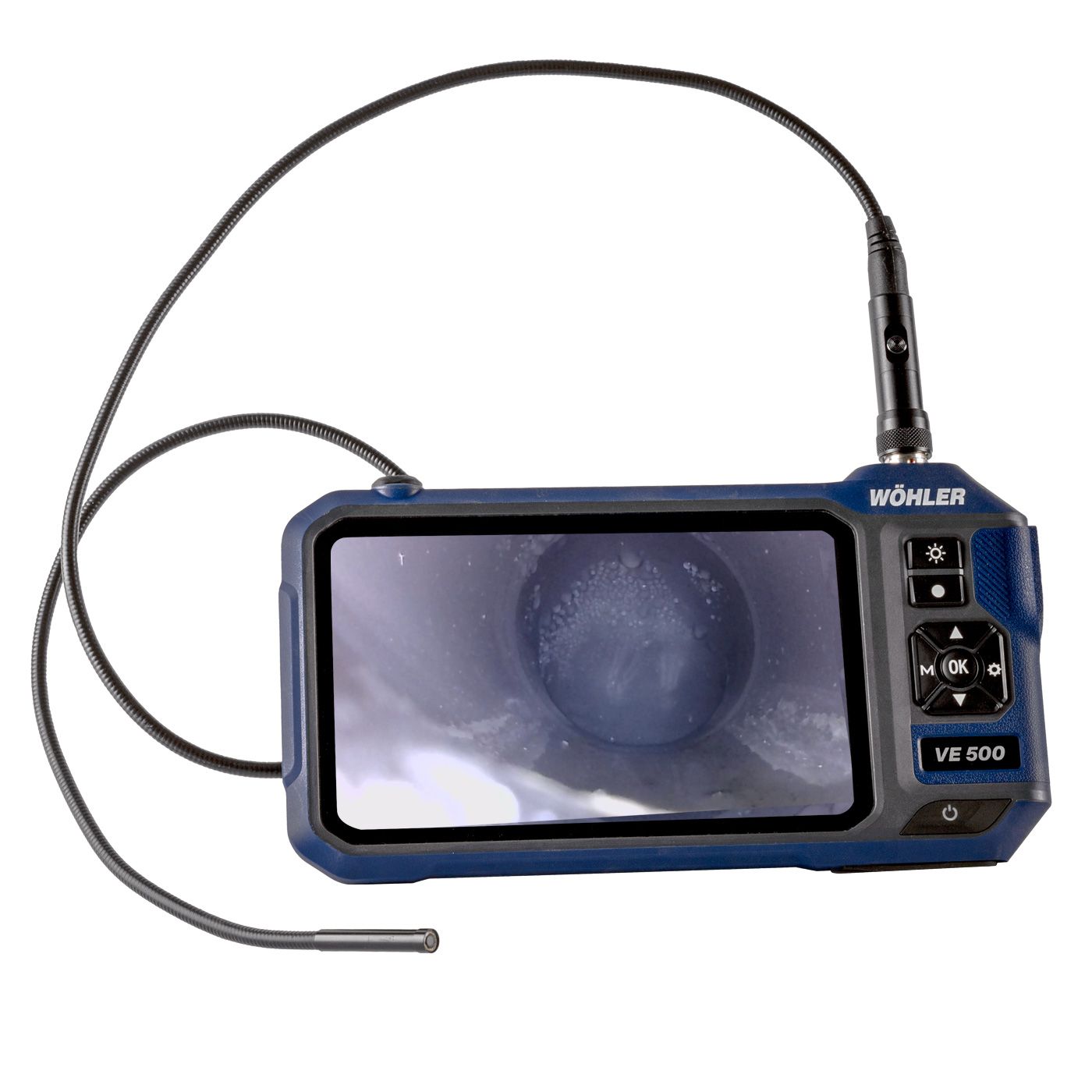

The Wohler VE 500 HD video borescope is the perfect instrument for inspecting inaccessible cavities through even the smallest openings from Ø 0.24". With a wide range of probes up to 33' in length, it is suitable for many applications. The large screen with split screen mode makes it possible to see everything at a glance. The stand and the thread for magnetic mounting ensure that your hands are free in every area of application.

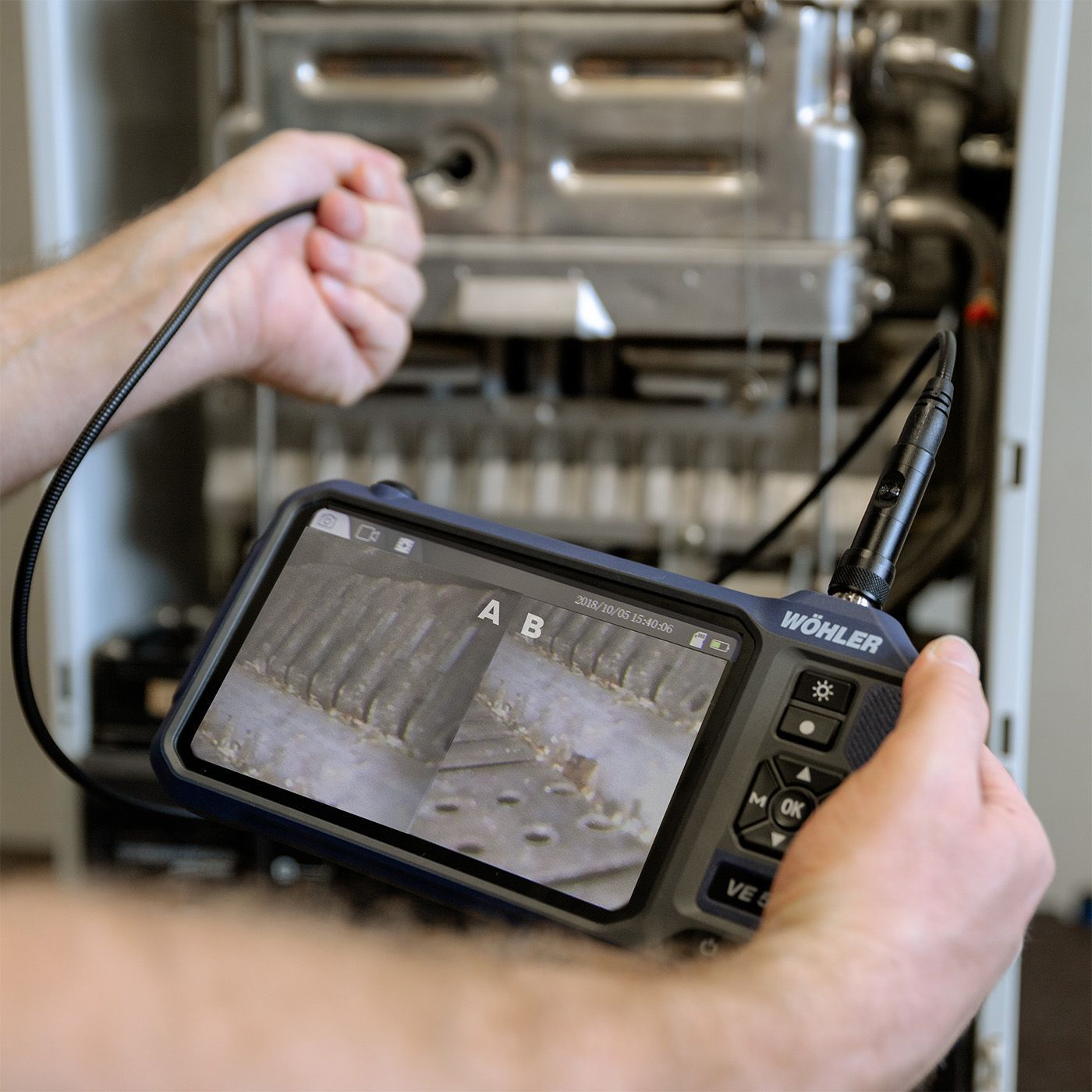

The image and video can also be transferred to the Wöhler Smart Inspection App to make it as easy as possible to create an inspection report. The split screen mode allows both camera images from the combination probe to be displayed at a glance. A Ø 0.24" opening in a tile cross is enough to inspect the installation behind the wall. The Wohler VE 500 HD video borescope is an indispensable tool for inspecting areas that are difficult to access.
| Monitor | |
| Display | 7" HD IPS, color |
| Monitor resolution | 1280 x 720 pixels |
| Image rotation | 180° |
| Connections | USB-C port Micro SD card slot HDMI connection (up to HDMI version 1.3) |
| Menu languages | English, Spanish, Chinese, German, Italian, French |
| Additional lamp, also available when the camera is switched off | 6 LEDs |
| Probe | |
| Point of view | 78° |
| Split screen | Possible when connecting a probe with 2 or 3 cameras |
| Video resolution | 1920 x 1080 pixels max. |
| Image resolution | 1920 x 1080Pixel max. |
| IP protection class (Probe camera and cable) | IP 67 (Temporary immersion up to max. 30 min.) |
| Lighting | Adjustable LEDs |
| Technical data | |
| Operating temperature | 0° to 45°C |
| Power supply | Battery 3.7V, 6.0 Ah Li-Ion |
| Operating time | approx. 4 h |
| Loading time | approx. 3.5 h |
