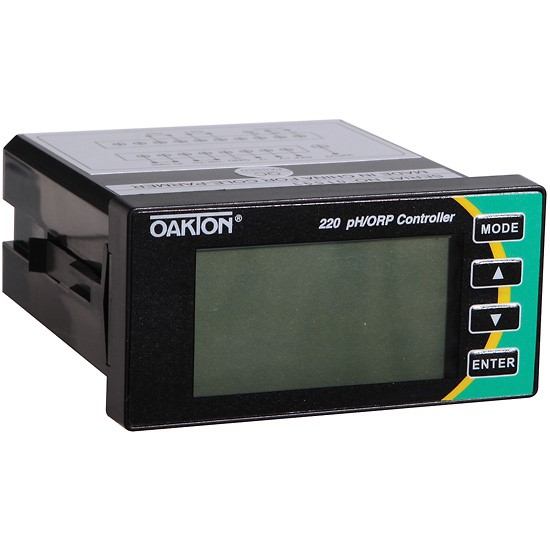

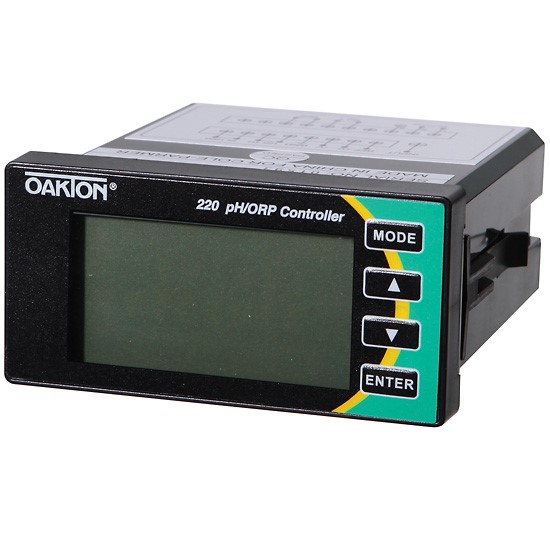

Oakton 220 pH/ORP/Temperature Controller, 1/8 DIN - WD-56700-15
Item #:
WD-56700-15
Brand:
Oakton Instruments
Share this product:
WD-56700-15 220 pH/ORP/Temperature Controller, 1/8 DIN by Oakton
Oakton pH/ORP controller features automatic buffer recognition, absolute and relative ORP measurements, and automatic temperature compensation to ensure measurement accuracy. Advanced features include two sets of programmable on/off relays are ideal for high/low control to activate an alarm, a pump, or another device and an isolated 4-20 mA output signal are suitable for opening valves and pacing pumps. ATC element is user selectable, 10K NTC or 1000 Ohm RTD. Order 56105-60 BNC-to-Stripped Wire Adapter for easy connections on terminal strip on back of controller.
- Designed with both SPDT relay and isolated 4 to 20 mA outputs for controlling and transmitting pH, ORP, and temperature measurements
- Backlight LCD for clear measurement display
- Automatic buffer recognition of US and NIST buffers
- Universal power supply input from 100 to 240VAC
- Easy-to-install 1/8-DIN compact plastic casing
| Control Type | On/Off |
| Display Type | LCD |
| Min pH (pH) | -2 |
| Max pH (pH) | 16 |
| pH Resolution | 0.01 |
| pH Accuracy | ±0.1% of reading ±1 digit |
| Min mV (mV) | -1999 |
| Max mV (mV) | 1999 |
| mV Resolution | 1 |
| mV Accuracy | ±0.1% of reading ±1 digit |
| Min Temperature (° C) | -10 |
| Max Temperature (° C) | 120 |
| Min Temperature (° F) | 14 |
| Max Temperature (° F) | 248 |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.3°C |
| Temperature Compensation | Automatic |
| Output Current | 4-20mA |
| Output Relay | 2 SPDT relays |
| Power (VAC) | 100 to 240 |
| Power (Hz) | 50/60 |
| Width (cm) | 9.6 |
| Height (cm) | 4.8 |
| Depth (cm) | 11 |
| Panel Mount Size | 1/8-DIN |
| Description | pH/ORP/temperature Controller, 1/8 DIN |
