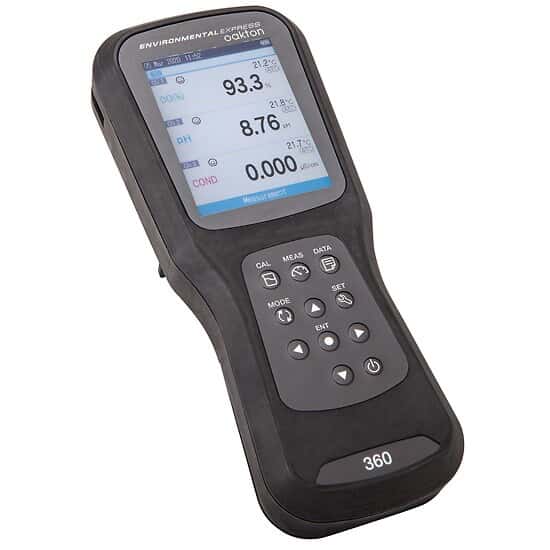

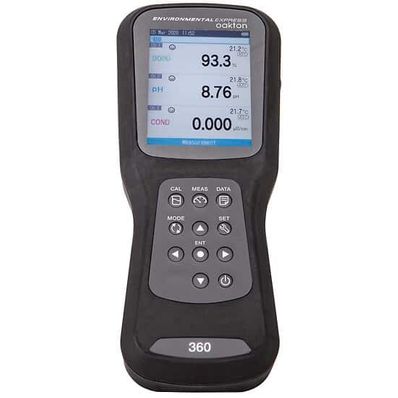

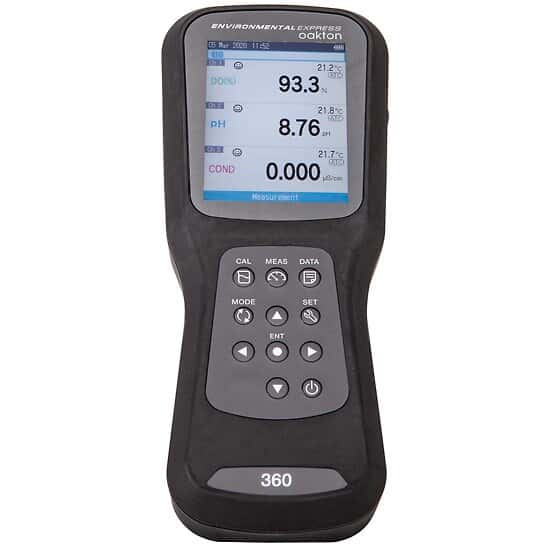

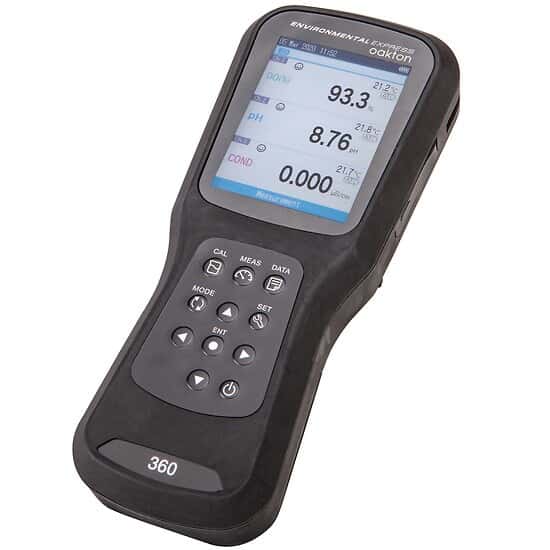

Oakton WQ360 Waterproof Dual-Channel Smart Handheld Meter - WD-35660-84
Item #:
WD-35660-84
Brand:
Oakton Instruments
Share this product:
WD-35660-84 WQ360 Waterproof Dual-Channel Smart Handheld Meter by Oakton
Get easy-to-read and accurate readings with auto-hold, auto-stable, and real-time measurements with stability indicators. The Environmental Express® Oakton® 300 series multiparameter meters utilize smart sensor technology with sensor heads that feature a built-in digital circuit for automatic sensor recognition. Sensor information including sensor ID, calibration data, and measurement setup is stored in sensor head and viewable on the meter display when sensor is connected.
Sensor heads are easy to connect and disconnect with waterproof push-lock connector. Sensor cartridges (pH and EC) are replaceable for a cost-efficient and environmentally friendly system. Blue LED light on the sensor head functions as a reading stability indicator, flashing until the reading is stable.
Meter stores up to 10,000 data sets with date-and-time stamp for accurate and easy analysis. Quickly transfer data from meter to computer seamlessly via USB cable or wirelessly via Wi-Fi.
Easily take measurements and conveniently store meter and electrodes with built-in foldable stand on the back of the meter. Three grooves on the meter serve as electrode holders, to hold up to three electrodes simultaneously.
- Extremely versatile—the meter automatically recognizes which sensors you plug in so you can easily switch parameters whenever you want
- Select a meter with the number of channels you need (1, 2, or 3) and the sensors for the parameters you are measuring (pH, conductivity, or DO)
- Eliminate downtime with smart sensors that feature built-in calibration and measurement information
- Rugged, waterproof and dustproof housing with an IP67 rating for use in any environment
- Nonslip ergonomic design is comfortable to use and shock-proof and scratch-resistant
- Easily view measurements with large color graphic TFT-LCD, even in dim lighting or bright outdoor sunlight
- Download and analyze up to 10,0000 data points easily with micro USB
- Accurately measure pH, ORP, conductivity, TDS, resistivity, salinity, dissolved oxygen, and temperature with automatic sensor recognition function, sensors sold separately
Includes
meter, four AA batteries, and wireless SD card.
| Meter Type | Portable |
| Display type | Color graphic LCD with backlight |
| Connections | micro USB, phono jack, and push-pull connection |
| Min pH (pH) | -2 |
| Max pH (pH) | 20 |
| pH Resolution | 0.001 |
| pH Accuracy | ±0.005 |
| Buffer Recognition | USA, DIN, NIST, NIST (10), and custom |
| Calibration | pH: Up to 6 points; Conductivity: Up to 4 automatic, up to 5 manual |
| Min mV (mV) | -1000 |
| Max mV (mV) | 1000 |
| mV Resolution | 0.1 |
| mV Accuracy | ±0.1 |
| Min Conductivity | 0 S |
| Max Conductivity | 200 S |
| Conductivity Resolution | Auto ranging, up to 4 significant digits |
| Conductivity Accuracy | ±0.5% full scale of each range, ±1.5% full scale at 200 mS |
| Min TDS | 0.01 mg/L |
| Max TDS | 200,000 mg/L |
| TDS Resolution | 0.01 minimum, 4 significant digits |
| TDS Accuracy | ±0.5% of reading or ±0.1 mg/L, whichever is greater |
| Min Salinity | 0 ppt |
| Max Salinity | 80 ppt |
| Salinity Resolution | 0.01 ppt |
| Salinity Accuracy | ±0.5% of reading or ±0.01 ppt, whichever is greater |
| Min Resistivity | 0.1 Ω•cm |
| Max Resistivity | 200 MΩ•cm |
| Resistivity Resolution | Auto ranging, up to 4 significant digits |
| Resistivity Accuracy | ±0.5% full scale of each range, ±1.5% full scale > 20.0MΩ |
| Min Dissolved Oxygen | 0 mg/L, 0% |
| Max Dissolved Oxygen | 20 mg/L, 200% |
| Dissolved Oxygen Resolution | 0.01 mg/L, 0.1% |
| Dissolved Oxygen Accuracy | ±0.2 mg/L,±0.2% |
| Min Temperature (° C) | -30 |
| Max Temperature (° C) | 130 |
| Min Temperature (° F) | -22 |
| Max Temperature (° F) | 266 |
| Temperature Resolution | 0.1°F/°C |
| Temperature Accuracy | ±0.9°F (±0.5°C) |
| Temperature compensation | Automatic |
| Temperature Coefficient | 0.00 to 10.00%/°C |
| Interface | USB and Wi-Fi |
| Output | micro USB for PC connection, phono jack for printer connection |
| Data Logging (points) | 10000 |
| Waterproof | IP67 |
| Battery | Four AA batteries |
| Width (cm) | 3.45 |
| Height (cm) | 22 |
| Width (in) | 1 2/5 |
| Height (in) | 8 21/32 |
| Number of Positions | 2 |
| NIST Calibration Included | No |
| Probe Included | No |
| Accessories Included | four AA batteries, and wireless SD card |
| Description | Waterproof Single-Channel Smart Handheld Meter |
