Oakton EC260 Waterproof Conductivity, TDS, Resistivity, and Salinity Handheld Meter Kit - WD-35660-16

Item #:
WD-35660-16
Brand:
Oakton Instruments
Oakton EC260 Waterproof Conductivity, TDS, Resistivity, and Salinity Handheld Meter Kit - WD-35660-16
$684.08
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Oakton EC260 Waterproof Conductivity, TDS, Resistivity, and Salinity Handheld Meter Kit - WD-35660-16

Oakton EC260 Waterproof Conductivity, TDS, Resistivity, and Salinity Handheld Meter Kit - WD-35660-16

$684.08

WD-35660-16 EC260 Waterproof Conductivity, TDS, Resistivity, and Salinity Handheld Meter Kit by Oakton

Get easy-to-read and accurate readings with auto-hold, auto-stable, and real-time measurements with stability indicators. The Environmental Express® Oakton® 200 series of water quality meters features an electrode status indicator, which shows the condition of the electrode after each calibration. Easily view electrode condition, reading stability, measured parameter, and temperature in one screen. Don't worry about accuracy in fluctuating temperature—ATC ensures measurement accuracy. The simple user interface features adjustable auto shut-off time ranging from 1 to 30 minutes. Self-diagnosing meters display measurement and meter issues for fast fault finding and troubleshooting.

Easily take measurements and conveniently store meter and electrodes with built-in foldable stand on the back of the meter. Two grooves on the side of the meter serve as electrode holders, to hold up to 2 electrodes.

Choose from two series—the 250 series feature 500 data points while the 260 series features 1000 data points, a real-time clock, and USB communication.

  • Rugged, waterproof, and dustproof with an IP67 rating for use in any environment
  • Nonslip ergonomic design for comfortable handling
  • Easily view measurements with large monochrome LCD with white LED backlighting
  • Download and analyze data with USB output and phono jack printer connections
  • Take it with you—500 hours of battery life
  • Accurately measure conductivity, TDS, resistivity, salinity, and temperature

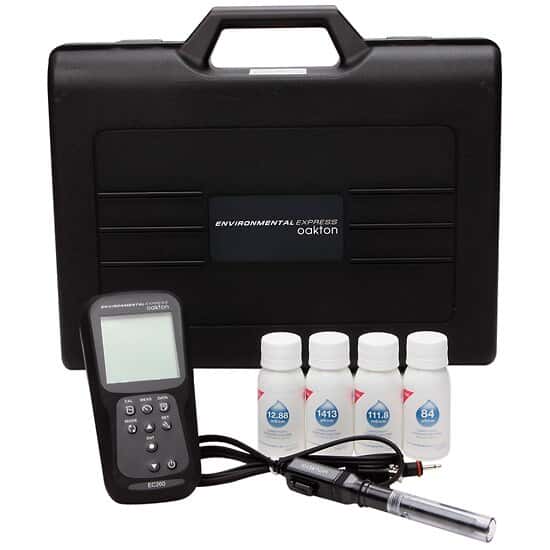

Includes

meter, electrode, calibration solutions, and 2 AA batteries.

Meter Type Portable
Display type
Backlit LCD
Connections BNC and phono
Calibration Up to 4 automatic, up to 5 manual
Min Conductivity 0 mS
Max Conductivity 200 mS
Conductivity Resolution 0.05% full scale
Conductivity Accuracy ±0.6% full scale, ±1.5% full scale > 18 mS/cm
Min TDS 0 ppt
Max TDS 100 ppt
TDS Resolution 0.01 ppm/0.1 ppt
TDS Accuracy ±0.1% full scale
Min Salinity 0 ppt/0%
Max Salinity 100 ppt/10%
Salinity Resolution 0.1 ppt/0.01%
Salinity Accuracy ±0.6% full scale, ±1.5% full scale > 1.8 MΩ•cm
Min Resistivity 0 MΩ
Max Resistivity 20 MΩ
Resistivity Resolution 0.05% full scale
Resistivity Accuracy ±0.6% full scale, ±1.5% full scale > 1.8 MΩ•cm
Min Temperature (° C) -30
Max Temperature (° C) 130
Min Temperature (° F) -22
Max Temperature (° F) 266
Temperature Resolution 0.1°F/°C
Temperature Accuracy ±0.9°F (±0.5°C)
Temperature compensation Automatic
Temperature Coefficient 0.00 to 10.00%/°C
Output USB and RS-232
Data Logging (points) 1000
Waterproof IP67
Battery 2 AA batteries
Length (cm) 16
Width (cm) 8
Height (cm) 4.06
Width (in) 3 5/32
Length (in) 6 19/64
Height (in) 1 19/32
Number of Positions 2
NIST Calibration Included No
Probe Included Yes
Accessories Included meter, electrode, calibration solutions, and 2 AA batteries.
Description Waterproof Conductivity, TDS, Resistivity, and Salinity Handheld Meter Kit
