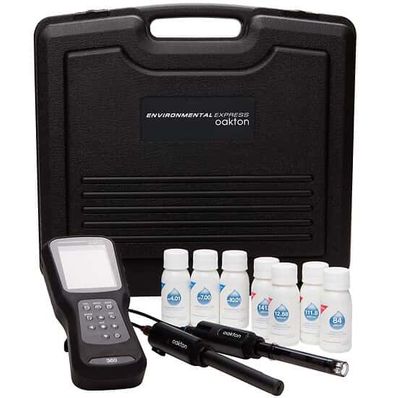

Oakton PC360 Waterproof Dual-Channel pH, ORP, Conductivity, TDS, Resistivity, and Salinity Smart Handheld Meter Kit - WD-35660-76

Item #:
WD-35660-76
Brand:
Oakton Instruments
Oakton PC360 Waterproof Dual-Channel pH, ORP, Conductivity, TDS, Resistivity, and Salinity Smart Handheld Meter Kit - WD-35660-76
$1,763.48
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Oakton PC360 Waterproof Dual-Channel pH, ORP, Conductivity, TDS, Resistivity, and Salinity Smart Handheld Meter Kit - WD-35660-76

Oakton PC360 Waterproof Dual-Channel pH, ORP, Conductivity, TDS, Resistivity, and Salinity Smart Handheld Meter Kit - WD-35660-76

$1,763.48

WD-35660-76 PC360 Waterproof Dual-Channel pH, ORP, Conductivity, TDS, Resistivity, and Salinity Smart Handheld Meter Kit by Oakton

Get easy-to-read and accurate readings with auto-hold, auto-stable, and real-time measurements with stability indicators. The Environmental Express® Oakton® 300 series multiparameter meters utilize smart sensor technology with sensor heads that feature a built-in digital circuit for automatic sensor recognition. Sensor information including sensor ID, calibration data, and measurement setup is stored in sensor head and viewable on the meter display when sensor is connected.

Sensor heads are easy to connect and disconnect with waterproof push-lock connector. Sensor cartridges (pH and EC) are replaceable for a cost-efficient and environmentally friendly system. Blue LED light on the sensor head functions as a reading stability indicator, flashing until the reading is stable.

Meter stores up to 10,000 data sets with date-and-time stamp for accurate and easy analysis. Quickly transfer data from meter to computer seamlessly via USB cable or wirelessly via Wi-Fi.

Easily take measurements and conveniently store meter and electrodes with built-in foldable stand on the back of the meter. Three grooves on the meter serve as electrode holders, to hold up to three electrodes simultaneously.

  • Extremely versatile—the meter automatically recognizes which sensors you plug in so you can easily switch parameters whenever you want
  • Select a meter with the number of channels you need (1, 2, or 3) and the sensors for the parameters you are measuring (pH, conductivity, or DO)
  • Eliminate downtime with smart sensors that feature built-in calibration and measurement information
  • Rugged, waterproof and dustproof housing with an IP67 rating for use in any environment
  • Nonslip ergonomic design is comfortable to use and shock-proof and scratch-resistant
  • Easily view measurements with large color graphic TFT-LCD, even in dim lighting or bright outdoor sunlight
  • Download and analyze up to 10,0000 data points easily with micro USB
  • Accurately measure pH, ORP, conductivity, TDS, resistivity, salinity, and temperature

Includes

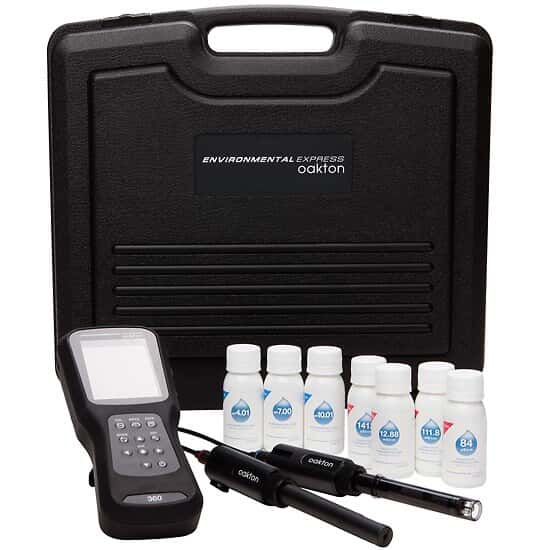

meter, pH sensor head, pH sensor cartridge, pH buffer set, EC sensor head, EC sensor cartridge, conductivity standards set, four AA batteries, wireless SD card, and carrying case.

Meter Type Portable
Display type Color graphic LCD with backlight
Connections micro USB, phono jack, and push-pull connection
Min pH (pH) -2
Max pH (pH) 20
pH Resolution 0.001
pH Accuracy ±0.005
Buffer Recognition USA, DIN, NIST, NIST (10), and custom
Calibration pH: Up to 6 points; Conductivity: Up to 4 automatic, up to 5 manual
Min mV (mV) -1000
Max mV (mV) 1000
mV Resolution 0.1
mV Accuracy ±0.1
Min Conductivity 0 S
Max Conductivity 200 S
Conductivity Resolution Auto ranging, up to 4 significant digits
Conductivity Accuracy ±0.5% full scale of each range, ±1.5% full scale at 200 mS
Min TDS 0.01 mg/L
Max TDS 200,000 mg/L
TDS Resolution 0.01 minimum, 4 significant digits
TDS Accuracy ±0.5% of reading or ±0.1 mg/L, whichever is greater
Min Salinity 0 ppt
Max Salinity 80 ppt
Salinity Resolution 0.01 ppt
Salinity Accuracy ±0.5% of reading or ±0.01 ppt, whichever is greater
Min Resistivity 0.1 Ω•cm
Max Resistivity 200 MΩ•cm
Resistivity Resolution Auto ranging, up to 4 significant digits
Resistivity Accuracy ±0.5% full scale of each range, ±1.5% full scale > 20.0MΩ
Min Temperature (° C) -30
Max Temperature (° C) 130
Min Temperature (° F) -22
Max Temperature (° F) 266
Temperature Resolution 0.1°F/°C
Temperature Accuracy ±0.9°F (±0.5°C)
Temperature compensation Automatic
Temperature Coefficient 0.00 to 10.00%/°C
Interface USB and Wi-Fi
Output micro USB for PC connection, phono jack for printer connection
Data Logging (points) 10000
Waterproof IP67
Battery Four AA batteries
Width (cm) 3.45
Height (cm) 22
Width (in) 1 2/5
Height (in) 8 21/32
Number of Positions 2
NIST Calibration Included No
Probe Included Yes
Accessories Included pH sensor head, pH sensor cartridge, pH buffer set, EC sensor head, EC sensor cartridge, conductivity standards set, four AA batteries, wireless SD card, and carrying case
Description Waterproof Dual-Channel pH, ORP, Conductivity, TDS, Resistivity, and Salinity Smart Handheld Meter Kit
