Oakton T-100IR Portable Infrared Turbidity Meter Kit - WD-35635-15
Item #:
WD-35635-15
Brand:
Oakton Instruments
Share this product:

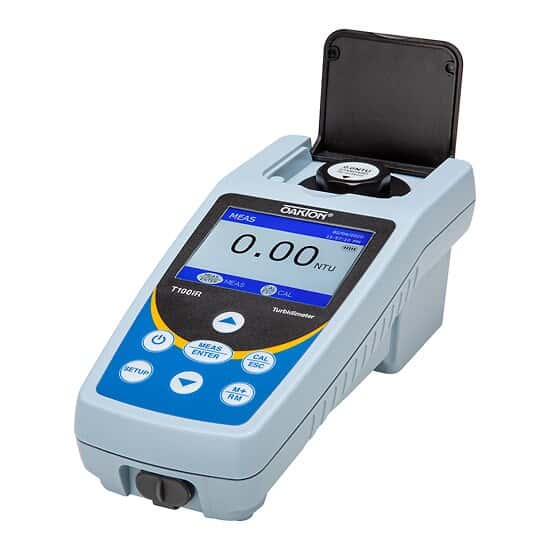

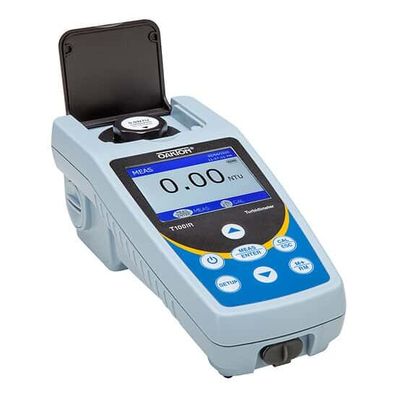

WD-35635-15 T-100IR Portable Infrared Turbidity Meter Kit by Oakton
The Oakton T-100 series portable turbidity meters feature five calibration points—0 NTU, 20 NTU, 100 NTU, 400 NTU, and 800 NTU. The 0 NTU uses laboratory distilled or deionized water, while the other four calibration points are configured using high molecule polymer standard solutions included in the kits. The meters also include normal and continuous measurement modes, parameter setup, data recall, real-time clock, calibration date check, automatic power off, and low voltage indication. The continuous measure mode allows you to automatically generate average, maximum and minimum measured values in a data storage interface, suitable for sample solutions with rapid settling and continuous measurement changes.
The large TFT color screen displays a blue background for measurement mode, green background for calibration mode, and features operation guides for easy calibration and measurement. Up to 200 sets of data can be stored on the meter. A USB interface cable can transfer this data to your computer for future analysis.
- Auto-ranging from 0 to 1000 NTU (FNU)
- Stores up to 200 sets of data
- Suitable for field use—meets IP67 water-resistant requirements
- Infrared light source delivers high accuracy across entire range
- Meets performance criteria as specified by ISO 7027 (DIN EN 27027) method
Includes
Six 25 x 60 mm sample test cuvettes, five 60-mL polymer standard calibration solutions (0.0, 20, 100, 400, and 800 NTU), 10 mL of silicone oil, microfiber wiping cloth, PCLink software on USB flash drive, hard carrying case, rechargeable Lithium battery and USB cable with power adapter.
Meter Type | Portable |
Display type |
TFT color screen |
Min Turbidity | 0 NTU |
Max Turbidity | 1000 NTU |
Turbidity Resolution | 0.01, 0.1, 1 NTU |
Turbidity Accuracy | ≤ ±2% of reading |
Min Temperature (° C) | 0 |
Max Temperature (° C) | 50 |
Min Temperature (° F) | 32 |
Max Temperature (° F) | 122 |
Output | USB |
Memory Size | 500 sets of data |
Waterproof | Yes |
Battery | 4 x AA batteries (included) |
Length (cm) | 20.3 |
Width (cm) | 9 |
Height (cm) | 8 |
Height (cm) | 3 1/2 |
Length (in) | 8 |
Height (in) | 3 |
Description | Portable Infared Turbidity Meter Kit |
