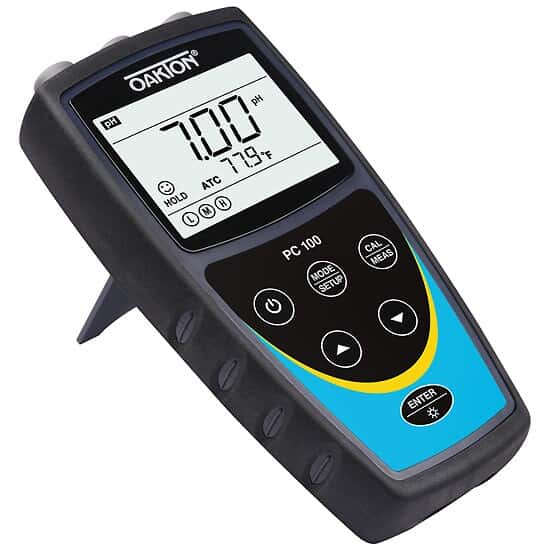

Oakton PC 100 Portable pH/Conductivity Meter Kit with pH, Conductivity, and ATC Probes, Case, and Solutions - WD-35613-46
Item #:
WD-35613-46
Brand:
Oakton Instruments
Share this product:
WD-35613-46 PC 100 Portable pH/Conductivity Meter Kit with pH, Conductivity, and ATC Probes, Case, and Solutions by Oakton
The new addition to the Environmental Express Oakton product line features updates to measuring water quality easier and faster. The larger display is in. by 2.0 in. for better viewing angle, and has indicators for battery life, stability, and calibration. It also shows both the parameter and temperature measurements at the same time. The PC 100 meter measures pH, mV, ORP, conductivity, TDS, salinity, and temperature.
The built-in microprocessor chip enables advanced functions, such as auto calibration, auto temperature compensation, parameter setting, self-diagnosis, auto power-off, and low-battery reminders. The meter uses advanced digital processing technology, intelligently improving the response time and accuracy of your measurements. Stable reading and auto lock display modes are available.
- Measured parameter and temperature shown on display at same time
- Convenient, compact design with large display
- Stability, calibration, and low-battery indicators
- Waterproof and dust-resistant IP57 rating – great for use under harsh environments
Includes
Meter includes three AA batteries
PC 100 portable pH/conductivity meter,EC/ATC, temperature probes, 50 mL pH buffer solutions (pH 4, 7, 10), 50 mL each conductivity calibration solutions (84μS, 1413μS, 12.85 mS), combined electrode clip, and carrying case
Meter Type | pH, mV, ORP, conductivity, TDS, salinity, temperature |
Display type | LCD |
Connections | BNC & Φ2.5 socket |
Min pH (pH) | 0 |
Max pH (pH) | 14 |
pH Resolution | 0.01/0.1 pH |
pH Accuracy | ±0.01 pH |
Buffer Recognition | Automatic recognition of USA, NIST, and user defined pH calibration solutions; Automatic recognition of standard and user-defined conductivity calibration solutions |
Calibration | pH: 1-3 points auto calibration; Conductivity: 1-4 points automatic |
Min mV (mV) | -1000 |
Max mV (mV) | 1000 |
mV Resolution | 0.1 mV from –200 to 200 mV; 1 mV remaining |
mV Accuracy | ±0.2% full-scale |
Min Conductivity | 0 mS/cm |
Max Conductivity | 0.00 to 19.99 μS/cm, 20.0 to 199.9 μS/cm, 200 to 1999 μS/cm; 2.00 to 19.99 mS/cm, 20.0 to 199.9 mS/cm |
Conductivity Resolution | 0.01, 0.1, 1 μS/cm; 0.01, 0.1 mS/cm |
Conductivity Accuracy | ±1.0% full-scale |
Cell | K=1.0 |
Cell Constant | 0.1, 1, 10 cm–1 |
Min TDS | 0 g/L |
Max TDS | 100 μg/L |
TDS Accuracy | ±1.0% full scale |
Min Salinity | 0 ppt |
Max Salinity | 100 ppt |
Salinity Accuracy | ±1.0% full scale |
Min Temperature (° C) | 0 |
Max Temperature (° C) | 100 |
Min Temperature (° F) | 32 |
Max Temperature (° F) | 212 |
Temperature Resolution | 0.1°F/°C |
Temperature Accuracy | ±0.9°F (0.5°C) ±1 digit |
Temperature compensation | 0 to 100°C (manual or automatic) |
Temperature Coefficient | 2.0%/°C |
Waterproof | IP57 |
Battery | 3 AA batteries (1.5 V) |
Battery life (hr) | 400 |
Length (cm) | 9.1 |
Width (cm) | 19 |
Height (cm) | 3.3 |
Width (in) | 7 31/64 |
Length (in) | 3 37/64 |
Height (in) | 1 19/64 |
Stirring Control | No |
NIST Calibration Included | No |
Probe Included | pH, EC/ATC, and temperature probes |
Accessories Included | Electrode clip, carrying case, and solutions |
Description | Oakton PC100 Portable pH/Conductivity Meter Kit with Case, pH, EC, and Temperature Probes, and Solutions |
