Oakton EC 100 Portable Conductivity Meter Kit with Case, EC/ATC Probe, and Solutions - WD-35604-15
Item #:
WD-35604-15
Brand:
Oakton Instruments
Share this product:
WD-35604-15 EC 100 Portable Conductivity Meter Kit with Case, EC/ATC Probe, and Solutions by Oakton

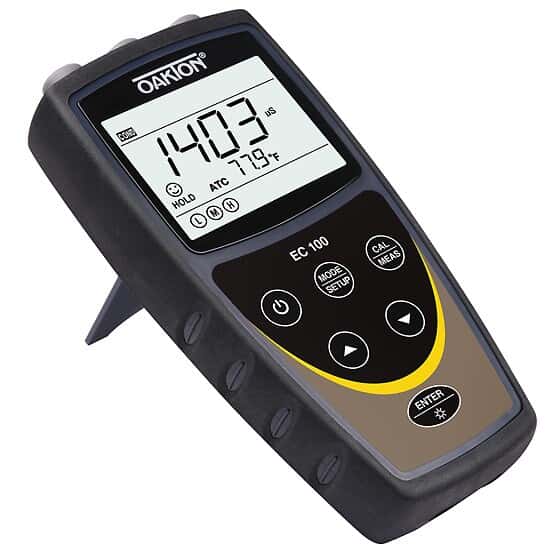

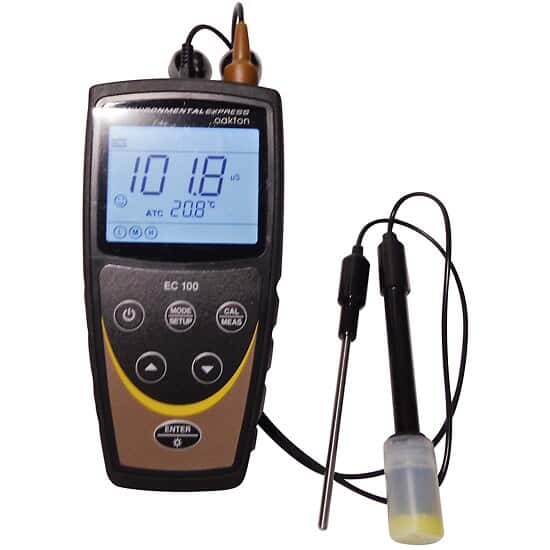

The new addition to the Environmental Express Oakton product line features updates to measuring water quality easier and faster. The larger display is 2.75 in. by 2.0 in. for better viewing angle, and has indicators for battery life, stability, and calibration. It also shows both the parameter and temperature measurements at the same time. The EC 100 meter measures conductivity, TDS, salinity, and temperature.
The built-in microprocessor chip enables advanced functions, such as auto calibration, auto temperature compensation, parameter setting, self-diagnosis, auto power-off, and low-battery reminders. The meter uses advanced digital processing technology, intelligently improving the response time and accuracy of your measurements. Stable reading and auto lock display modes are available.
- Measured parameter and temperature shown on display at same time
- Stability, calibration, and low-battery indicators
- Waterproof and dust-resistant IP57 rating – great for use under harsh environments
INCLUDES
Meter includes three AA batteries.

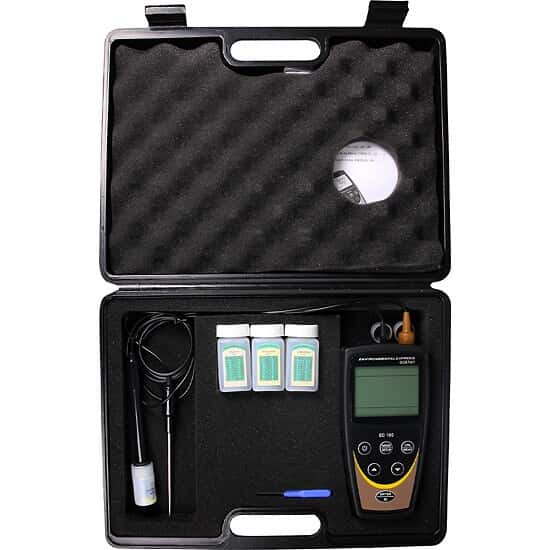

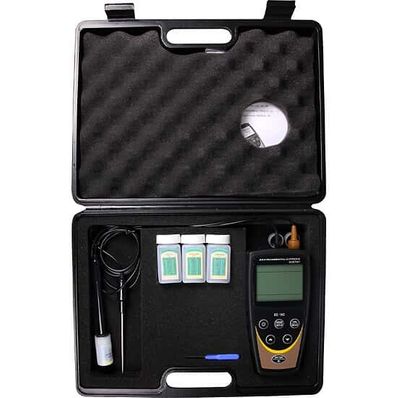

EC 100 portable conductivity meter, plastic conductivity electrode, temperature probe, 50 mL conductivity calibration solutions (84μS, 1413μS, & 12.85 mS, carrying case)
Meter Type | Conductivity, TDS, salinity, temperature |
Display type | LCD |
Connections | BNC & Φ2.5 socket |
Buffer Recognition | Automatic standard and user-defined conductivity calibration solutions |
Calibration | 1-4 points automatic |
Min Conductivity | 0 mS/cm |
Max Conductivity | 0.00 to 19.99 μS/cm, 20.0 to 199.9 μS/cm,200 to 1999 μS/cm; 2.00 to 19.99 mS/cm, 20.0 to 199.9 mS/cm |
Conductivity Resolution | 0.01, 0.1, 1 μS/cm; 0.01, 0.1 mS/cm |
Conductivity Accuracy | ±1.0% full scale |
Cell | K=1.0 |
Cell Constant | 0.1, 1, 10 cm–1 |
Min TDS | 0 g/L |
Max TDS | 100 μg/L |
TDS Accuracy | ±1.0% full scale |
Min Salinity | 0 ppt |
Max Salinity | 100 ppt |
Salinity Accuracy | ±1.0% full scale |
Min Temperature (° C) | 0 |
Max Temperature (° C) | 100 |
Min Temperature (° F) | 32 |
Max Temperature (° F) | 212 |
Temperature Resolution | 0.1°F/°C |
Temperature Accuracy | ±0.9°F (0.5°C) ±1 digit |
Temperature compensation | 0 to 100°C (manual or automatic) |
Temperature Coefficient | 2.0%/°C |
Waterproof | IP57 |
Battery | 3 AA batteries (1.5 V) |
Battery life (hr) | 400 |
Length (cm) | 9.1 |
Width (cm) | 19 |
Height (cm) | 3.3 |
Width (in) | 7 31/64 |
Length (in) | 3 37/64 |
Height (in) | 1 19/64 |
Stirring Control | No |
NIST Calibration Included | No |
Probe Included | EC/temperature (ATC) |
Accessories Included | Carrying case and solutions |
Description | Oakton EC 100 Portable Conductivity Meter Kit with Case, EC and ATC probes, and Solutions |
