Oakton Environmental Express 1500 PC Benchtop Meter Kit - WD-35419-50
Item #:
WD-35419-50
Brand:
Oakton Instruments
Share this product:

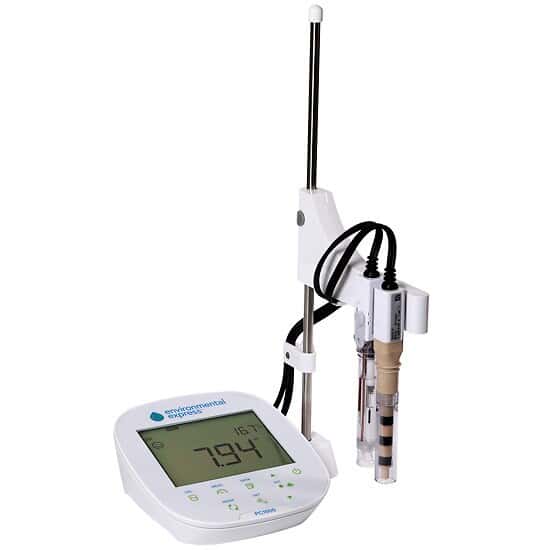

WD-35419-50 Environmental Express 1500 PC Benchtop Meter Kit by Oakton
Measurement parameters available vary by model. pH models measure pH and ORP/mV readings. EC models measure conductivity, TDS, salinity, and resistivity. PC models measure pH, ORP/mV, conductivity, TDS, salinity, and resistivity. Users can choose the part number that best fits their needs. In addition to measurement parameters, each model can be bought as a kit or a meter only (meter only versions include the integrated electrode stand).
- Large monochrome LCD
- Integrated electrode holder (up to 2 electrodes) that can be attached to either side of the meter
- Simple user interface and single parameter display
- 1000 Memory data points
- Automatic Temperature Compensation (ATC) with temperature calibration
- Adjustable auto shut-off time (1 to 30 minutes)
- Auto stable, auto hold, and real time measurement modes with reading stability indicators
- PC (standard USB) / printer (25 pin serial) connection via 2.5 mm diameter phono jack
Includes
Meter kits include
| Meter Type | Benchtop |
| Display type | Static segment LCD with 160 segments |

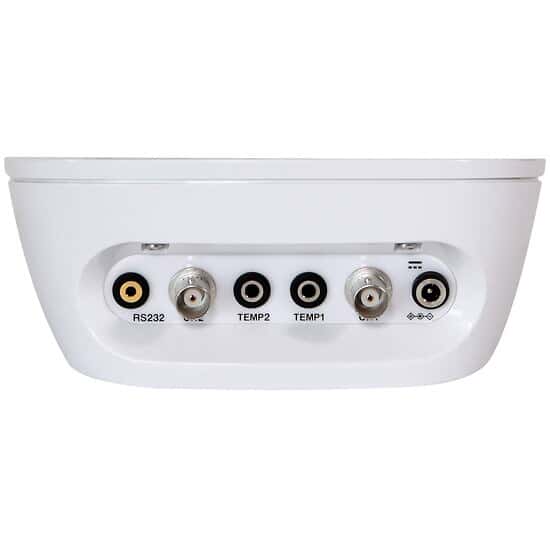

| Connections | BNC, phono (ATC), DC sockets |
| Min pH (pH) | 2 |
| Max pH (pH) | 16 |
| pH Resolution | 0.01 pH |
| pH Accuracy | ± 0.01 pH |
| Buffer Recognition | Yes |
| Calibration | Yes |
| Min mV (mV) | -2000 |
| Max mV (mV) | 2000 |
| mV Resolution | 0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV) |
| mV Accuracy | ±0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV) |
| Max Conductivity | 0.00 – 20.00 μS, 20.1 – 200.0 μS, 201– 2000 μS, 2.01 – 20.00 mS, 20.1 – 200.0 mS |
| Conductivity Resolution | 0.01 / 0.1 |
| Conductivity Accuracy | ±0.6% full scale; ±1.5% full scale > 18.0 mS/cm |
| Max TDS | 0 – 10.00 ppm, 10.1 – 100.0 ppm, 101 – 1000 ppm, 1.01 – 10.00 ppt, 10.1 – 100 ppt |
| TDS Resolution | 0.01 / 0.1 / 1 ppm ; 0.01 / 0.1 ppt |
| TDS Accuracy | ±0.1% full scale |
| Min Salinity | 0.0 ppt / 0.00% |
| Max Salinity | 100.0 ppt / 10.00 % |
| Salinity Resolution | 0.1 ppt / 0.01% |
| Salinity Accuracy | ±0.2% full scale |
| Min Resistivity | 0.000 Ω•cm |
| Max Resistivity | 20.0 MΩ•cm |
| Resistivity Resolution | 0.5% full scale |
| Resistivity Accuracy | ±0.6% full scale, ±1.5% full scale > 1.80 MΩ•cm |
| Min Temperature (° C) | -30 |
| Max Temperature (° C) | 130 |
| Min Temperature (° F) | -22 |
| Max Temperature (° F) | 266 |
| Temperature Resolution | 0.1 °C / °F |
| Temperature Accuracy | ± 0.5 °C / ± 0.9 °F |
| Temperature compensation | Yes |
| Output | Phono jack (to USB / RS-232) |
| Data Logging (points) | 1000 data points |
| Memory Size | 1000 data points |
| Power (VAC) | 100 to 240 |
| Power (Hz) | 50/60 |
| Number of Positions | 2 |
| Probe Included | Yes |
| Description | PC Benchtop Meter Kit |
