Oakton Cole-Parmer Insertion/Submersion pH Probe; DJ/CPVC/100Ohm RTD; Tinned/BNC - WD-27301-23
Item #:
WD-27301-23
Brand:
Oakton Instruments
Share this product:

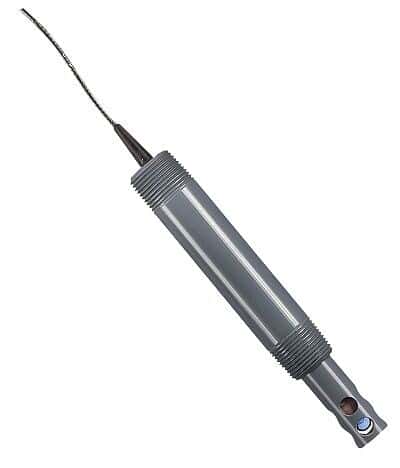

WD-27301-23 Cole-Parmer Insertion/Submersion pH Probe; DJ/CPVC/100Ohm RTD; Tinned/BNC by Oakton
In-line or submersible electrodes with probe guard operate from 23 to 176°>F (-5 to 80°>C) and have a PVC housing with a 3/4" NPT(M) fitting on both ends. Epoxy body withstands pressures to 100 psi. Measure pH from 0 to 14. All electrodes measure 6-3/4"L x 1" OD, with a 1-3/4" insertion depth.
Note: 100Ω RTD ATC elements are platinum and conform to DIN curve 43760. ATC connector is miniature audio plug.
Connector for the 1 kΩ RTD and the 3 kΩ Balco ATC elements is a spade lug.
Connector for 100 kΩ thermistor ATC elements is a standard 1/4" phone plug.
Electrode Type | Double junction |
Electrode Body Material | CPVC |
Min pH (pH) | 14 |
Max Temperature (° C) | 80 |
Temperature Compensation | Yes |
Max Pressure (PSI) | 100 |
Thread Size NPT(M) (in) | 3/4 |
ATC Connector | Tinned ends |
ATC Element | 100 Ω Pt RTD |
Connector | BNC |
Cable Length (m) | 3 |
Description | Insertion/Submersion pH Probe; DJ/CPVC/100Ohm RTD; Tinned/BNC |
