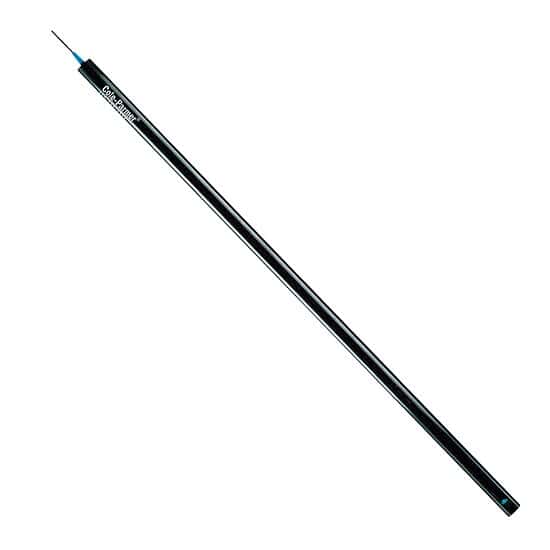

Oakton Cole-Parmer® Submersible 3' L pH Probe, SJ/ABS/100Ohm RTD; Plug/BNC - WD-05993-81

Item #:

WD-05993-81

Brand:

Oakton Instruments

Oakton Cole-Parmer® Submersible 3' L pH Probe, SJ/ABS/100Ohm RTD; Plug/BNC - WD-05993-81

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

WD-05993-81 Cole-Parmer® Submersible 3' L pH Probe, SJ/ABS/100Ohm RTD; Plug/BNC by Oakton

Submersible electrodes operate from 32 to 176°>F (0 to 80°>C). Submerse up to the cable. Measure pH from 0 to 13. Electrodes are potted in a 3 ft L x 1-1/16" diameter ABS sheath. Ideal for meassurements in open containers such as tanks or troughs.

Note: 100Ω RTD ATC elements are platinum and conform to DIN curve 43760. ATC connector is miniature audio plug.
Connector for the 1 kΩ RTD and the 3 kΩ Balco ATC elements is a spade lug.
Connector for 100 kΩ thermistor ATC elemen

Specifications

Applications	Submersible
Electrode Type	Single junction
Electrode Body Material	ABS plastic
Min pH (pH)	13
Max Temperature (° C)	80
Temperature Compensation	Yes
ATC Connector	Mini-audio plug
ATC Element	100 Ω Pt RTD
Connector	BNC
Diameter (mm)	27
Length (mm)	914.4
Length (in)	36
Cable Length (m)	3
Description	Submersible 3' L pH Probe, SJ/ABS/100Ohm RTD; Plug/BNC
