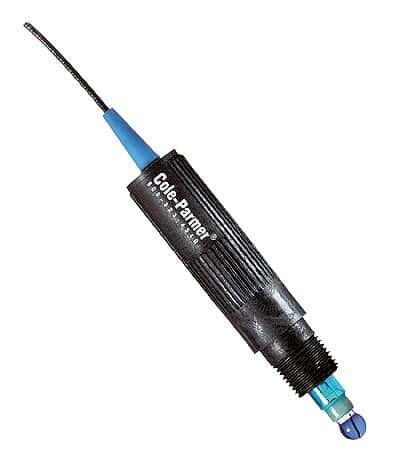

Oakton Cole-ParmerŪ In-Line pH Probe, DJ/PVDF/100Ohm RTD/10'; Tinned/BNC - WD-27001-72

WD-27001-72 Cole-Parmer® In-Line pH Probe, DJ/PVDF/100Ohm RTD/10'; Tinned/BNC by Oakton

In-line electrodes operate from 32 to 212°F (0 to 100°C) and have a chemical-resistant PVDF housing with a 1/2'' NPT(M) thread. Housing measures 4" x 15/16" diameter. Electrode extends 1" beyond housing. Maximum pressure 100 psi. Measure pH from 0 to 13.

Note: 100 Ω RTD ATC elements are platinum and conform to DIN curve 43760. ATC connector is miniature audio plug.
Connector for the 1 kΩ RTD and the 3 kΩ Balco ATC elements is a spade lug.
Connector for 100 kΩ

• Choose from single-junction or double-junction designs
• Options of BNC or stripped and tinned ends
