Oasis Scientific ViTiny UM07 2.0MP Handheld USB Digital Borescope Endoscope Microscope with 8.2mm Tube Diameter

ViTiny UM07 2.0MP Handheld USB Digital Borescope Endoscope Microscope with 8.2mm Tube Diameter by Oasis Scientific

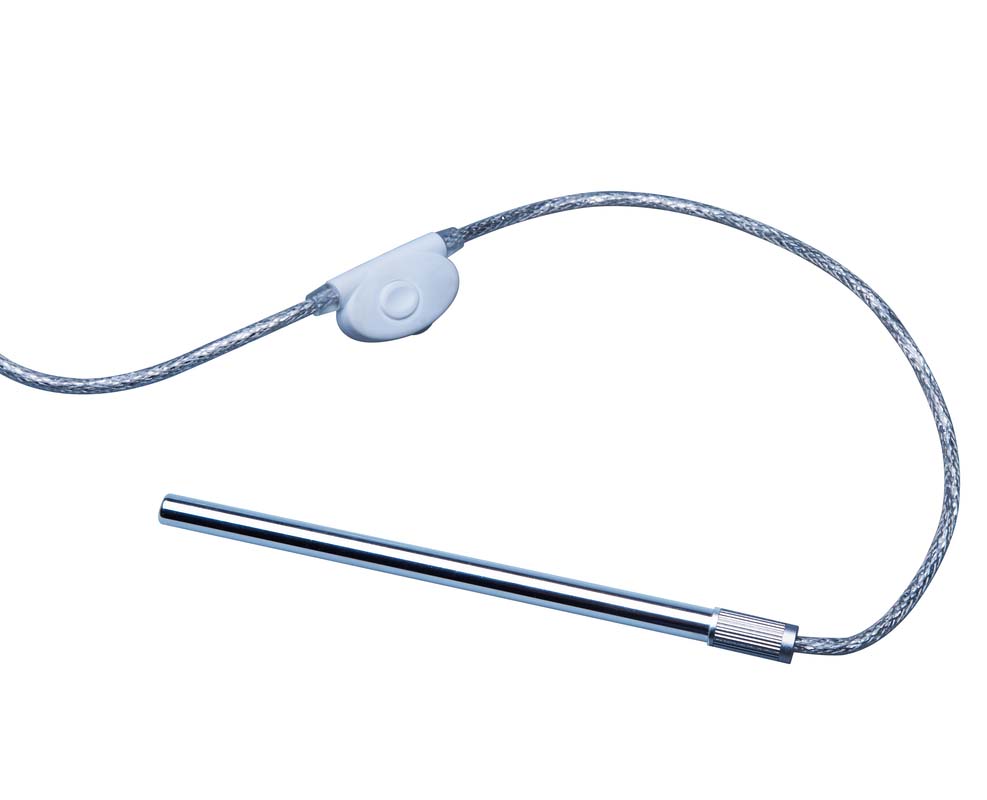

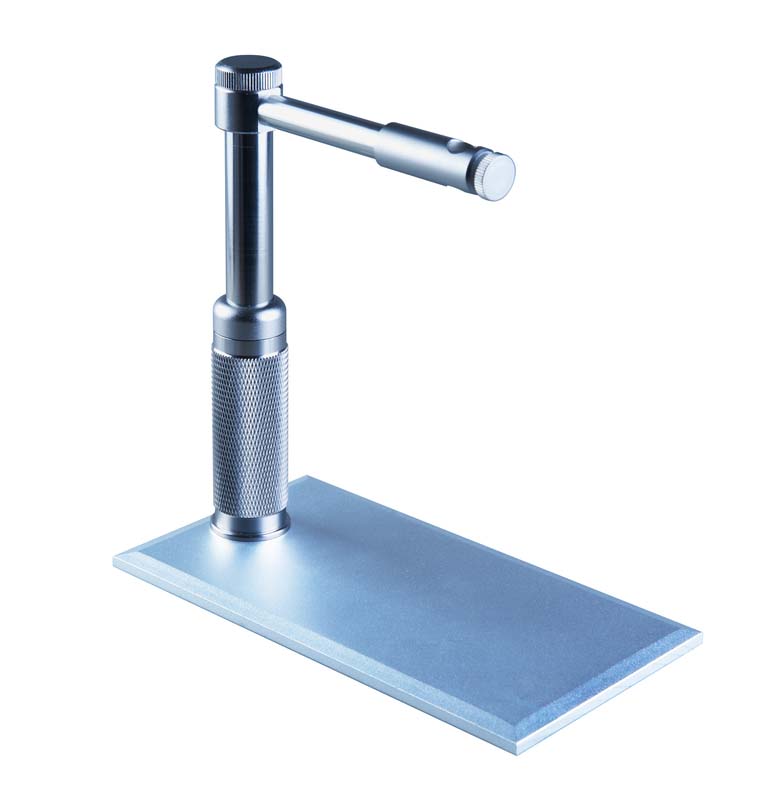

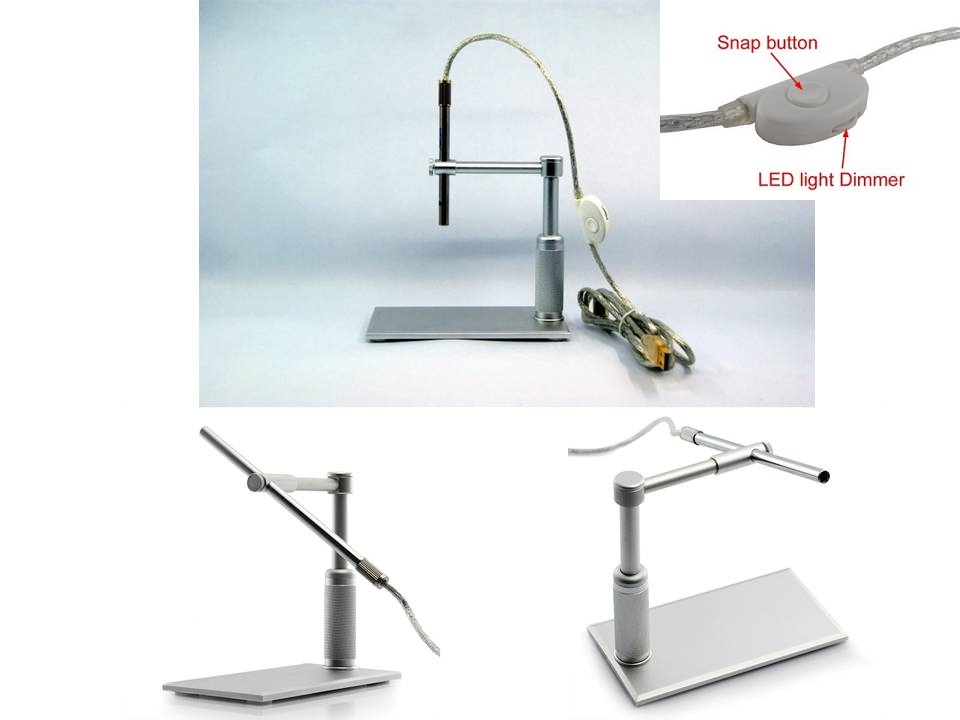

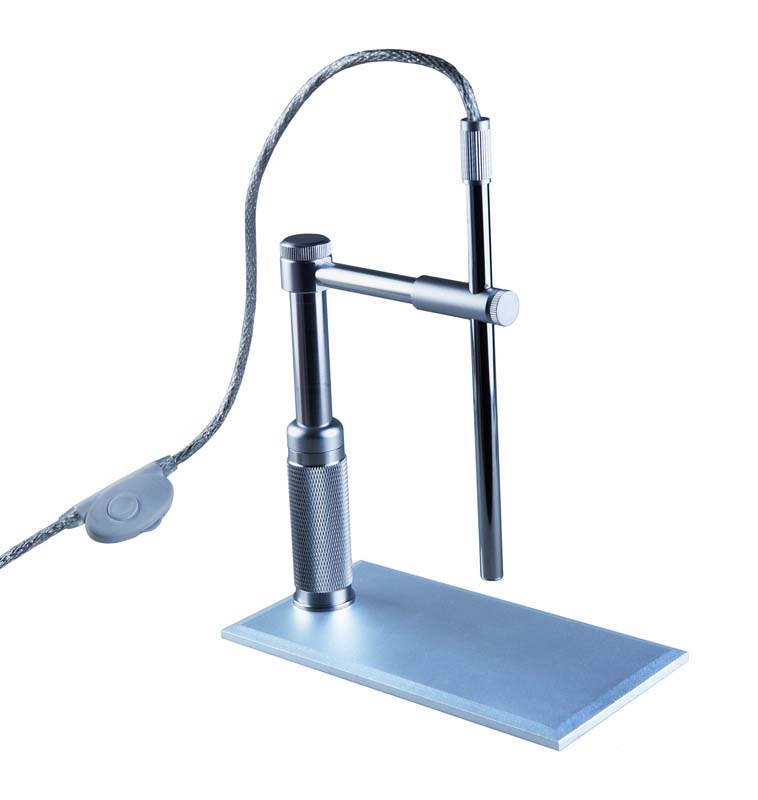

Connect digital endoscope to your computer with USB cable included, and inspect small details right on your computer screen! With 2.0M pixels CMOS sensor, up to 270x magnification, and six built-in LEDs for illumination, this product allows you to view images in high resolution, take standard photos, record videos, and use as a webcam. It is easy to take snapshot by hardware button or by software control. The endoscope comes with an adjustable aluminum alloy stand, and a set of accessories (reflector tube, rubber sleeve, plastic sleeves) which can be attached to the endoscope for different inspection purposes. ViTiny UM07 is controlled directly with the advanced application software which is bundled with the microscope. This state-of-the art software enables users to capture, measure, store and view images and videos in real time. The endoscope is multi-functional. It can be used for inspecting hard-to-reach places such as the inside of engines, machines, tubing, pipes, etc. It is also ideal for a variety of applications including textile inspection, detailed repair, printing inspection, computer parts inspection, nature observation, reading aid, collectables examination (coins, antiques), and health (skin and ear) examination.

Product Details:

• Dimension: 8.2mm in tube diameter and 165mm in tube length
• Reflector Tube Diameter: 9.7mm
• Weight: 85g (2.9oz)
• Compatibility: Windows 7/Vista/XP, MAC OS x 10.8 or later (note: for MAC, use Photo Booth or Facetime to open it. No software for MAC at this time).
• Package Includes: USB Digital Endoscope (1x), Reflector Tube (1x), Rubber Sleeve (1x), Plastic Sleeves (2x), Software CD (1x), User’s Manual (1x), Calibrator for Measurement Application (1x), and Adjustable Aluminum Alloy Stand (1x)
• Manufacturer’s Warranty: 1 year

Technical Details:

• Lens & CMOS Sensor: 2.0M pixels
• Still Image Resolution: 1600X1200 pixels
• Still Image Format: JPG, BMP
• Video Resolution: 1600X1200 pixels
• Video Format: AVI
• Video Frame Rate: 30FPS
• Focal Distance: 5mm – infinity (when focal distance is infinity, the microscope cannot magnify, but can be used as a webcam)
• Magnification: 5X - 270X (adjustable) on 22” monitor
• Illumination: 6 white LEDs with adjustable brightness
• PC Interface: USB 2.0
• USB Cable Length: 200cm
• Include Advanced Application Software
• Multi functions: Image comparison mode, Video control mode (left-right, up-down), Aiming aid
• Measurement Tools: Measure line, circle, ellipse, square, rectangle, area, angle, etc.
• Time lapse photography including image converting into video, video converting into image
