Industrial Scientific TGX Gateway, US/Canada, Cell and Satellite - TGX-221
Item #:
TGX-221
Brand:
Industrial Scientific
Share this product:

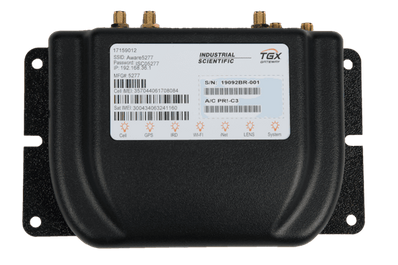

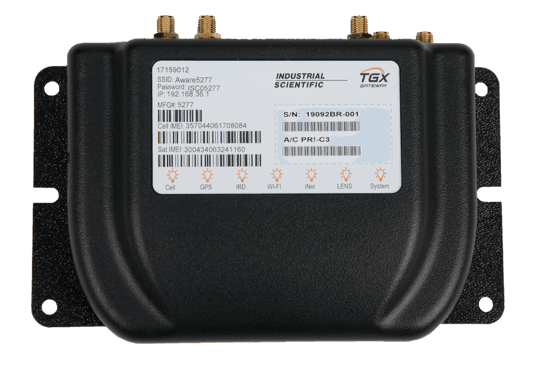

TGX-221 TGX Gateway, US/Canada, Cell and Satellite by Industrial Scientific
Get real-time location, status, and gas alarm data from mobile workers in remote locations using the vehicle-installed TGX Gateway
- Real-time visibility into the location and wellbeing of mobile workers in remote areas without cellular coverage.
- Email, text, and on-screen alerts when alarms occur, ensuring the right messages get to the right people at the right time
- Dual cellular and satellite connectivity ensures communication coverage at all times
- Monitor up to 24 instruments at once
- Vehicle-installed device eliminates charging and ensures a reliable power source
| WARRANTY | 2 years |
| DIMENSIONS | 102 x 102 x 76 mm |
| WEIGHT | 280 g |
| ENVIRONMENTAL | Operating temperature: -40 °C to 80 °C (-40 °F to 176 °F) |
| COMMUNICATION | CELLULAR Cellular (2G): Quad band 850/900/1800/1900MHz Cellular (3G/HSPA): Pentaband 800/850/900/1900/2100MHz Antenna: external SATELLITE Iridium Antenna: external |
| LOCATION | GPS (NMEA protocol) Antenna: external Accuracy: ~5 m (16 ft) outdoors |
| POWER REQUIREMENT | Input: 9-30VDC, 12VDC @ 300mA |
| REGULATORY | FCC, IC & PTCRB compliant RoHS compliant |
| COMPATIBILITY | Works with Ventis® Pro5 Multi-Gas Monitors and Radius® BZ1 Area Monitors |
| LENS | Frequency: ISM license-free band (2.4 GHz) Max Instruments: 25 devices (including TGX) |
| RANGE | TGX Gateway to RGX Gateway 300 m (~1,000 ft) line of sight TGX Gateway to Radius® BZ1 300 m (~1,000 ft) line of sight TGX Gateway to Ventis® Pro5 100 m (~300 ft) line of sight |
