Model 192

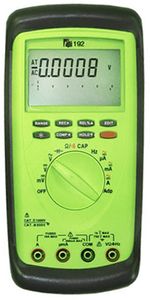

192 True RMS 50,000 count DMM with Inductance by Test Products International

The Triple Display 192 is an innovative new concept in DMM design. The unique display enables you to view more than one event at a time. This eliminates the hassle of switching back and forth to review minimum, maximum or preset comparative values. The meter is also easy to use and built to last.

The DMM 192 is a hand-held autoranging DMM. The backlit LCD can display three readings at one time. In addition to basic function of AC/DC V, AC/DC A, Ohm, Diode test, continuity, Capacitance, Frequency, there is the adaptor function. The meter also has RS232 output and software for recording information into a PC.

Features:

• REC: Records Min/Max and Average readings during specified measurement intervals.
• COMP: Compare actual reading to preset HI and LOW value for Pass/Fail testing of component
• Hold: Tow hold system automatically holds the previous stable reading when a new one is obtained.
• Data logging
• 50,000 count display
• 0.05% DCV basic accuracy
• Inductance, Frequency and Capacitance
• 0 to 750 ACV; max resolution 100uV
• 0 to 1,000 DCV: max resolution 0.001mV
• 0 to 50MΩ; max resolution 0.01Ω
• Audible continuity
• AC/DC amps up to10 amps; resolution 0.01 uA
• Analog bar graph
• cULus 61010-1
• CATIII-1000VC, CATIII-1000V, CAT IV-600V, CAT III 1000V
• True RMS DMM
• Time Stamp Logging
• Optional PC Output with A192
• Pulse Width
• Duty cycle (% pulse width modulation) for measuring modulating gas valves

Applications:

• Thermocouples in furnaces or gas applications
• Heat anticipator current in thermostats
• Line voltage
• Control circuit voltage
• Flame safeguard control current
• Heating element resistance (continuity)
• Compressor winding resistance
• Contactor and relay coil resistance
• Continuity of wiring
• Motor start and run capacitance
• Frequency on controls and line voltages
• Record min/max voltage of controls and line voltages
• Temperature with optional temperature adapter (A310)
• Bar graph to indicate rapid fluctuations in measurements
• Voltage of direct drive DC motors
• Measure power supply voltage
• Match components
• Compare readings in circuits and components
• Frequency of line and control voltage
