Model 620

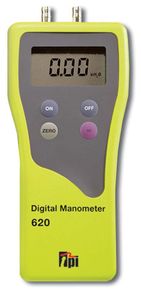

620 Dual Input Differential Manometer by Test Products International

Dual Differential Input Manometer with ±80 inH2O range and 0.01 in H2O resolution. Auto power off, Backlight display, Zero function, Trim mode to stabilize readings.

The TPI 600 series is a hand held range of pressure meters and can be summarized as follows.

• TPI 610 Single Input - 4 Function - single unit of pressure
• TPI 615 Single Input - 7 Function - 7 units of pressure
• TPI 620 Dual Input – differential – 4 Function – single unit of pressure
• TPI 625 Dual Input – differential – 7 Function – 7 units of pressure

All these models measure over the range of -40.0 to +120.0 mbar. Each unit has increased resolution of 0.01 mbar and automatically auto-ranges at + 19.00 mbar to 0.1 mbar resolution. Each model is supplied complete with carry pouch, battery and instruction manual.

Features:

• Differential input with ± 80" H2O range
• Display - 4 digit with backlight
• Smooth - Stabilizes display when measuring fluctuating pressures
• Auto Off: Conserve battery power

Standard Accessories (Included):

• 9V Alkaline battery (A009A)
• Soft Pouch (A600)
• Silicone Tube with 1/4" barbed 1/8" NPT fitting
