Sky-Watcher Stargate 500P Truss-Tube Dobsonian Telescope - S11910
Item #:
SW-S11910
Brand:
Sky-Watcher
Share this product:

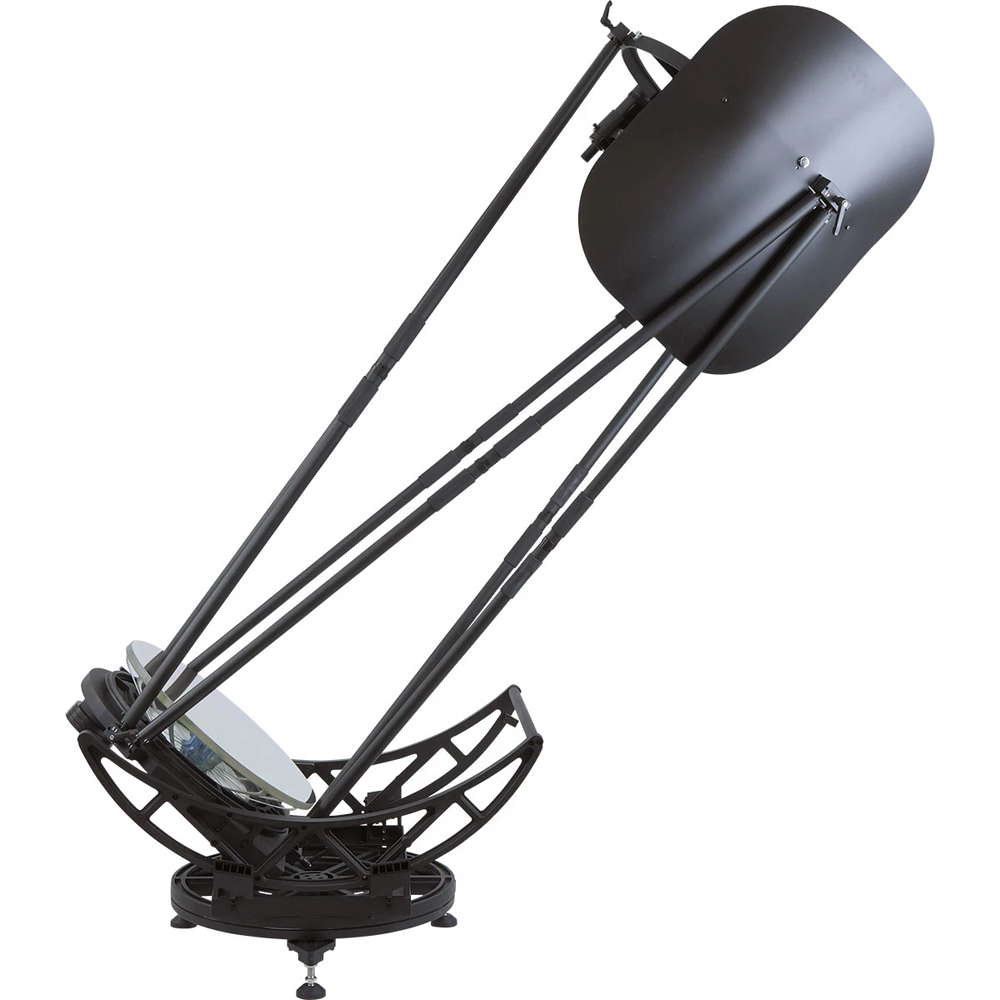

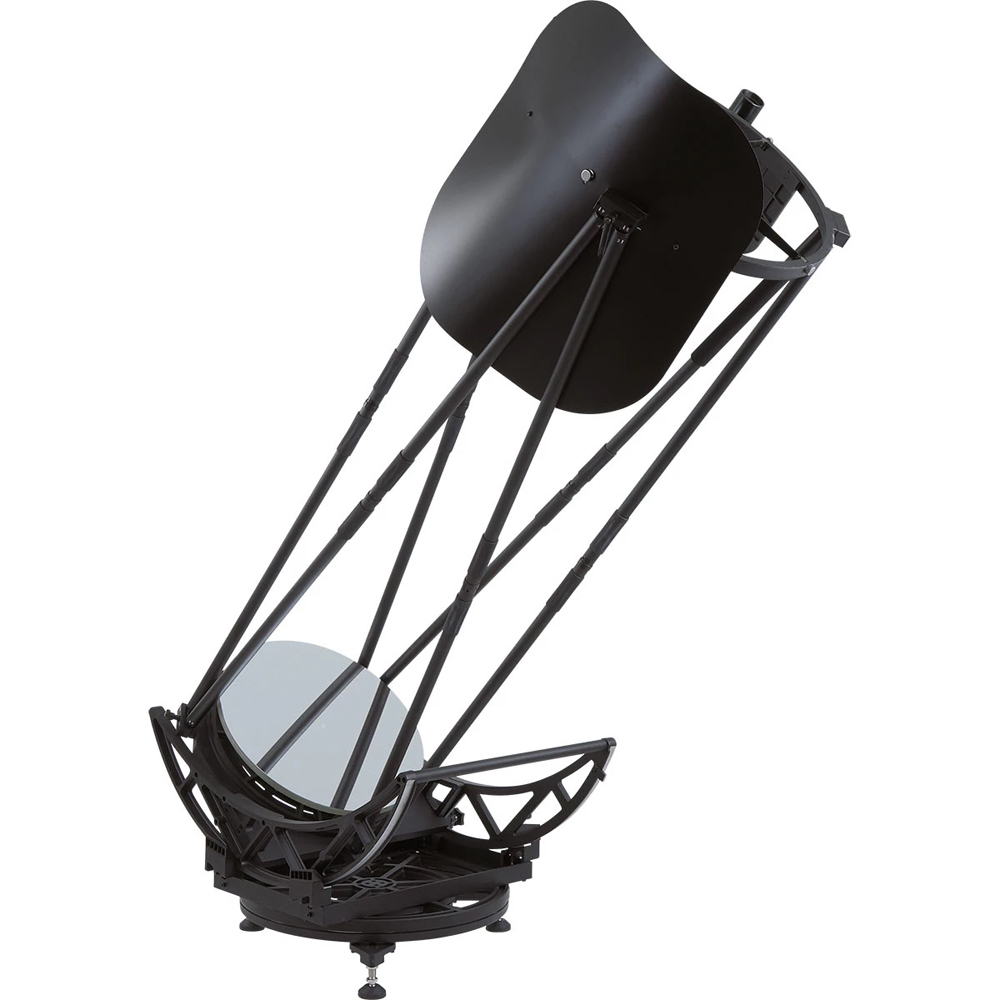

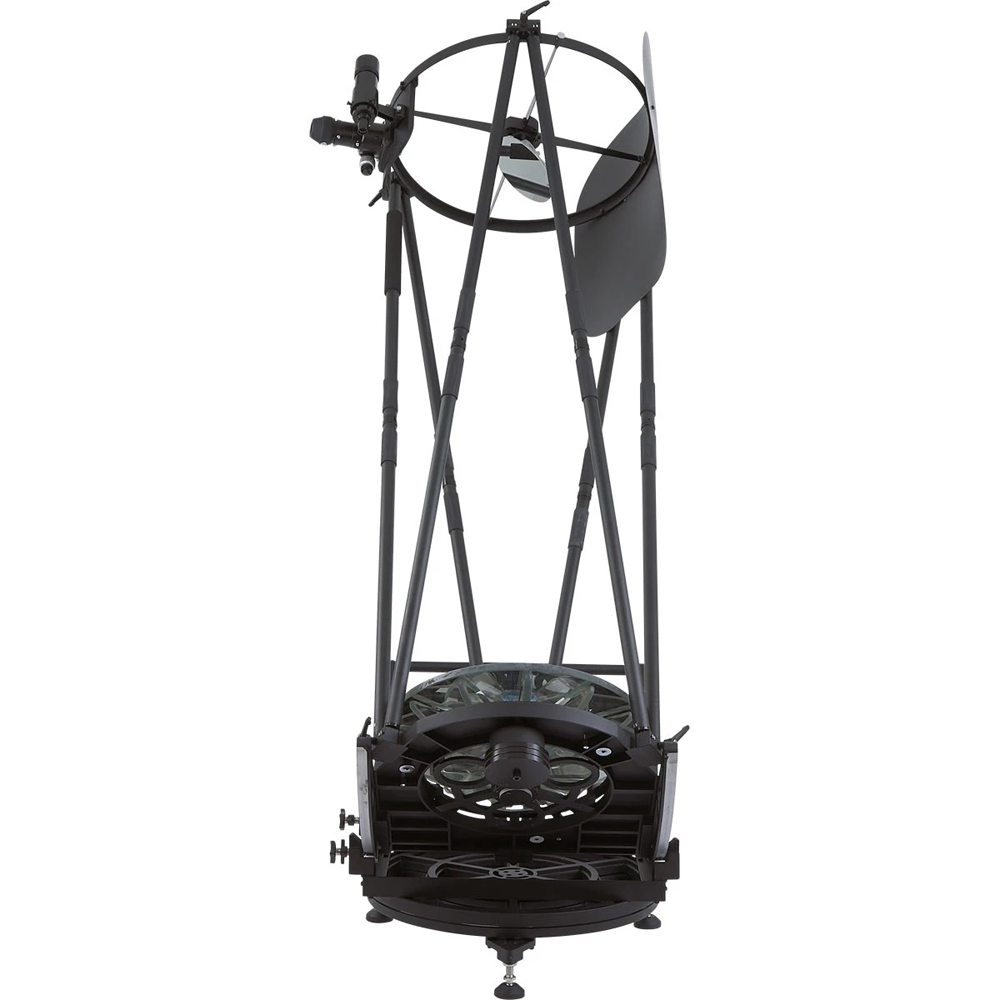

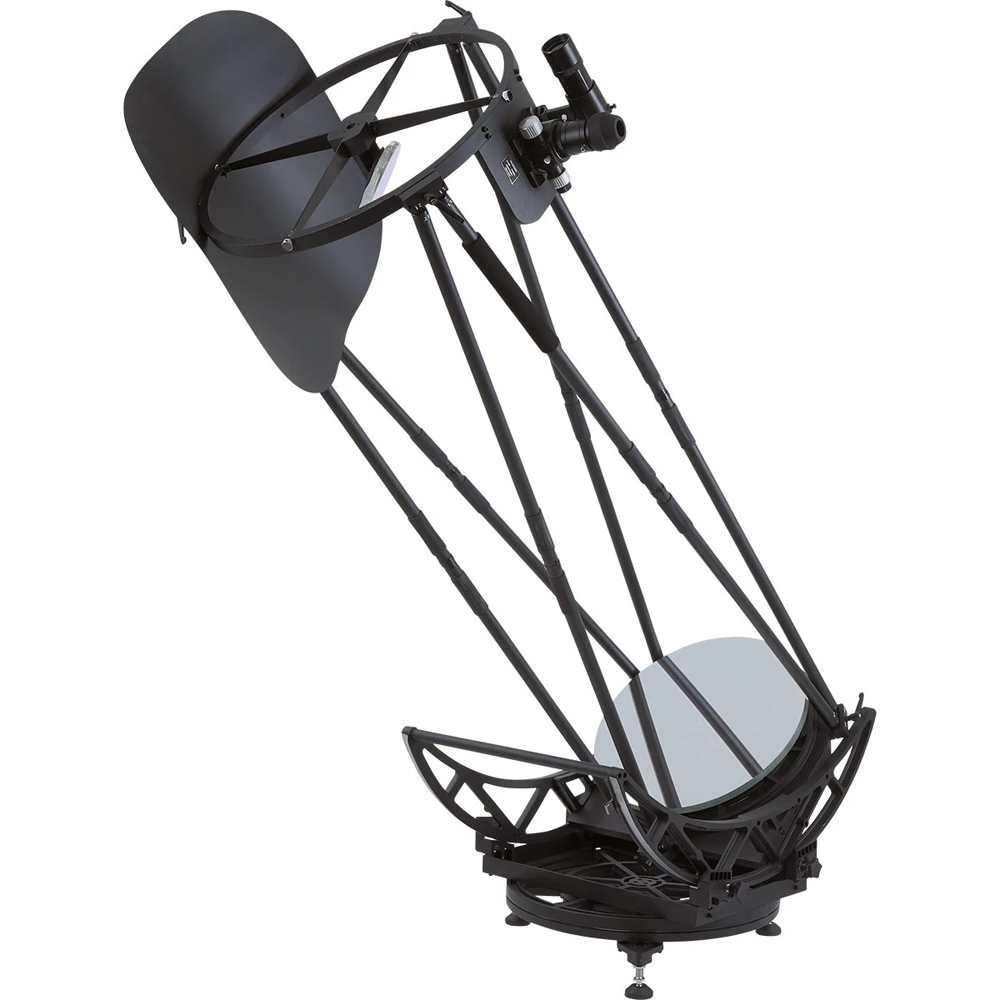

S11910 Stargate 500P Truss-Tube Dobsonian Telescope by Sky-Watcher
Our superior optics just got better
Stargate's feature Sky-Watcher's exclusive fused conical parabolic mirrors. The fused design allows for thinner mirror construction that provides faster cooling and lighter weight.
Combined with the cast cellular secondary mirror and Sky-Watcher's exclusive 94% reflectivity coatings, Stargate delivers bright, detailed views of your favorite deep sky objects. The 18 inch model captures 27% more light than our 16 inch, while the 20 inch (a full half meter of aperture) boasts a monster 56% more light gathering power.
Solid foundations, easy assembly
The minimalist all-metal structure of the Stargate produces a sturdy and stable platform while maintaining a convenient and compact footprint. The truss-tubes break down to a very manageable 36 inch length for easy transport. Azimuth and altitude bearings are steel and Teflon for smooth, steady movement.
Setting up a Stargate is a simple procedure, taking only about 20 minutes. Spring loaded truss anchor points are clearly labeled to eliminate any frustration or confusion. Adjustable feet make leveling a snap.
- Fused conical primary mirror
- Cellular secondary mirror
- Dual speed 2" Crayford focuser
- Two section truss poles (compact transport)
- Minimalist, all metal construction
- Fast f/3.95 optics for short eyepiece heights
- 20" provides 56% more light than a 16" telescope
- 94% reflectivity coatings
SKU | S11910 |
UPC | 050234119108 |
Optical Info | |
Optical Design | Newtonian |
Mirror Coatings | 94% Aluminum |
Glass Type | Borosilicate |
Primary Aperture (mm) | 508 | F/Ratio | 3.93 |
Focal Length (mm) | 2000 |
Secondary Diameter | 134mm |
Secondary Obstruction (by diameter) | 26% |
Secondary Obstruction by Area | 7% |
Observational Info | |
Dawes Limit | 0.23 |
Rayleigh Limit | 0.28 |
Limiting Mag. | 16 |
Minimum Magnification | 72 |
Maximum Magnification | 1000 |
Light Gathering (compared to next size down) | 23% |
General Info | |
Focuser | 2" Dual Speed Crayford |
Zenith Eyepiece Height | 79" |
Dob Base Weight | 40 lbs |
Upper Cage Weight | 12 lbs |
Truss Pole Weight | 2.6 lbs each. 16 lbs total |
Mirror Box Weight | 70 lbs |
Full Assembled Weight (with weights) | 138 lbs |
Accessories | |
Included Finder | 9x50 Finder |
Included Diagonal | No |
Included Eyepieces | 28 LET/10mm/Coll. |
Magnification w/ Included Eyepieces | 71x/200x |
Included Case | No |
Corrector | No |
Other Included Accessories | 2.3lbs counter weights (3), Shroud, Truss clamps |
