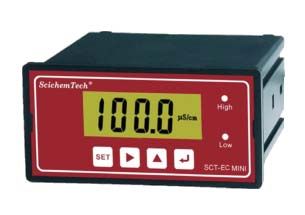

SCT-108.005.05 SCT-EC-MINI-HR EC Mini HR Controller by ScichemTech

SCT �EC MINI-HR online Conductivity controller is an panel Instrument for online monitoring of Industrial process conductivity
Simple and compact design
Three ranges of conductivity measurements in on single controller
Range switch over and constant check can be easily adjusted from the rear panel.
Unique signal collecting and processing technology.
Special think film circuit for accurate measurement and stable operations.
Linearized data and automatic temperature compensations.
In line measurement and control of conductivity.
Conductivity electrode is supplied with 5 meter cable.

Measuring range	0~19.99mS/cm
Display	liquid-crystal display with 3½ bit LCD Segment code
Accuracy	1.5% (FS)
Stability	±2×10-3(FS)/24h
Work pressure	0~0.5mpa
Media temperature	0~50°C
Temperature compensation	With 25°C as the reference point, digital compensation
Optional electrode	1.0cm-1 ,1/2″pipe thread
Cable length	5m in normal condition
Environment conditions	Temperature: 0~50°C; humidity: ≤85%rh
Power supply	AC 220v±10% 50hz
Overall dimension	48×96×100mm (height x width x depth)
Face opening	45×92mm
Installation method	Panel-mounted
