ScichemTech SCT-ORP-MINI ORP Mini Controller - SCT-108.005.02
Item #:
SCT-108-005-02
Brand:
ScichemTech
Share this product:

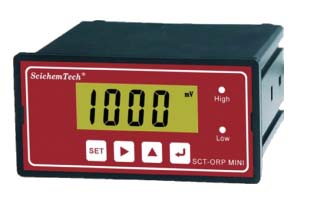

SCT-108.005.02 SCT-ORP-MINI ORP Mini Controller by ScichemTech
Includes:
- ORP probe
- Fixation clamps
- Solution
- Instruction manual
Features:
- SCT –ORP MINI online ORP controller is an Industrial online analysis and monitoring instruments
- Simple and Compact design
- Meets all the International Standards
- Easy to Install, Operates safety with less maintenance.
- ORP Electrode Supplied with standard 10 meter cable, Measurement up to 40 meters.
- Large and clear display for easy reading
- Inlin e measurement and control of ORP values
| ORP Measurement range | ±1000mV |
| Resolution | ±2mV |
| Accuracy | ±2mV |
| Display | 3 1/2-digit apheliotropic liquid crystal display |
| Pressure resistance of the electrode | 0~0.6MPa |
| Power supply | AC 220V±10% 50Hz |
| Measuring distance | no larger than 40m (standard configuration of electrode cable is 10m) |
| Contact capacity | 3A/AC 250V (resistive load) |
| Temperature of measured solution | 0~80°C |
| Environmental conditions | Temp : 0 to 50°C Humidity: ≤85% |
| Overall dimension | 48×96×100mm (height × width × depth) |
| Opening of dial plate | 45×91mm |
| Installation method | panel-mounted |
