ScichemTech SCT SEDIMENT-3 Portable & Automated Silt Density Index Meter 220VAC - SCT-108.004.03
Item #:
SCT-108-004-03
Brand:
ScichemTech
Share this product:

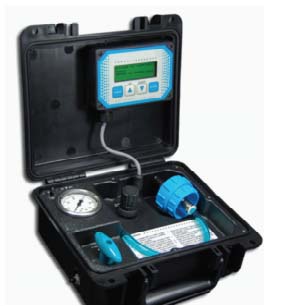

SCT-108.004.03 SCT SEDIMENT-3 Portable & Automated Silt Density Index Meter 220VAC by ScichemTech
Includes:
- Power Supply
- Battery Charger
- Accessory Case
- Pack of 100 each
- .45 micron 47 mm membrane filters
- Special Tweezers for handling of the membranes
- A 50 micron pre-filter
Features:
- Performs SDI 5, 10 and 15 minute tests with both 100 ml and 500 ml sample size tests – provides useful data that’s impossible to obtain with the manual method. Especially helpful on high SDI waters.
- Unattended operation. Start the test and return in 15 minutes for the results – saves you time.
- Real-time display of results including SDI, current flow rate and elapsed time. End of test display includes SDI 5,10 & 15 with 100 ml and 500 ml results.
- More accurate than hand testing (ASTM D 4189-95) - consistent results provides better information.
- Battery powered for true portability – conduct tests anywhere.
- Uses standard 47 mm membrane filters – for lower consumable cost and worldwide availability
Sample Water Pressure | 35-100 psi |
Sample Water Temperature | 35-100°F |
Sample water Solids | Free of solids. Filter to 50 microns minimum. |
Inlet | 1/4” OD tubing. |
Power Supply | 110VAC-9VDC 500mA, 220VAC-9VDC 500mA Pls specify upon ordering |
Battery | 6V 1.3 AH SLA type.13 hours testing/charge. |
Weight | 7 lbs, (3.2 kg) |
Dimensions Inch (mm)WXDXH | 10.75 (273) 9.75 (248) 5 (127) |
