Atago Automatic Polarimeter/Saccharimeter - SAC-i
Item #:
SAC-i
Brand:
Atago U.S.A.
Share this product:

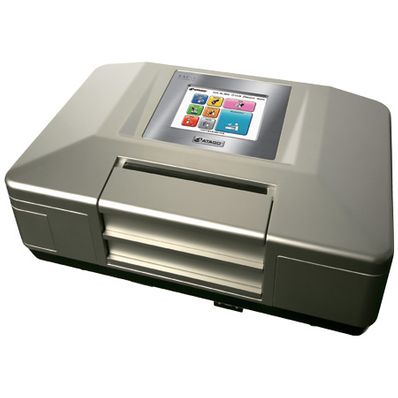

SAC-i Automatic Polarimeter/Saccharimeter by Atago U.S.A.
ATAGO's Polarimeters measure the optical rotation of optically active substances such as saccharide, ascorbic acid, sodium glutamate and others.
Here at last - the product of our uncompromising pursuit of ultimate usability.
- Measurement stability in 13 seconds (4 seconds in the high-speed & consecutive measurement mode)
- Resolution of up to 3 decimal places
- Repeatability of ±0.003° Angle of Rotation and ±0.009°Z
- Up to 999 automatic consecutive measurements followed by average value display
- Sleep & timer feature to take measurement later at specified time
- Improved usability with the use of touch screen technology
- Connectivity to RX Digital Refractometers for automatic purity measurement
| Measurement Scales | Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation), Specific Rotation, Concentration, Purity, and Angle of Rotation (Temperature Compensation of Quartz Plate) |
| Measurement Range | Angle of Rotation -89.999 to +90.000° or -360 to +360° International Sugar Scale -259 to +259° |
| Resolution | Angle of Rotation 0.001° International Sugar Scale 0.001°Z |
| Measurement Accuracy | Angle of Rotation Displayed value ±0.005° (-45 to +45°) International Sugar Scale Displayed value ±0.015°Z (-130 to +130°Z) (With a Standard Quartz Plate) |
| Repeatability | ±0.003° Angle of Rotation and ±0.009°Z |
| Sensitivity | up to OD2* *OD = optical density: a measureof light absorbance. OD2 = 1/100 attenuation and 1% transmission. |
| Temperature compensation range for International Sugar Scale | 10 to 40°C |
| Display Panel | 7.5 inch color LCD (touch screen) |
| Measurement wavelength | 589nm (D-line) |
| Output | • Digital Printer DP-63 or DP-AD (sold separately), USB flash drive and PC - USB |
| Observation tube included | Observation tubes (100mm(5ml)，200mm(10ml)) |
| Power supply | AC100 to 240V, 50/60Hz |
| Dimensions and weight | 60×36.5×21cm, 20.0kg |
| Optional | • Digital Printer DP-63 : Cat.No.3118 • Digital printer DP-AD : Cat.No.3123 • Observation tube 50mm long OT-50 : RE-72072 • Observation tube 100mm long OT-100 : RE-72070 • Observation tube 200mm long OT-200 : RE-72071 • Jacketed flow tube with funnel 100mm : RE-72113 • Jacketed flow tube with funnel 200mm : RE-72114 • Unjacketed flow tube with funnel 100mm : RE-72037 • Unjacketed flow tube with funnel 200mm : RE-72038 • Unjacketed small volume observationtube 10mm long : RE-72073 • Observation tube 100mm long OT-100 (A) : RE-72001 • Observation tube 200mm long OT-200 (A) : RE-72002 • Jacketed flow tube 50mm : RE-72110 (With water jacket) • Jacketed flow tube 100mm : RE-72111 (With water jacket) • Jacketed flow tube 200mm : RE-72112 (With water jacket) • Quartz control plate 34° : RE-72045 • Quartz control plate 17° : RE-72044 • Quartz control plate 8° : RE-72043 • Quartz Control Plate -8° (-25°Z) : RE-72048 • Quartz Control Plate -17° (-50°Z) : RE-72049 • Quartz Control Plate -34° (-100°Z) : RE-72050 * Calibration Certificate : Contact an ATAGO representative for details. |
| Parts | • Printer paper (regular) for DP-63 : RE-8412 • Printer paper (long-term storage) for DP-63 : RE-8414 • Printer paper for DP-AD : RE-89403 • Ribbon cassette for DP-AD : RE-89402 |
