Seitron Americas Five Gas Industrial Combustion Emissions Analyzer - S6000-5DS
Item #:
SA-S6000-5DS
Brand:
Seitron Americas
Share this product:

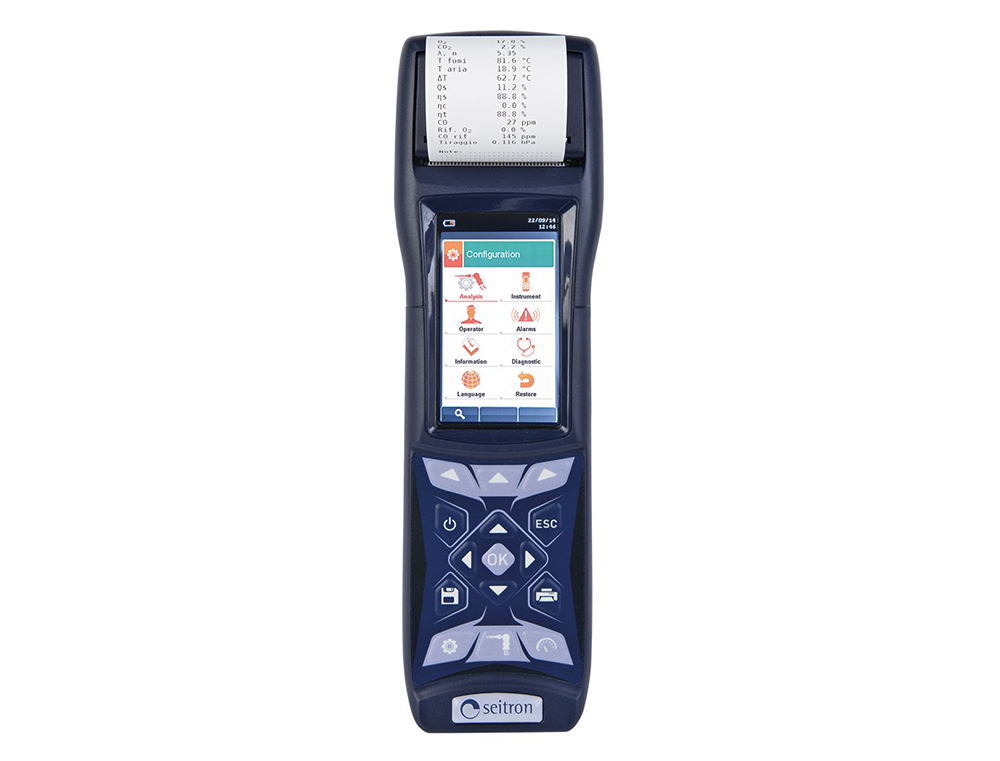

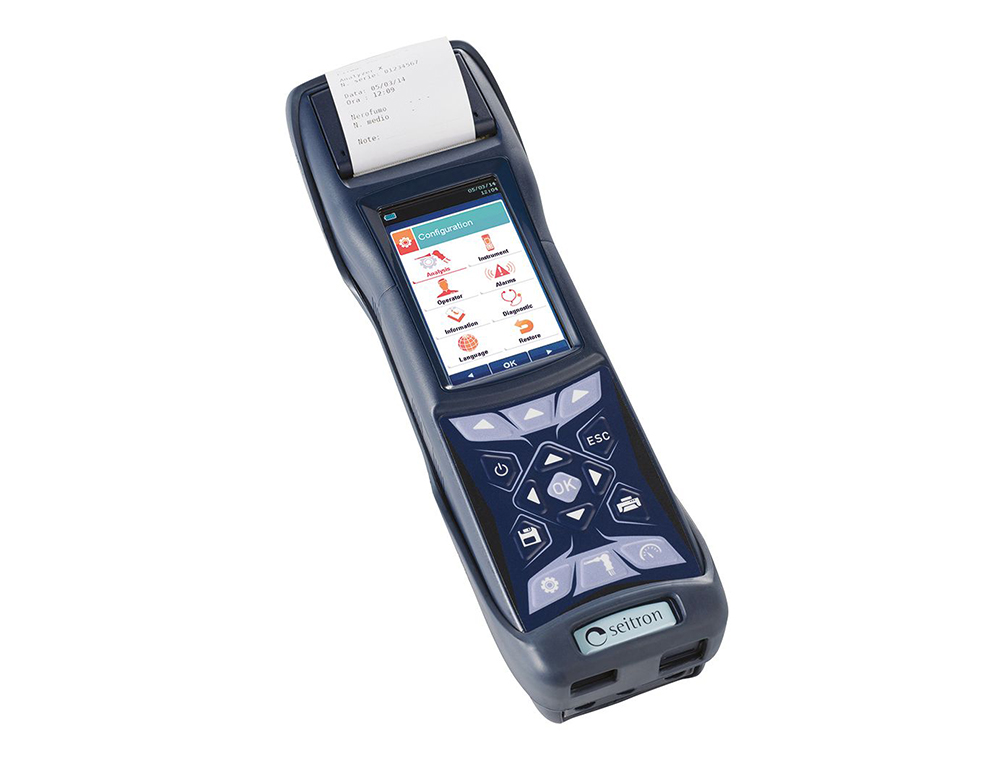

S6000-5DS Five Gas Industrial Combustion Emissions Analyzer by Seitron Americas
Fast / Easy / Robust / Accurate
- Built In Printer
- Up to 6 gas (O2, CO, NO, NH3 , NO2 , CO2, SO2, CxHy (HC), H2, H2S, CH4)
- Low NOx & Low SOx Capable
- True NOx (Low NO+NO2) Available
- Automatic data logging
- NOx & SOx in one Instrument
- Diluition pump for CO Auto range up to 100,000 ppm
- Smartphone Real Time + QRcode App (iOS, Android)
- Built in Manometer
- Draft/Pressure included
- PC Software Included
- New Ammonia Measurement
Features
- Draft & Differential Pressure
- Temperature Measurements
- Large Color Display
- 2000 Test Internal Memory
- Bluetooth Connectivity
- Long Lasting Rechargeable Battery & AC Charger

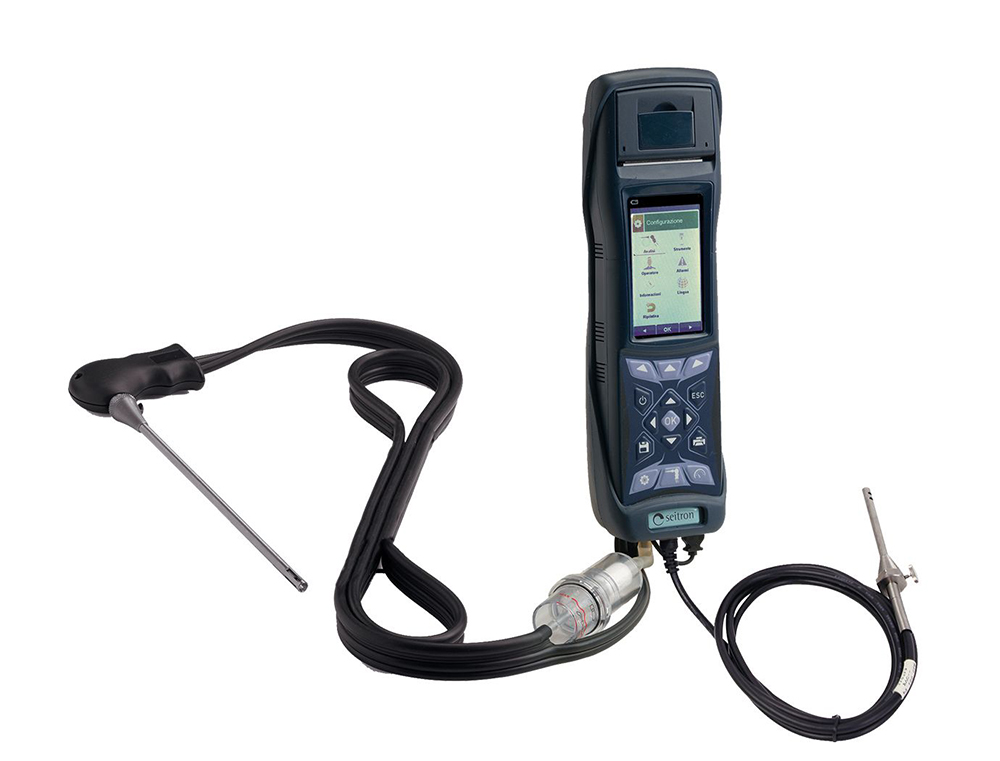

- Gas Sampling Probe & Hose
- Gas velocity w/optional Pitot tube
- Longer probes: extension hoses available
MEASUREMENT |
SENSOR |
RANGE |
RESOLUTION |
ACCURACY |
O2 Long life |
Electrochemical |
0 .. 25.0% vol |
0.1% vol |
±0.2% vol |
CO sensor w/ Over Range protection NOx filter |
Electrochemical |
0 .. 500 ppm |
0.1ppm |
±2 ppm 0 .. 40.0 ppm ±5% measured value 40.1 .. 500.0 ppm |
501 .. 8000 ppm |
1 ppm |
±5% measured value 501 .. 2000 ppm ±10% measured value 2001 .. 8000 ppm |
||
CO2 |
Calculated |
0 .. 99.9% vol |
0.1% vol |
- |
Low NO |
Electrochemical |
0 .. 500 ppm |
0.1ppm |
±2 ppm 0 .. 40.0 ppm ±5% measured value 40.1 .. 500.0 ppm |
Standard NO |
501 .. 5000 ppm |
1 ppm |
±5% measured value 501 .. 5000 ppm |
|
Low NO2 |
Electrochemical |
0 .. 500 ppm |
0.1ppm |
±2 ppm 0 .. 40.0 ppm ±5% measured value 40.1 .. 500.0 ppm |
Standard NO2 |
501 .. 1000 ppm |
1 ppm |
±5% measured value 501 .. 1000 ppm |
|
Low SO2 |
Electrochemical |
0 .. 500 ppm |
0.1ppm |
±2 ppm 0 .. 40.0 ppm ±5% measured value 40.1 .. 500.0 ppm |
Standard SO2 |
501 .. 5000 ppm |
1 ppm |
±5% measured value 501 .. 5000 ppm |
|
NOx |
Calculated |
- |
- |
- |
NH3 |
Electrochemical |
0 .. 500.0 ppm |
0.1 ppm |
±10 ppm 0 .. 100.0 ppm ±10% 100.1 .. 500.0 ppm |
CxHy (HC) |
Pellistor |
0 .. 5% |
0.01 % |
±5% full scale |
Air Temperature |
Pt100 |
- 4 to 248 °F - 20 to 120 °C |
33.8 °F 32.2°F (0.1 °C) |
33.8 °F 32.2°F (0.1 °C) |
Gas Temperature |
TcK |
- 4 to 2280 °F - 20 to 1250 °C |
33.8 °F 32.2°F (0.1 °C) |
33.8 °F 32.2°F (0.1 °C) |
Differential temperature |
Calculated |
- 4 to 2280 °F - 20 to 1250 °C |
32.2°F (0.1 °C) |
- |
Pressure/Draft |
Piezo Resistive |
-40.1 .. +80.4 inH2O |
0.004 inH2O |
±1% measured value -40.1 .. -0.81 inH2O ±0.08 inH2O -0.80 .. +0.80 inH2O ±1% measured value +0.81 .. +80.4 inH2O |
Excess air |
Calculated |
0 .. 850% |
1% |
- |
Efficiency |
Calculated |
0 .. 100% |
0.1% |
- |
Warranty |
2 years on Sensors and 2 years on Analyzer |
|||
