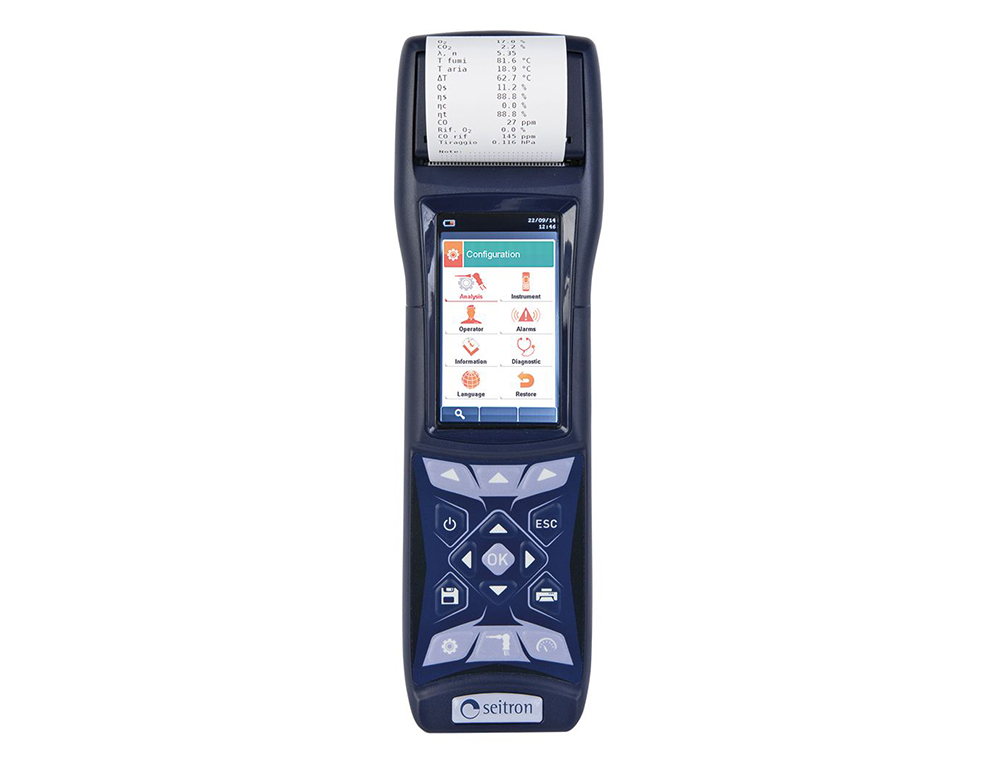

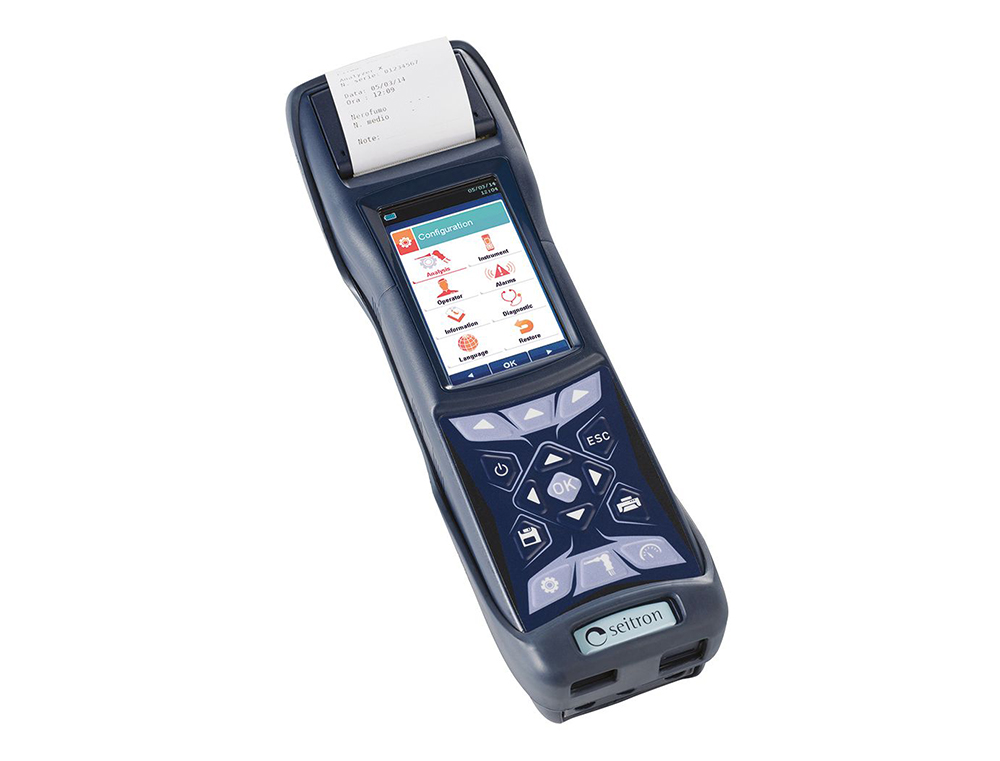

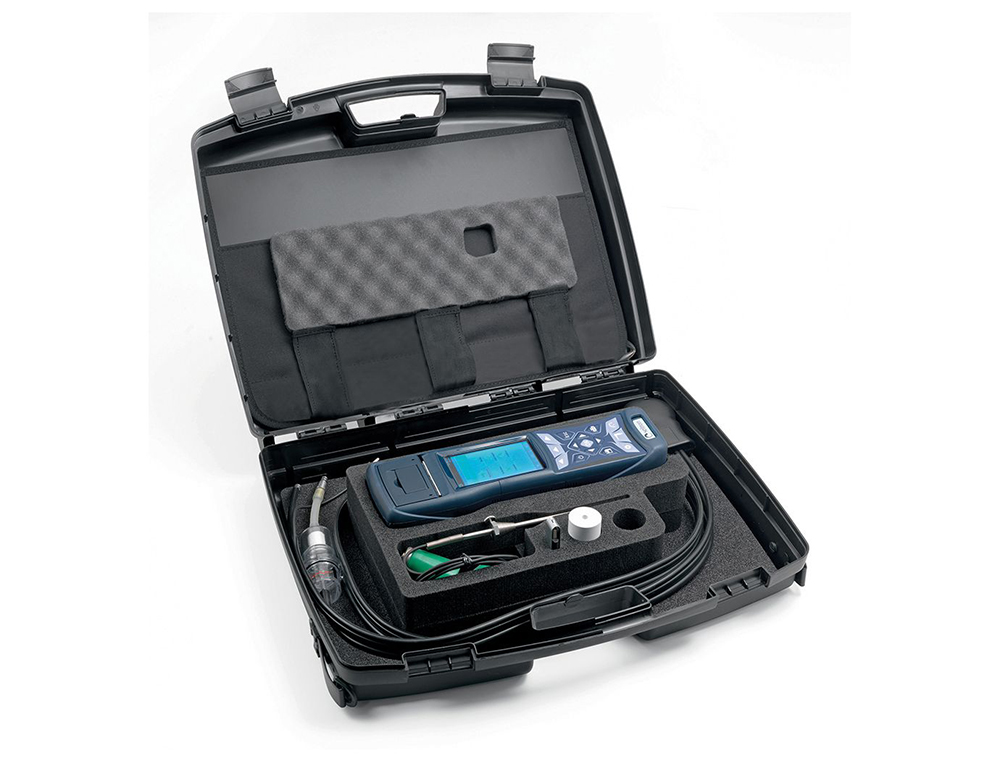

Seitron Americas S4500-N (4-Gas) Kit: O2, CO, NO, NO2, NOx Dual-Range (Low/High), CO2, Built-In Printer, CO Dilution Auto-Range up to 100,000 ppm, Combustion Efficiency, Excess Air, Draft, Differential Pressure, Temperature, Calculations for High Efficiency & Condensing Systems, 12" Probe with 10' Hose, & Hard Plastic Carrying Case. Also includes: Ambient CO Test, Real-Time Remote-Display Bluetooth® Smartphone Apps, Internal Memory, Software, Automatic Data-Logging - S4500-N

Item #:
SA-S4500-N
Brand:
Seitron Americas
$4,095.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Seitron Americas S4500-N (4-Gas) Kit: O2, CO, NO, NO2, NOx Dual-Range (Low/High), CO2, Built-In Printer, CO Dilution Auto-Range up to 100,000 ppm, Combustion Efficiency, Excess Air, Draft, Differential Pressure, Temperature, Calculations for High Efficiency & Condensing Systems, 12" Probe with 10' Hose, & Hard Plastic Carrying Case. Also includes: Ambient CO Test, Real-Time Remote-Display Bluetooth® Smartphone Apps, Internal Memory, Software, Automatic Data-Logging - S4500-N

Seitron Americas S4500-N (4-Gas) Kit: O2, CO, NO, NO2, NOx Dual-Range (Low/High), CO2, Built-In Printer, CO Dilution Auto-Range up to 100,000...

$4,095.00

S4500-N S4500-N (4-Gas) Kit: O2, CO, NO, NO2, NOx Dual-Range (Low/High), CO2, Built-In Printer, CO Dilution Auto-Range up to 100,000 ppm, Combustion Efficiency, Excess Air, Draft, Differential Pressure, Temperature, Calculations for High Efficiency & Condensing Systems, 12" Probe with 10' Hose, & Hard Plastic Carrying Case. Also includes: Ambient CO Test, Real-Time Remote-Display Bluetooth® Smartphone Apps, Internal Memory, Software, Automatic Data-Logging by Seitron Americas

Fast / Easy / Robust / Accurate

  • Built In Printer
  • up to 4 gas (O2 , CO, NO, NO2 , CO2, SO2, CxHy (HC))
  • Low NOx Available
  • Total NOx Available (NO+NO2)
  • Automatic data logging
  • Dilution pump for CO Auto range up to 100,000 ppm
  • Smartphone Real Time + QRcode App (iOS, Android)
  • Built in Pressure Manometer
  • Draft & Differential Pressure
  • PC Software Included
  • High Altitude adjustment

Features

  • Combustion Efficiency, Losses, Excess Air
  • CO sensor protection
  • Draft & Differential Pressure
  • Temperature Measurements
  • Large Color Display
  • 2000 Test Internal Memory
  • Bluetooth Connectivity
  • Long Lasting Rechargeable Battery & AC Charger
  • Gas Sampling Probe & Hose

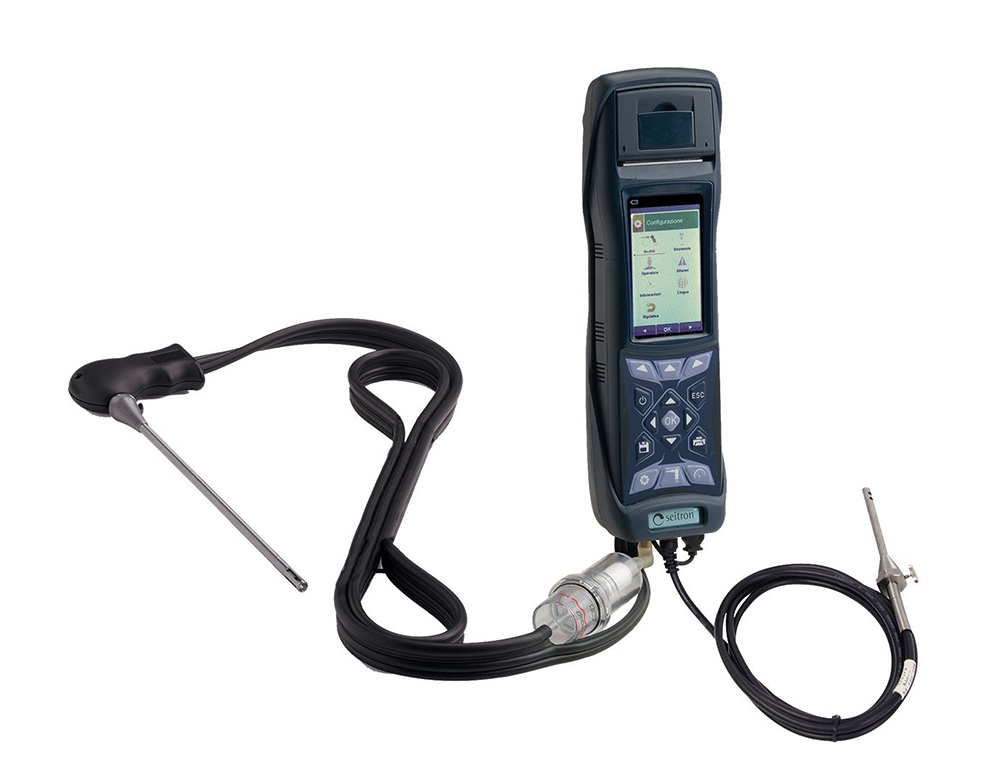

Standard Probe Detail:

  • 12" (300mm) probe
  • 1112 °F (600 °C) max
  • 10' (3m) Dual Hose

Long Probe Detail:

  • 30" (750mm) probe
  • 1472 °F (800 °C) max
  • 10' (3m) Dual Hose

Long & High Temp Probe Detail:

  • 40" (1m) Probe or 60" (1.5m) probe
  • 2192 °F (1200 °C) max
  • 10' (3m) Hose

Hose Extention:

  • 10' (3m) Length Available
O2 Long life Range: 0 .. 25.0% vol - Resolution: 0.1% vol
Low NO Range: 0 .. 500 ppm - Resolution: 0.1 ppm
Standard NO2 Range: 501 .. 1000 ppm - Resolution: 1 ppm
NOx Calculated
Gas Temperature Range: -4.0 .. 2280.0 °F - Resolution: 33.8 °F
Excess Air (Calculated) Range: 0 .. 850 % - Resolution: 1%
Weight 2.42 lbs
CO sensor with Over Range protection Range: 0 .. 500 ppm - Resolution: 0.1 ppm
Standard NO Range: 501 .. 5000 ppm - Resolution: 1 ppm
Low SO2 Range: 0 .. 500 ppm - Resolution: 0.1 ppm
CxHy (HC) Range: 0 .. 5% - Resolution: 0.01%
Pressure Range: -40.1 .. +80.4 inH2O - Resolution: 0.004 inH2O
Efficiency (Calculated) Range: 0.0 .. 100.0 % - Resolution: 0.1%
CO2 (Calculated) Range: 0 .. 99.9% vol - Resolution: 0.1% vol
Low NO2 Range: 0 .. 500 ppm - Resolution: 0.1 ppm
Standard SO2 Range: 501 .. 5000 ppm - Resolution: 1 ppm
Air Temperature Range: -4.0 .. 248.0 °F - Resolution: 33.8 °F
Differential Temperature (Calculated) Range: -4.0 .. 2280.0 °F
Dimensions 12.2''Hx3.5''Wx2.4''D
