MSA General Monitors® S5000 Gas Monitor

Item #:

S5000-2-0-0-1-01-R43-D00-0

Brand:

MSA

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

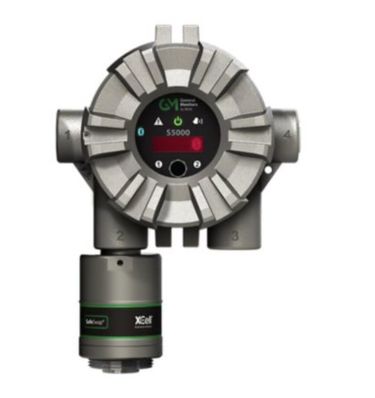

General Monitors® S5000 Gas Monitor by MSA

The General Monitors S5000 Gas Monitor is the ultimate gas detector for extreme environments needing to detect oxygen, toxic and combustible gases

It operates over a wide temperature range using a variety of gas sensing technologies. Breakthrough XCell® gas sensors with TruCal® technology extends calibration cycles up to 24 months and actively monitors sensor integrity for ultimate peace of mind.

TruCal actively monitors the sensor integrity and compensates for environmental factors that cause regular electrochemical sensors to drift. 1) Worry-free operation; automatically self-checks 4x/day, 2) Reduces downtime, 3) An industry first, Diffusion Supervision warns if sensor inlet becomes blocked and unable to detect gas
Wide operating temperature for extreme environments (-55°C to +75°C)
Bluetooth wireless technology allows mobile device to act as an HMI screen and controller. The X/S Connect App is designed with high security standards and provides real-time information to your mobile device. 1) Check status and get alerts up to 23 m (75 ft) away, 2) Reduces set up time by at least 50%
Dual sensor capability doubles the sensing power with half of the footprint of a single gas transmitter
SafeSwap enables safe and quick replacement of XCell sensors without turning off the instrument
Instrument status indicators illuminates power, fault and alarm conditions
Intuitive user experience with an industry first touch-button interface or familiar magnetic interface
Identical footprint and wiring to the S4000 series, making retrofits simple using the existing conduit and wiring
Cloud connectivity available with FieldServer ProtoAir FGFD Gateway

Applications

Compressor stations
CNG maintenance facilities
Drilling and production platforms
Fuel loading facilities
LNG/LPG processing and storage
Oil well logging
Petrochemical
Refineries

Specifications

Product Specifications
COMBUSTIBLE GAS SENSOR TYPE	Catalytic bead (Passive comb., XCell comb.) Infrared (IR400)
TOXIC GAS & OXYGEN SENSOR TYPE	XCell Toxic Ammonia (NH3), Carbon Monoxide (CO), Carbon Monoxide (CO) H2-resistant, Chlorine (Cl2), Sulfur Dioxide (SO2) Chlorine Dioxide (ClO2) Passive MOS, Echem, XCell Toxic Hydrogen Sulfide (H2S) XCell O2 Oxygen (O2) Electrochem Ammonia (NH3), Ethylene Oxide (ETO), Hydrogen (H2), Hydrogen Chloride (HCl), Hydrogen Cyanide (HCN), Hydrogen Fluoride (HF), Nitric Oxide (NO), Nitrogen Dioxide (NO2)
SENSOR MEASURING RANGES	Combustible 0-100% LEL (CB, IR) Cl2 0-5, 0-10, 0-20 ppm ClO2 0-3 ppm CO 0-100, 0-500, 0-1000 ppm CO, H2-resistant 0-100 ppm ETO 0-10 ppm H2 0-1000 ppm HCl 0-50 ppm HCN 0-50 ppm HF 0-10 ppm H2S 0-10, 0-20, 0-50, 0-100, 0-500 ppm NH3 0-100 ppm, 0-1000 ppm NO 0-100 ppm NO2 0-10 ppm O2 0-25% SO2 0-25, 0–100 ppm
CLASSIFICATIONS	DIVISIONS (US/CAN) Class I, Div/Zone 1&2, Groups A, B, C & D T5/T4; Class II, Div/Zone 1&2, Groups E, F & G, T6; Class III Type 4X, IP66 US ZONES Class I, Zone 1 AEx db IIC T5 Gb Class I, Zone 2 AEx nA nC IIC T4 Gc Zone 21 AEx tb IIIC T85°C Db CANADIAN ZONES/ ATEX/IECEx Ex db IIC T5 Gb Ex nA nC IIC T4 Gc Ex tb IIIC T85°C Db
WARRANTY	S5000 transmitter 2 years XCell Sensors 3 years Passive comb., MOS, IR400 2 years Echem Sensors Varies by gas
APPROVALS	CSA, FM**, ATEX, IECEx,INMETRO, ABS, DNV-GL Marine, CE Marking. Complies with C22.2 No. 152, FM 6320, ANSI/ISA/CSA/IEC/EN 60079-29-1, ANSI/ISA 12.13.01. Suitable for SIL 2.
Dimensions
HOUSING (W x H x D)	6.37" x 5.38" x 4.25" (162 x 137 x 108 mm)
W/PASSIVE SENSOR	6.37" x 7.62"x 4.25" (162 x 193 x 108 mm)
W/DIGITAL SENSOR	6.37" x 10.4" x 4.25"(162 x 265 x 108 mm)
W/IR400 IR SENSOR	14.8" x 6.0" x 4.25" (375 x 152 x 108 mm)
WEIGHT	8 lb. (3.6 kg), 316 SS
Environmental Specifications
OPERATING TEMPERATURE RANGE	Transmitter -55°C to +75°C CB (sintered, Zones) -40°C to +70°C CB (screened, Div) -40°C to +75°C MOS (sintered, Zones) -40°C to +70°C MOS (screened, Div) -40°C to +75°C IR (CSA) -40°C to +75°C IR (ATEX/IECEx) -60°C to +75°C XCell (Comb) -55°C to +60°C XCell (Toxic/O2) -40°C to +60°C
STORAGE TEMPERATURE RANGE	Housing, IR400,passive sensors -50°C to +85°C XCell sensors -40°C to +60°C
RELATIVE HUMIDITY (NON-CONDENSING)	XCell sensors, IR400, 10-95% Passive combustible 0-95% Passive H2S 15-95%
Mechanical Specifications
INPUT POWER	24 VDC nominal, 12 to 30 VDC
SIGNAL OUTPUT	Dual 4-20 mA current source or sink, HART, Modbus, Bluetooth. Optional: w/o Bluetooth
RELAY RATINGS	5A @ 30VDC; 5A @220 VAC (3X) SPDT – fault, warn, alarm
RELAY MODES	Common, discrete, horn
NORMAL MAX POWER	Without Relays Passive comb: 5.0 W Passive MOS: 9.8 W IR400: 7.9 W XCell comb: 5.0 W XCell toxic & O2: 2.6 W IR400 + XCell comb: 10.8 W IR400 + XCell toxic or O2: 8.6 W Dual XCell toxic or O2: 3.3 W Dual XCell comb: 7.4 W XCell comb. + XCell toxic or O2: 5.7 W With Relays Passive comb: 6.0 W Passive MOS: 10.8 W IR400: 8.9 W XCell comb: 6.0 W XCell toxic & O2: 3.6 W IR400 + XCell comb: 11.8 W IR400 + XCell toxic or O2: 9.6 W Dual XCell toxic or O2: 4.3 W Dual XCell comb: 8.4 W XCell comb. + XCell toxic or O2: 6.7 W
STATUS INDICATORS	4-digit scrolling LED, icons depicting fault, warn, alarm, Bluetooth, 1 and 2 to indicate sensor reading displayed
RS-485 OUTPUT	Modbus RTU, suitable for linking up to 128 units or up to 247 units with repeaters
BAUD RATE	2400, 4800, 9600, 19200, 38400, 115200
HART	HART 7, Device Description (DD) and Device Type Manager (DTM) available
FAULTS MONITORED	Low supply voltage, RAM checksum error, flash checksum error, EEPROM error, internal circuit error, relay, invalid sensor configuration, sensor faults, calibration faults, analog output mismatch fault
CABLE REQUIREMENTS	3-wire shielded cable for single sensor and 4-wire shielded cable for dual sensor configurations. Accommodates up to 12 AWG or 4 mm2

Datasheets & User Manuals

$6,623.00
