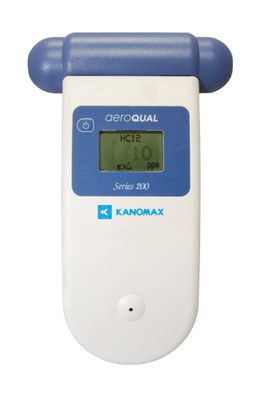

Kanomax S200 Monitor with NiMH Battery (Sensor is not included)
Item #:
S200
Brand:
Kanomax
Share this product:
S200 Monitor with NiMH Battery (Sensor is not included) by Kanomax
Providing high level of functionality and monitoring capability, the Gas Monitor S200 can be used portably or fixed in position. The monitor is compatible with the wide range of toxic gas sensors. The remote sensor head adaptor kit is designed to allow the sensor head to be located up to 46 ft away from the main unit.
Applications :
- IAQ Investigation
- Industrial Hygiene Quality Control
- Occupational Safety and Health Testing
- US GBC LEED certification
Gas Sensor Option :
- Ammonia, Carbon monoxide, Carbon dioxide, Hydrogen, Hydrogen sulphide, Methane, Ozone, Nitrogen dioxide, Sulphur dioxide, VOC
Features :
- Interchangeable sensor heads capable of measuring more than 20 types of toxic gases
- High accuracy measurement
- Portable battery operation
- Remote sensor capability
| Measurement units | ppm or mg/m3 |
| Sensor Head | Removable and Replaceable |
| Functions | Low battery indication, Sensor condition status, Stand-by mode, Remote sensor capability |
| Power Supply | Battery or 12VDC, 800mA |
| Battery Type | Rechargeable battery pack, Ni-Cd: 9.6V, 940mA/hr, Ni-MH: 9.6V, 2100mA/hr |
| Enclosure Rating | IP20 & NEMA 1 equivalent |
| Dimensions (with sensor head) | 7.0 x 4.75 x 2.0 inches (195 x 122 x 54 mm) |
| Weight (with sensor & battery) | < 16 oz (460 g) |
| Approvals | Part 15 of FCC Rules, EN 50082-1: 1997, EN 50081-1: 1992 |
Gas Sensor Heads |
Range (ppm) |
Accuracy |
Resolution |
| Ammonia | 0 - 100 |
± 5 ppm |
0.1 ppm |
| Ammonia (leak) | 0 - 1000 |
± 15% |
1 ppm |
| Carbon monoxide | 0 - 100 |
±5 ppm |
0.1 ppm |
| Carbon monoxide | 0 - 1000 |
±10% |
1 ppm |
| Carbon dioxide | 0 - 2000 |
±40 ppm + 3% |
10 ppm |
| Carbon dioxide | 0 - 5000 |
±150 ppm + 5% |
10 ppm |
| Formaldehyde | 0 - 10 |
±10% |
0.01 ppm |
| Hydrogen | 0 - 5000 |
±10 % |
1 ppm |
| Hydrogen sulphide | 0 - 10 |
±0.5 ppm |
0.01 ppm |
| Methane | 0 - 9999 |
±15 % |
1 ppm |
| Ozone | 0 - 0.150 |
±0.005 ppm |
0.001 ppm |
| Ozone | 0 - 0.500 |
±0.008 ppm |
0.001 ppm |
| Nitrogen dioxide | 0 - 1 |
±0.001 ppm |
0.001 ppm |
| NMHC 3,4 | 0 - 25 |
±10 % |
0.1 ppm |
| Perchloroethylene | 0 - 200 |
±5 ppm |
1 ppm |
| Sulphur dioxide | 0 - 10 |
±0.5 ppm |
0.01 ppm |
| VOC | 0 - 25 |
±10 % |
0.1 ppm |
| VOC | 0 - 500 |
±10 % |
1 ppm |
| Temperature | -40 - 124°C |
- |
- |
| Relative Humidity | 0 - 100%RH |
- |
- |
Multi-Gas Sensor Heads |
Sensor |
Range (ppm) |
Accuracy |
Resolution |
MS1 |
CO2 CO |
0-2000 0-100 |
± 40 ppm + 3% ± 10% |
1 ppm 0.1 ppm |
MS2 |
CO2 CO VOC (PID) |
0-2000 0-100 0-25 |
± 40 ppm + 3% ±10% ± 10% |
1 ppm 0.1 ppm 0.01 ppm |
