BW Technologies RRJ Series O2 (0-25%), 4-20mA Sensor/Transmitter
Item #:
RRJ-RX04
Brand:
BW Technologies
Share this product:

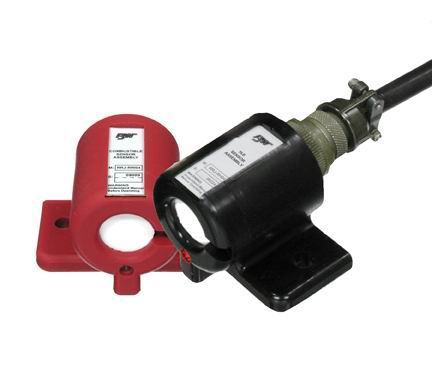

RRJ-RX04 RRJ Series O2 (0-25%), 4-20mA Sensor/Transmitter by BW Technologies
The rugged, zero-maintenance RRJ Series Transmitters for H2S, CO, O2, SO2, NH3 or combustible gases (LEL) come complete with sensor and provide a 4-20m A signal that is compatible with any 4-20 mA control system (DCS, PLC, and CR-4000 controllers, etc.).
- Eliminate maintenance, no calibration required, no sensor replacement required, no downtime
- Rugged, durable, polyurethane encapsulated transmitter with sensor
- Quick disconnect with military-style plug-in wiring connector during installation and decommissioning
- 2 year operational life
- Daily, automatic, full-function self-test of sensor and circuitry integrity
- LED red visual alarm
- Electrochemical sensor for H2S and catalytic bead sensor (combustible gases)
- Wide supply voltage range,10 to 28 VDC for industry standard compatibility
- Low initial cost, competitively priced
RRJ Transmitters with Sensor
BW Technologies introduces the first zero-maintenance, 4-20 mA transmitters on the market. BW Technologies has applied cuttingedge science developed for the world's most advanced disposable gas detector, the GasAlertClip to the RRJ Series of transmitters.
Daily Automatic Self-Test
Daily Automatic Self-Test The full function self-test is a unique safety advantage. The sensor integrity is tested as well as the circuitry integrity. The full function sensor integrity test not only advises if the sensor is present, but additionally tests the sensor's response and advises if the sensor is defective.
Operational Life
The operational life is two years in normal use. The life counter is activated when power is applied and runs continuously while the transmitter is operating. If power is interrupted, the counter stops and will resume counting when power is restored.
Life-Ended Warning and Alarm
One month prior to the end of the transmitter's operational life, the LED will begin a slow fl ash warning. When the 2 year operational life is over, the monitor will send a 2 mA signal to the controller advising that the monitor is now disabled and requires replacement.Part Number: RRJRX04
Transmitter with Sensor: | 4-20 mA gas transmitter with advanced microprocessor-based circuitry |
Supply Voltage: | 10 VDC (min.) to 28 VDC (max.) |
Power Suppy: | H2S: 50 mA; Combustibles: 100 mA; |
Power Consumption: | H2S version: 4mA @ 12 VDC; 35mA @ 24 VDC nominal |
(Normal Operation) | Combustible version: 50mA @ 12 VDC; 35mA @ 24 VDC nominal |
EMI/RFI: | Complies with EMC Directive 89/336/EEC |
TRANSMISSION RANGE: | 1,000 feet / 305 m with 22 AWG / 0.64 mm cable |
SENSORS: | |
Humidity: | 5 to 90% non-condensing |
Calibration: | Factory calibrated. Not required for operational life |
Enclosure: | IP 65 |
FULL FUNCTION SELF-TEST: | Daily (auto) and each time power is applied (auto) |
PHYSICAL: | Rugged polyurethane encapsulated enclosure Size: 2.65 x 2.3 x 3.25 in. / 6.73 x 5.84 x 8.25 cm Weight: approx. 6.2 oz. / 175 g |
Connector: | Plug-in, military-style, 6-pin connector Accepts fi eld wiring kit, pigtail assembly or optional BW plug-in remote RRJ sensor cables |
OPERATING LIFE: | 2 years |
Warranty: | 2 years including sensors |
