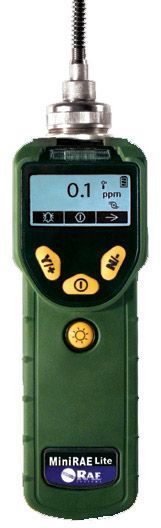

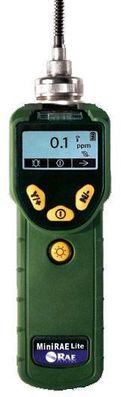

RAE Systems MiniRAE Lite Portable Handheld VOC Monitor - 10.6 eV Lamp, Li-Ion / Universal Charger, Accessories Kit, Calibration Kit - 059-A110-100
Item #:
RAE-059-A110-100
Brand:
RAE Systems
Share this product:
059-A110-100 MiniRAE Lite Portable Handheld VOC Monitor - 10.6 eV Lamp, Li-Ion / Universal Charger, Accessories Kit, Calibration Kit by RAE Systems
The MiniRAE Lite is the most reliable handheld volatile organic compound (VOC) monitor on the market. Its photoionization detector's (PID) range of 0 to 5,000 ppm makes it an ideal instrument for applications ranging from environmental to construction.
Monitor only includes
- MiniRAE Lite Monitor, Model PGM-7300
- RAE Systems 10.6 eV UV lamp
- Flex-I-Probe
- External filter
- Green rubber boot
- Alkaline battery adapter
- Lamp cleaning kit
- Tool kit
- Lithium-ion (Li-ion) battery, if specified with universal AC/DC charger and international plug kit
- Travel charger, if specified
- Universal wall adapter, if specified
- Operation & Maintenance manual
- Soft leather carrying case
Monitor with accessories kit adds
- Hard transport case with pre-cut foam padding
- 5 Porous metal filters and O-rings
- Organic vapor zeroing kit
- Gas outlet port adapter and tubing
Optional calibration kit adds
- 100 ppm isobutylene calibration gas, 34L
- Calibration regulator and flow controller
Key Features
- Proven PID technology-The patented sensor provides the following unique features: 3-second response time, Range up to 5,000 ppm, Humidity compensation
- Designed for service-Easy access to lamp and sensor in seconds without tools
- Big graphic display for easy overview of concentration
- Field-interchangeable battery pack, replaceable in seconds without tools
- Integrated flashlight for better visibility in low light
- Multi-language support with 12 languages encoded
- Rugged housing withstands use in harsh environments: IP-65 design and Strong, protective removable rubber boot
Additional Advantages
- Duty-cycling™ lamp and sensor auto-cleaning technology
- Tough, flexible inlet Flexi-Probe™
- Large keys are operable with 3 layers of gloves
- Strong, built-in sample pump draws up to 100' (30m) horizontally or vertically
- Loud, 95 dB audible alarm
- Bright red flashing visible alarm
- Interchangeable drop-in Lithium-ion and alkaline battery packs
- 3-year 10.6 eV lamp warranty
| Size | 10" L x 3.0" W x 2.5" H (25.5 x 7.6 x 6.4 cm) |
| Weight | 26 oz (738 g) |
| Sensors | Photoionization sensor with standard 10.6eV lamp |
| Battery | - Alkaline battery adapter - External field-replaceable lithium-ion battery pack, if specified |
| Operating Hours | 12 hours of operation on alkaline battery adapter (12 hours with lithium-ion battery pack) |
| Display Graphic | 4 lines, 28 x 43 mm, with LED back light |
| Keypad | 1 operation and 2 programming keys, 1 flashlight on/off |
| Direct Readout | Instantaneous reading of: - VOCs as ppm by volume - High and low values - Date and time |
| Alarms | 95 dB buzzer (at 30 cm) and flashing red LED to indicate exceeded preset limits - High: 3 beeps and flashes per second - Low: 2 beeps and flashes per second - Alarm latching with manual override or automatic reset - Additional diagnostic alarm and display message for low battery and pump stall |
| EMI/RFI | - Highly resistant to EMI/RFI. - Compliant with EMC directive 89/336/EEC |
| IP Rating | IP-65 |
| Calibration | Two-point calibration for zero and span |
| Sampling Pump | - Internal, integrated flow rate at 400 cc/min - Sample from 100' (30m) horizontally and vertically |
| Low Flow Alarm | Auto shut-off pump at low-flow condition |
| Hazard Area Approval | None |
| Operating Temperature | -4° to 113° F (-20° to 50° C) |
| Humidity | 0 to 95% relative humidity (non-condensing) |
| Attachments | Durable green rubber boot |
| Warranty | 3 years for 10.6 eV lamp, 1 year for pump, battery and instrument |
| Gas Monitor | Range (ppm) | Resolution (ppm) | Response Time (T90) |
| VOCs | 0 to 999.9 | 0.1 | < 3 sec |
| VOCs | 1000 to 5,000 | 1 | < 3 sec |
