Oasis Scientific ViTiny Pro10 Plus Portable Digital Microscope

ViTiny Pro10 Plus Portable Digital Microscope by Oasis Scientific

Discover the Micro world with this newest innovation from ViTiny! PRO10 Plus is one of the lightest, most powerful and compact mobile microscopes in the world today. This palm-size microscope does not require any additional monitors to view subjects, giving the freedom to take it anywhere you need magnification. The unique PRO10 Plus with its full color display allows you to view images in high magnification, take standard photos, record videos, and output on a PC or TV. It can also be used as a web camera. With 10x magnification, the view range is 6mm x 4mm on 2.8" LCD screen. Pro10 Plus includes a set of 5 support accessories to help examine soft materials, fragile items, larger or smaller objects. Eight bright built-in LEDs have multi-lighting functions, allowing you to choose different direction illumination to observe the different surface texture with the optimum illumination. The included software has powerful measurement function to measure length, perimeter, angle, and area of objects.

• Educational Research: biological sample, living creature, reading
• Quality Checking: material (textile inspection), detailed repair, metal surface (soldering check), jewelry, printing
• Electronic Checking: PC board inspection, SMT pattern
• Medical Observation: bone tissue examination
• Health Care: skin & hair observation
• Anti-counterfeit Operations: false label, forged money

Product Details:

• Dimension (microscope): 129 (L) x 67 (W) x 28 (H) mm (5.1 x 2.6 x 1.1”)
• Weight: 180g (6.1 oz) including battery and set of 5 support accessories
• Software Compatibility: Windows 7/Vista/XP

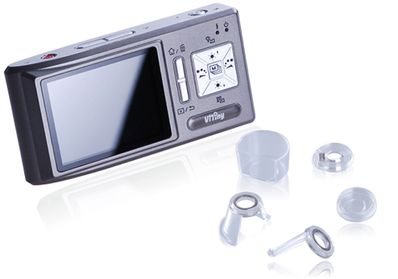

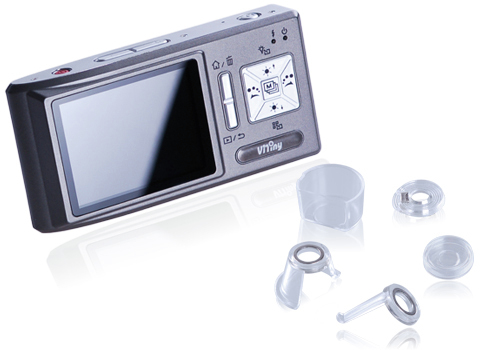

• Accessories Included: Set of 5 Support Accessories (shallow contact cap, deep contact cap, non-contact supporter, deep tank, shallow tank), USB 1.1 Transmission Line, USB Power Supply Device, AV Terminal Transmission Line, 2GB Micro SD Card, Rechargeable Lithium Battery, Instruction Manual, Installation CD, Protection Bag, Cleaning Cloth, Wrist Strap
• Manufacturer’s Warranty: 1 year

Technical Details:

• Magnification: 10x to 200x
• Optical zoom: 10x to 40x
• Digital zoom: 5x
• Built in 2.8" full color TFT LCD screen: 320 x 240 pixels for preview
• Digital Camera: 2M pixels
• Photo Resolution: 1600 x 1200 pixels, JPG file
• Video Resolution: 640 x 480 pixels, AVI file; 320 x 240 pixels, MP4 file
• TV Image Output: MP4 file
• Web CAM Function
• USB Cable: 1.1 speed for transferring images to a PC
• AC Adapter: 100-240 Volt, 50/60 Hz for world-wide power requirement
• Multi-LED Lighting Function: adjustment of light source from different direction
• Special Effects: Grey Scale, Inverse, and Embossed
• Measurement Function: measurement of length, perimeter, area, angle, etc.
• 32MB internal Flash memory for saving images
• Micro SD Card Slot: optional cards used up to 2GB
• Shallow Contact Cap (1): to examine soft materials such as cloth, paper, hair, skin, etc.
• Deep Contact Cap (2): to observe coins, screws, SMT Components, etc.
• Non-Contact Supporter (3 ): to examine fragile items such as Printed Circuit Boards, flowers, wounds, insects, etc.
• Deep Tank (4): to observe larger objects such as flies, rocks, etc.
• Shallow Tank (5): to study smaller objects such as fish eggs, spores, sand, droplets, diamonds, etc.
