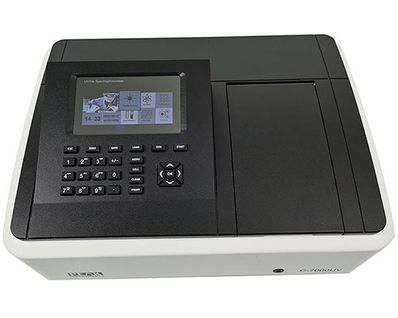

Peak Instruments C-7000UV UV-Vis Spectrophotometer

Item #:

PI-C-7000UV

Brand:

Peak Instruments

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

C-7000UV UV-Vis Spectrophotometer by Peak Instruments

Steady, modern and elegant appearance design. Adopt the newest microcomputer technology and electronic control system. Optimized optical system and structure can both extend new functions and ensure the accuracy, stability and durability.

Main Features

7 inch color LCD screen and long life, more comfortable and sensitive silicone buttons.
Support USB storage and different data formats such as Excel, txt and image (via PC software). Users can export test data to flash memory, open and edit them on computers directly without any auxiliary software.
Standard USB(A), USB(B) and RS232 port.
High-efficiency holographic grating of 1200 lines/mm and low stray light.
The equipment has long life socket type tungsten-halogen and deuterium lamps, can switch the lamps according to test needs and record its working time automatically. Socket type lamps make the replacement much easier.
Excellent silicon photodiode can guarantee the equipment is highly sensitive and stable.
Huge sample chamber and various accessories can meet all kinds of needs.
Can be connected to printer directly and output test charts and data.
Powerful PC software can realize full wavelength scanning function.

Specifications

Model	C-7000UV
Display	7-inch color LCD screen
Wavelength Range	190 - 1100nm
Slit Width	2nm
Wavelength Accuracy	±0.3nm
Wavelength Repeatability	≤0.2nm
Photometric Accuracy	0.3%T (0-100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)
Photometric Accuracy	≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)
Stray Light	≤0.05%T@220nm,360nm
Stability	±0.002A/h@500nm
Baseline Flatness	±0.002A
Noise	±0.0005A
Working Mode	T, A, C, E
Wavelength Setting	Automatic
Photometric Range	0-200%T, -0.3 - 3A, 0-9999C(9999F)
Detector	Solid Silicon Photodiode
Software	Optional with scanning function
Printer	Optional
Keypad	Silicone buttons
Data Port	USB
Light Source	Tungsten Halogen Lamp/Deuterium Lamp
Power requirements	AC110-220V 50-60Hz
Humidity Range	Less than 85%
Shipping Dimensions& Weight	730610390mm, 22kg
