Atago Hand-held "Pocket" Refractometer for Cutting Oil - PAL-102S
Item #:
PAL-102S
Brand:
Atago U.S.A.
Share this product:

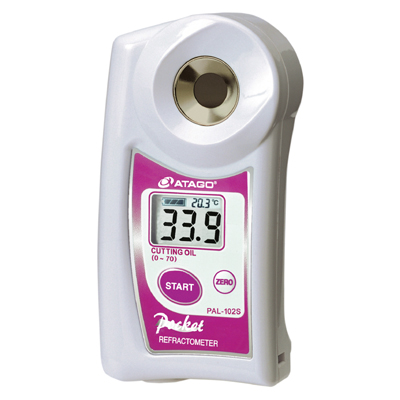

PAL-102S Pocket Refractometer for Cutting Oil by Atago U.S.A.
Digital Hand-held "Pocket" Cutting Oil Meter PAL-102S is designed for controlling the concentration of cutting oils. This is most suitable for the measurement of the percent dilution and controlling the percent concentration of hydraulic oil and cleaning liquid. Cutting oil, molding lubricant and rust resistance liquid are also well within the measurement range of the PAL-102S. With a water resistant design, the PAL-102S can also float in water which will help to prevent unforeseen accidents. Quick and easy measurements can be taken with the PAL-102S anywhere on your factory floor.
Feature
- Calibration with water only
- Extremely water resistant (IP 65)
- Light & Compact, 100g
- Revolutionary new feature E.L.I.
- Automatic Temperature Compensation (ATC)
- Measurement in 3 seconds
- Ergonomically designed for one-handed operation
- Convenient storage case
- Battery power indicator
- Designed with a strap holder option
Applications
- Metalworking fluid (water based solution) (Cutting Oil, Grinding Oil, Quenching Oil, Rolling Solution, Wire Stretching Oil etc.)
- Metalworking fluid
- Lubricant oil
- Moisture of hydraulic oil
- Washing solutions
| Measurement Range | Cutting Oil 0.0 to 70.0 Temperature 9.0 to 99.9°C |
| Resolution | Cutting Oil 0.1 Temperature 0.1°C |
| Measurement Accuracy | Cutting Oil ±0.2 Temperature ±1°C |
| Ambient Temperature | 10 to 40°C |
| Measurement Temperature | 10 to 75°C (Automatic Temperature Compensation) |
| Sample Volume | 0.3 ml |
| Measurement Time | 3 seconds |
| Power supply | 2 × AAA Batteries |
| Optional | • MAGIC™ : RE-39411 • PAL-CASE : RE-39409 * Calibration Certificate : Contact an ATAGO representative for details. |
| International Protection class | IP65 Dust-tight and Protected against water jets. |
| Dimensions & weight | 55(W) ×31(D)×109(H)mm, 100g (Main Unit only) |
