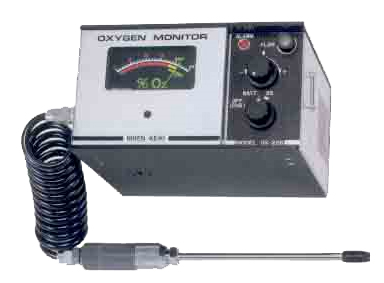

RKI Instruments OX-226 Auto Sample Draw Oxygen Monitor with Alarm, Ni-Cads & Charger (115 VAC) - OX-226

Item #:
OX-226
Brand:
RKI Instruments
RKI Instruments OX-226 Auto Sample Draw Oxygen Monitor with Alarm, Ni-Cads & Charger (115 VAC) - OX-226
$1,569.75
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
RKI Instruments OX-226 Auto Sample Draw Oxygen Monitor with Alarm, Ni-Cads & Charger (115 VAC) - OX-226

RKI Instruments OX-226 Auto Sample Draw Oxygen Monitor with Alarm, Ni-Cads & Charger (115 VAC) - OX-226

$1,569.75

Discontinued


OX-226 Auto Sample Draw Oxygen Monitor with Alarm, Ni-Cads & Charger (115 VAC) by RKI Instruments

Intrinsically safe Models OX-226 and OX-227 are the same application as that of Model OX-1. The sample gas drawn into the analyzer by built-in diaphragm pump.

The OX-226 provides audible and visual alarm whenever oxygen level falls below a preset alarm level.

An alarm for low battery condition warns the user when power is low.

Features

  • Intrinsically safe, 3aG4 in Japan.
  • Low battery alarm (OX-226).
  • Audible and visual alarm (OX-226).
  • Built-in diaphragm pump.
  • Plug-in sensor.
  • Light weight, compact design.
  • Dual range (OX-227).
  • Approved by NK for ship use.

*Please note we can only ship RKI products to customers within the United States

Principle Electrochemical cell
Sampling method Sample drawing by internal diaphragm pump
Range Built-in sensor type
0 ~ 25%
Accuracy Batter than ±0.7% by volume of indication value at constant temp.
(complies with JIS T-8201)
Alarm Intermittent audible tone & flashing red LED light, activated when oxygen content falls below preset alarm level (18%)
Continuous audible tone & continuation of red LED light, activated when battery voltage falls below certain level.
Operating temp. -10°C ~ +40°C
Power source Dry cells (3 pcs). or optional Ni-Cd rechargeable battery
Battery life Above 6 hrs continuous operation with dry cell or 7 hrs continuous operation between charges
(15 hrs recharging)
Dimensions 150(W) x 140(H) x 85(D)mm
Weight 2.1 kgs. (overall)
Explosion proof Intrinsically safe, 3aG4 in Japan (except C and D type on OX-227)
Life expectancy of the sensor Above 24 months
Warranty 1 year material & workmanship
