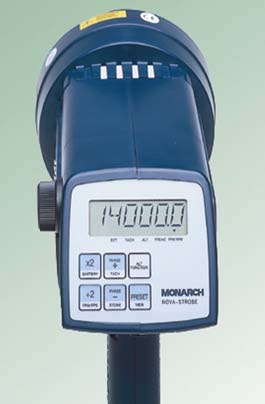

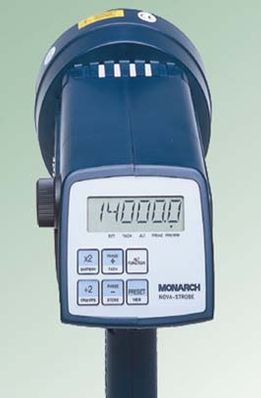

Kanomax (Digital) Nova-Strobe Stroboscopes and (R-115) 115 VAC Recharger - NOVA-DBPLUS-115
Item #:
NOVA-DBPLUS-115
Brand:
Kanomax
Share this product:
NOVA-DBPLUS-115 (Digital) Nova-Strobe Stroboscopes and (R-115) 115 VAC Recharger by Kanomax
Features DA,DB Plus:
- 6 User Programmable Memory Locations
- Easy To Read Backlit Digital Display
- TTL Compatible Input/Output Jacks
- N.I.S.T. Calibration Certificate Included
- Tachometer Mode With Sensor
- Battery Charge Indicator
- Choose Internal Rechargeable Batteries or Mains Powered Models
Model | BA (AC ) | BB | DA (AC) | DB |
Range (fpm) | 100 to 8,000 | 100 to 8,000 | 30 to 14,000 | 30 to 14,000 |
Display | 4 Digit LCD | 4 Digit LCD | 6 Digit LCD | 6 Digit LCD |
Accuracy/Resolution | ±1 FPM/ 1 FPM | ±1 FPM/ 1 FPM | ±0.01 % of reading/0.1 fpm | ±0.01 % of reading/0.1 fpm |
Avg. Power-Watts | 8W | 8W | 15W | 10W |
Flash Energy/Duration | 140 mJoule (25-50 usec) | 140 mJoule (25-50 usec) | 180m Joule (20 to 50 u sec) | 220m Joule (20 to 50 u sec) |
External Trigger (1/8” Phone Jack) |
NA | NA | TTL (24 VDC Max) Provides 5 VDC out |
TTL (24 VDC Max) Provides 5 VDC out |
Power | 115 VAC, 50-400 Hz | Internal rechargeable-Battery ( 60 minutes) | 115 VAC, at 50/60 Hz | Internal rechargeable Battery ( 60 minutes) |
Tachometer Mode | NA | NA | 5 to 200,000 RPM | 5 to 200,000 RPM |
Programmable Memory | NA | NA | Yes | Yes |
Internal Phase Shift | NA | NA | Yes | Yes |
Weight | 1.5 LBS | 2.5 LBS | 1.5 LBS | 2.5 LBS |
Dimensions | Body: 3.66” wide x 3.56” x 9” high Reflector Housing: 4 to 8” diameter, Handle: 4.25” long |
