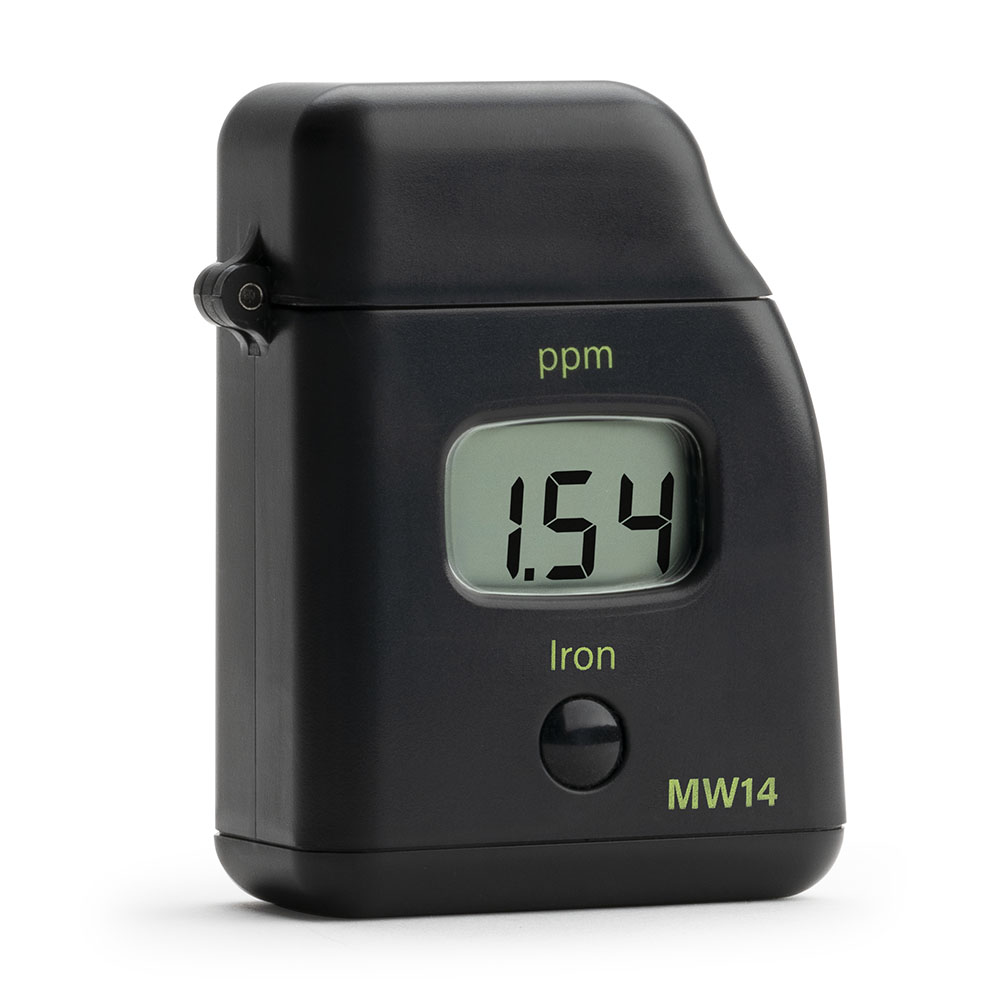

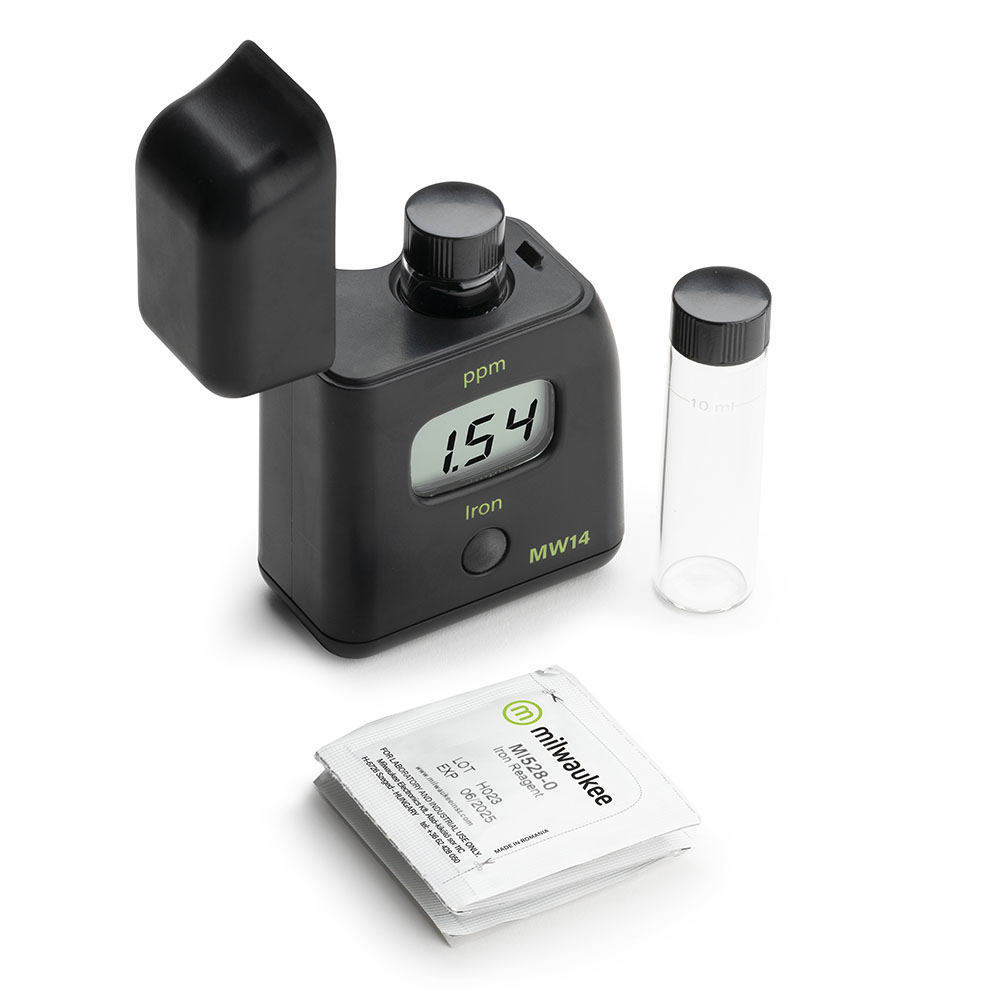

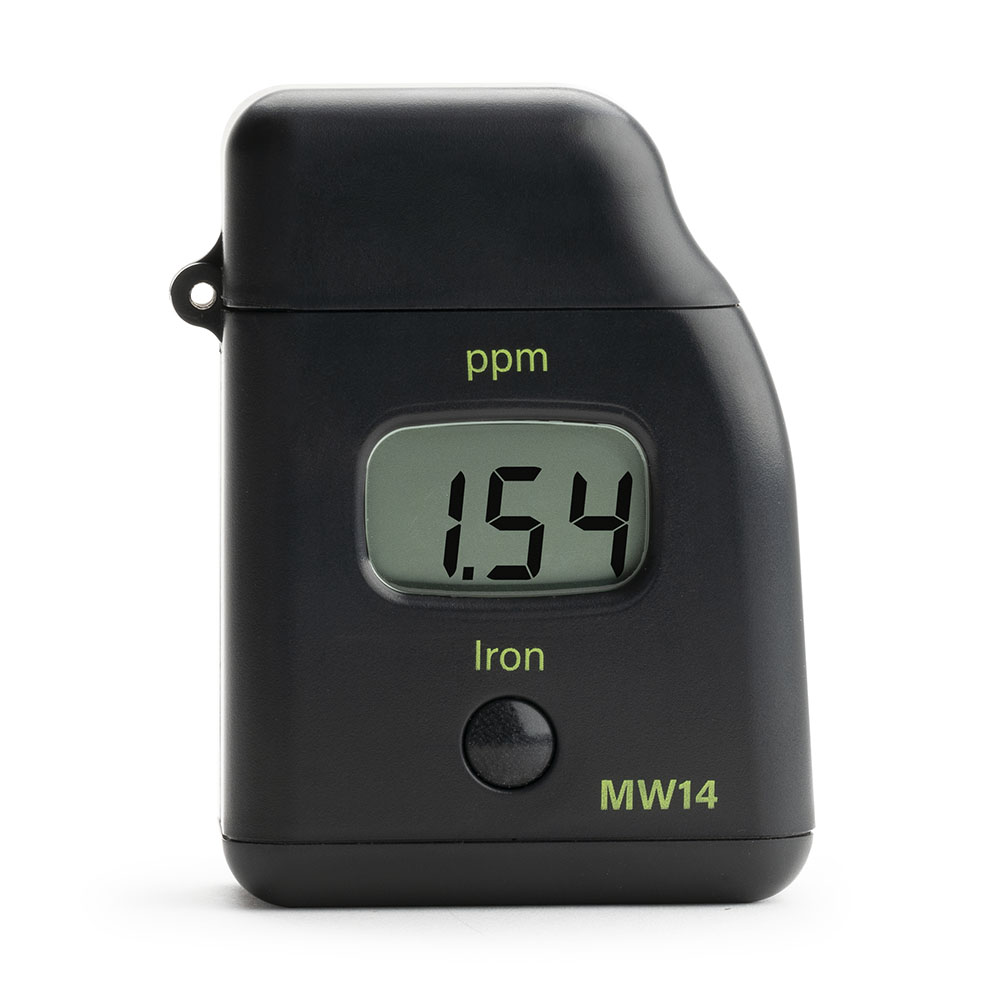

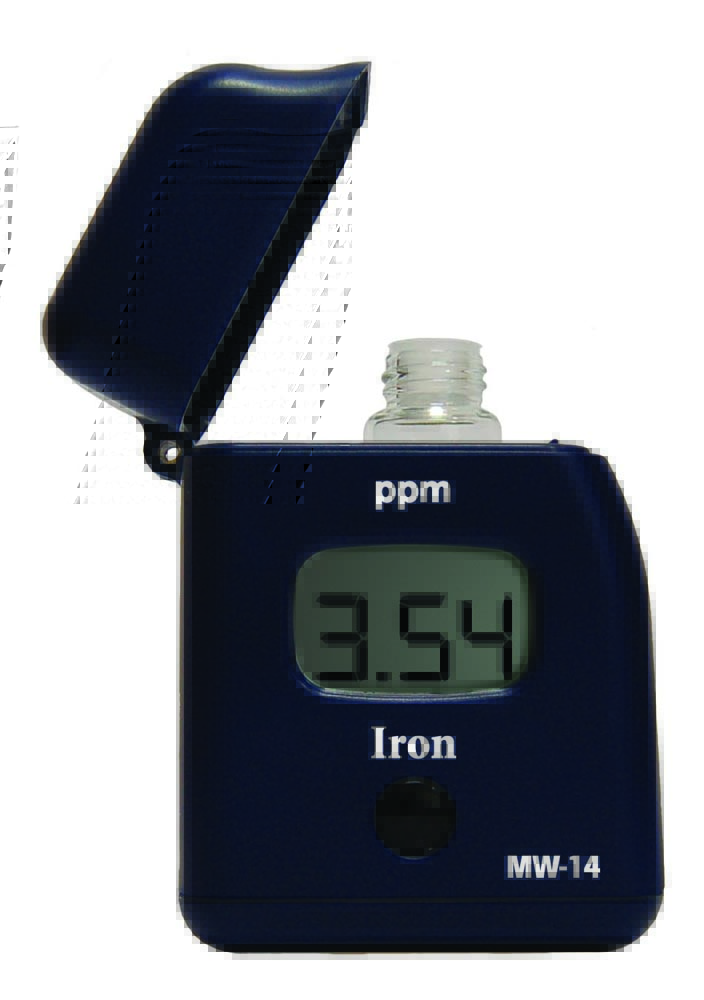

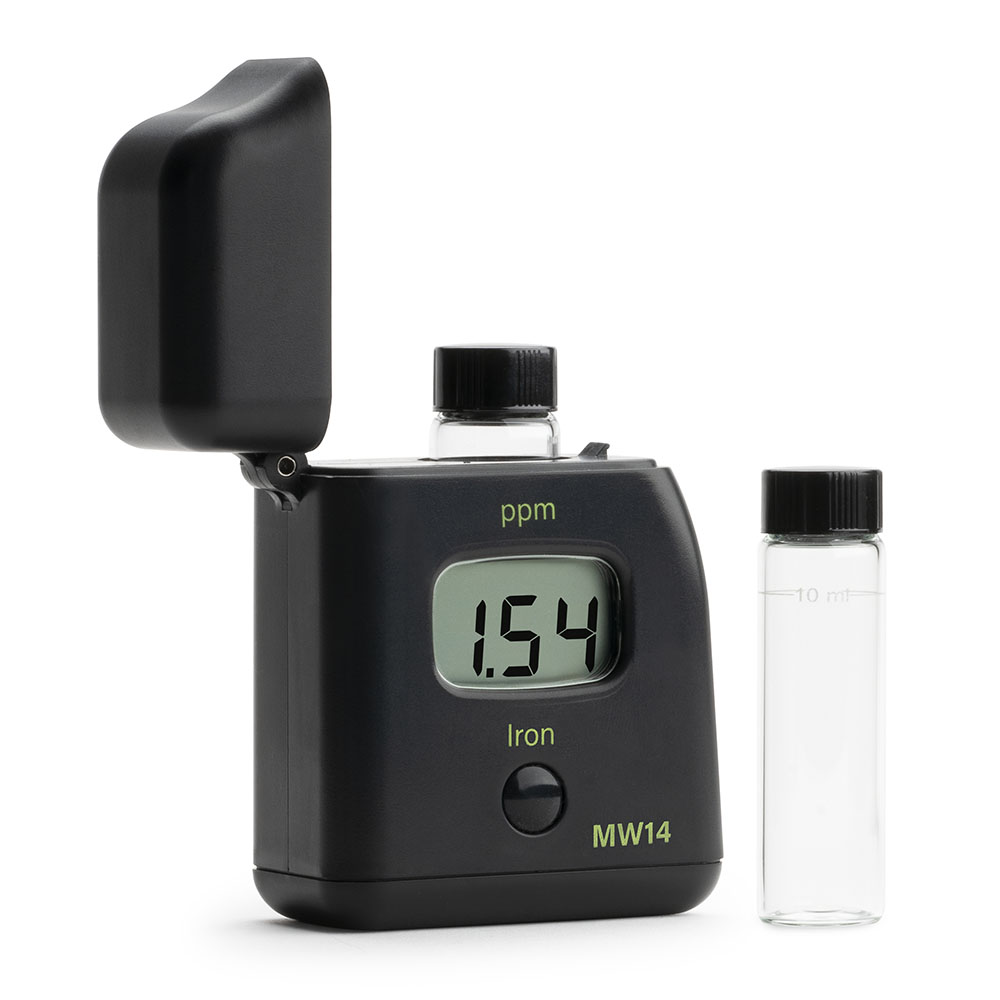

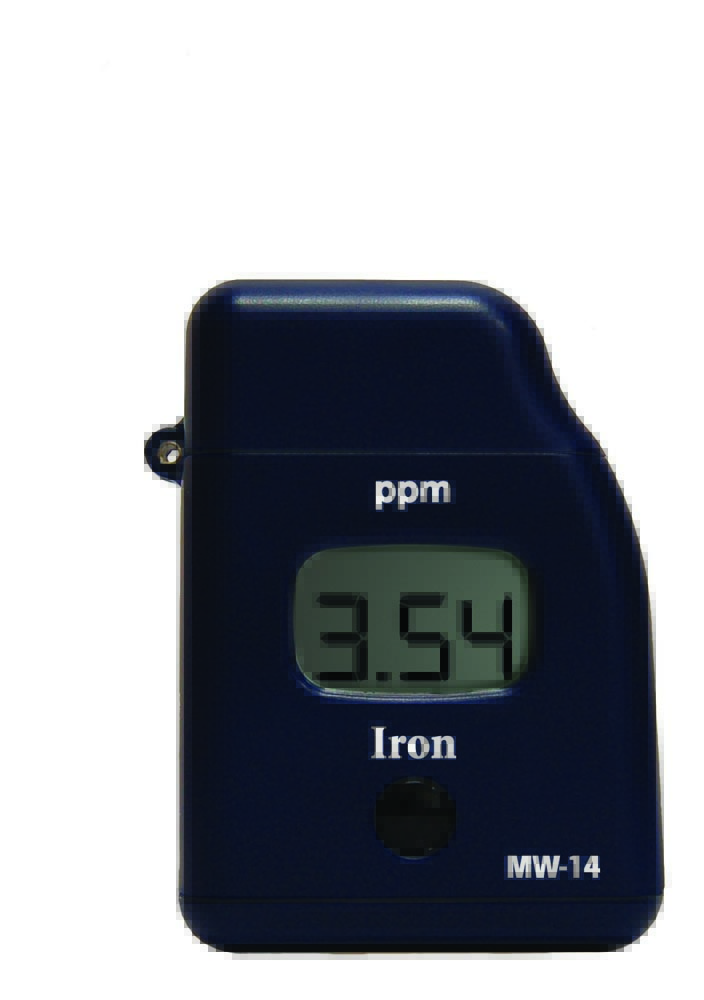

Milwaukee MW14 Iron (High Range) Mini-Colorimeter

Milwaukee MW14 Iron (High Range) Mini-Colorimeter

$73.00

MW14 Iron (High Range) Mini-Colorimeter by Milwaukee

The revolutionary new range of Milwaukee handy photometers are compact and easy to use, have a modern design, and measure Free Chlorine (MW10); Total Chlorine (MW11); Phosphate (MW12); Iodine (MW13) and Iron (MW14). Their main advantages are the small size, and the real simplicity when doing measurements on the spot. Within a few minutes you can get the required result on the LCD and the instrument directly displays the concentration of the specific component in ppm. The meter automatically turns off after 2 minutes in order to save the battery.They work exactly the same way as the other Milwaukee photometers:

When specific reagents are added, the water sample takes on a degree of coloration that is proportional to the concentration of the parameter being measured. The photometer measures this coloration. When a light beam passes through the coloured sample, energy with a specific wavelength is absorbed by the test substance. The photometer determines the coloration of the sample by measuring the transmission or absorption of light of this wavelength. The photometer then uses a microprocessor to calculate the concentration and displays the result.

The field of application is really wide including agriculture, drinking water analyses, aquariums, swimming pools or fish farms. As a result of this versatility and the affordable price it is undoubtedly worth using these products.

Range 0.00 to 5.00 ppm
Resolution 0.01 ppm
Accuracy (@ 25°C) ±0.04 ppm ±2% of reading
Typical EMC Dev. ±0.01 ppm
Light Source Light Emitting Diode @ 525 nm
Light Detector Silicon Photocell
Method Adaptation of the EPA Phenantroline method 315B, for natural and treated waters. The reaction between iron and reagent causes an orange tint in the sample.
Environment 0 to 50°C (32 to 122 °F) max.
95% RH non-condensing
Battery Type 1 x 1.5V AAA
Auto-Shut Off After 2 minutes of non-use
Dimensions 81.5 x 61 x 37.5 mm
(3.2 x 2.4 x 1.5")
Weight 64 g (2.25 oz.)
